Heater Control Disassembly and Reassembly








DISASSEMBLY

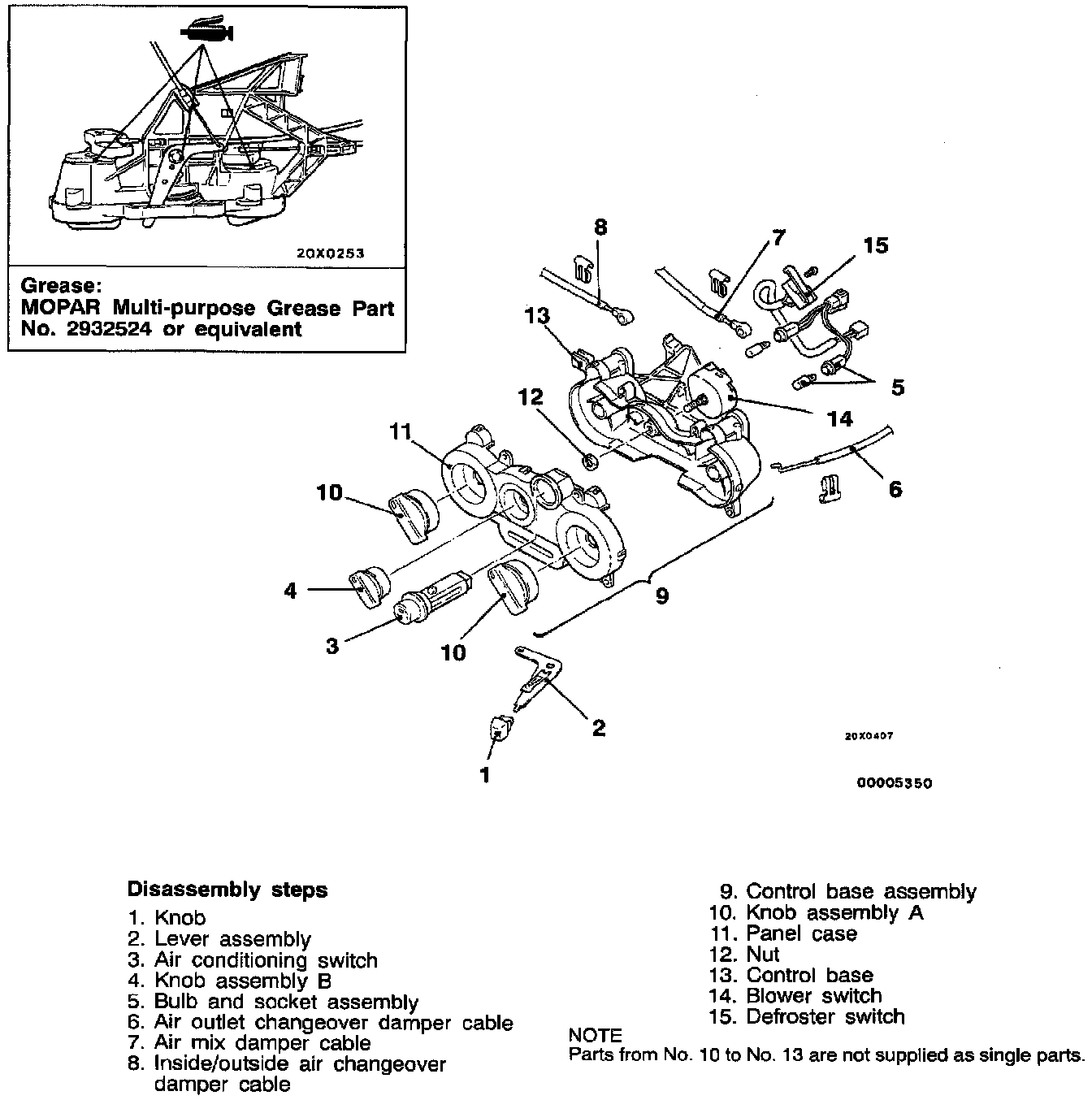

For disassembly follow steps in image noting the following:

Steps 6,7 & 8
Air Outlet Changeover Damper Cable/Air Mixing Damper Cable/Inside/Outside Air Changeover Damper Cable Removal
Insert a flat-tipped screwdriver to disengage the claws, and then remove the cables.
