Connector Information

CAUTION: Not all connectors are serviced. Some connectors are serviced only with a harness. A typical example might be the Supplemental Restraint System connectors. Always check parts availability before attempting a repair.

IDENTIFICATION
In-line connectors are identified by a number, as follows:
- In-line connectors located on the engine compartment harness are C100 series numbers.
- Connectors located on the instrument panel harness are C200 series numbers.
- Connectors located on the body harness are C300 series numbers.
- Jumper harness connectors are C400 series numbers.
- Grounds and ground connectors are identified with a "G" and follow the same series numbering as the in-line connector.

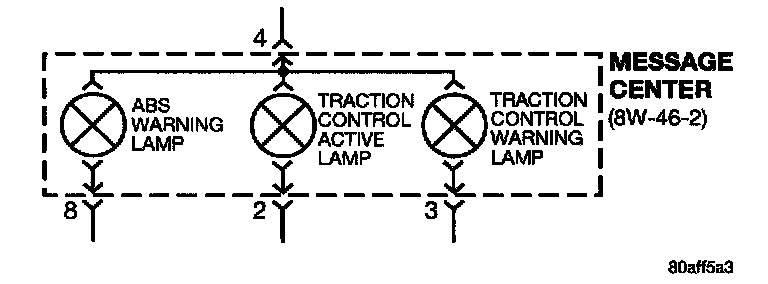

Component Identification:




Component connectors are identified by the component name instead of a number.

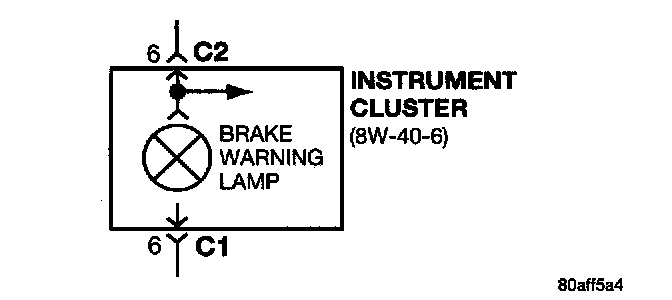

Connector Identification:




Multiple connectors on a component use a C1, C2, etc. identifier.
