Main Relay (Computer/Fuel System): Locations

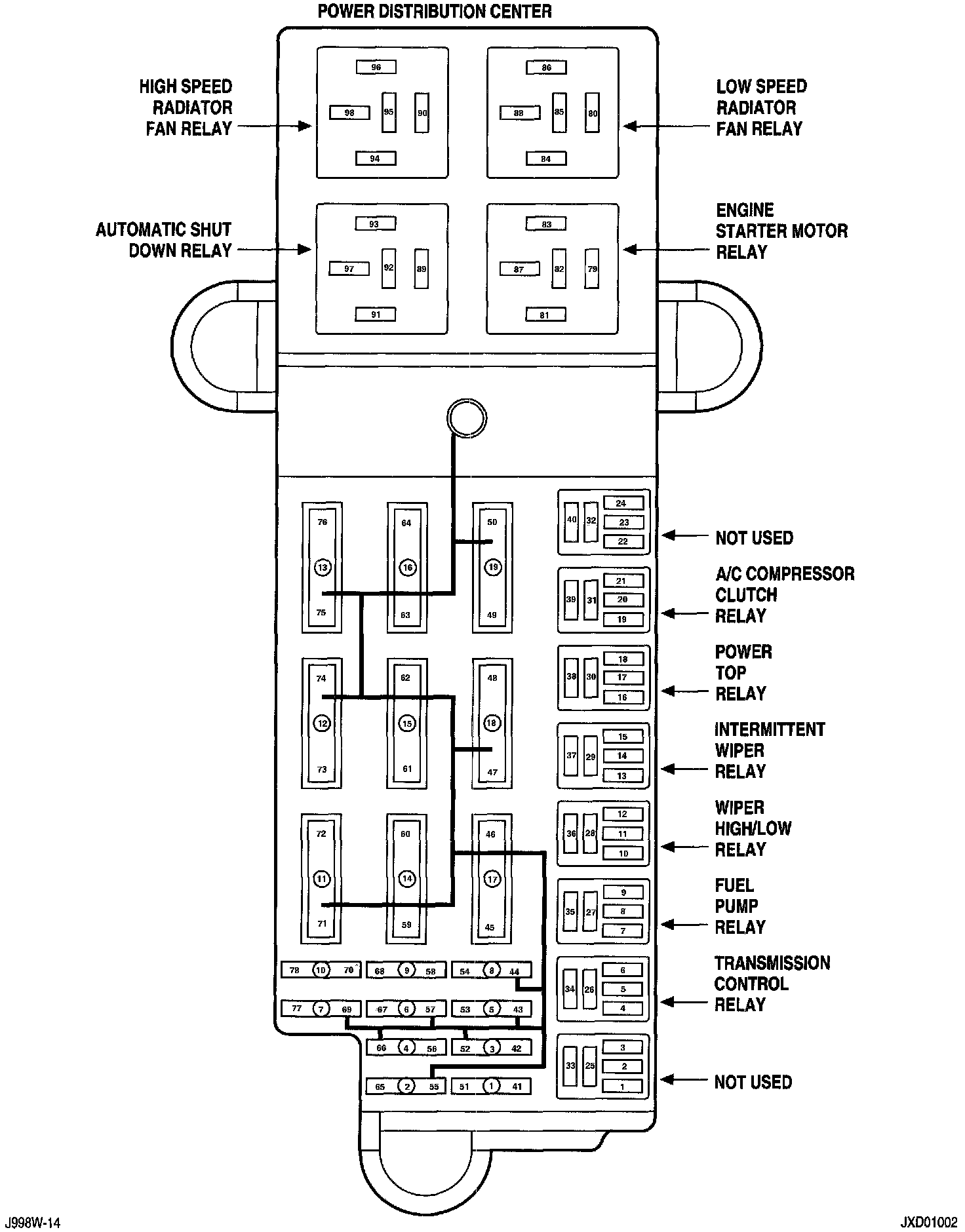

Power Distribution Center (PDC):




Power Distribution 8w-10-2:




The relay is located in the Power Distribution Center (PDC).
