Power Window Control Module: Service and Repair

REMOVAL

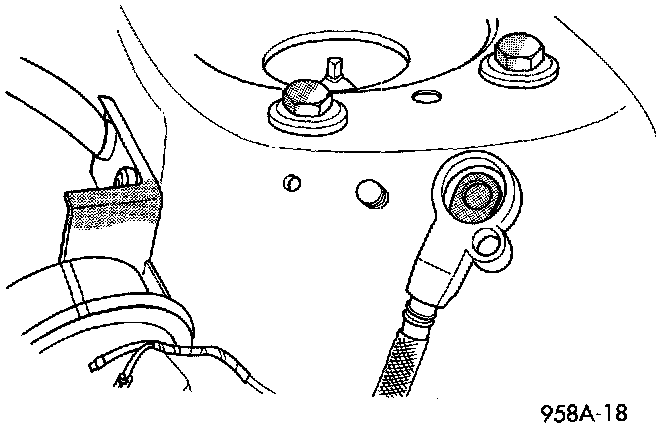

Battery Negative Remote Cable Removal:

1. Disconnect and isolate the battery negative remote cable.
2. Remove door trim panel.

Window Drop Relay Assembly:

3. Disconnect the wire connectors.
4. Remove the attaching screws.
5. Remove relay assembly.

INSTALLATION
For installation, reverse the above procedures.
