Power Distribution Module: Locations

Power Distribution Center:

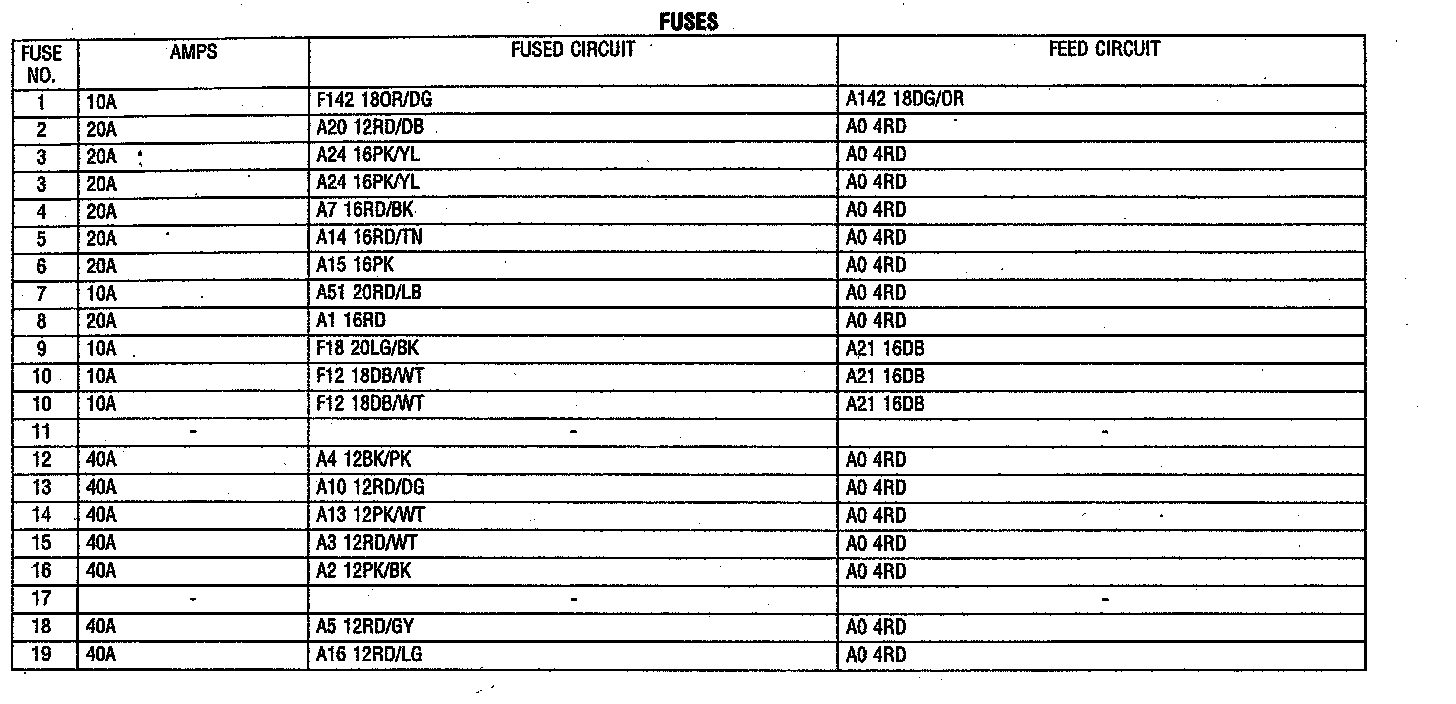

Power Distribution Center Details (Part 1 Of 2):




Power Distribution Center Details (Part 2 Of 2):

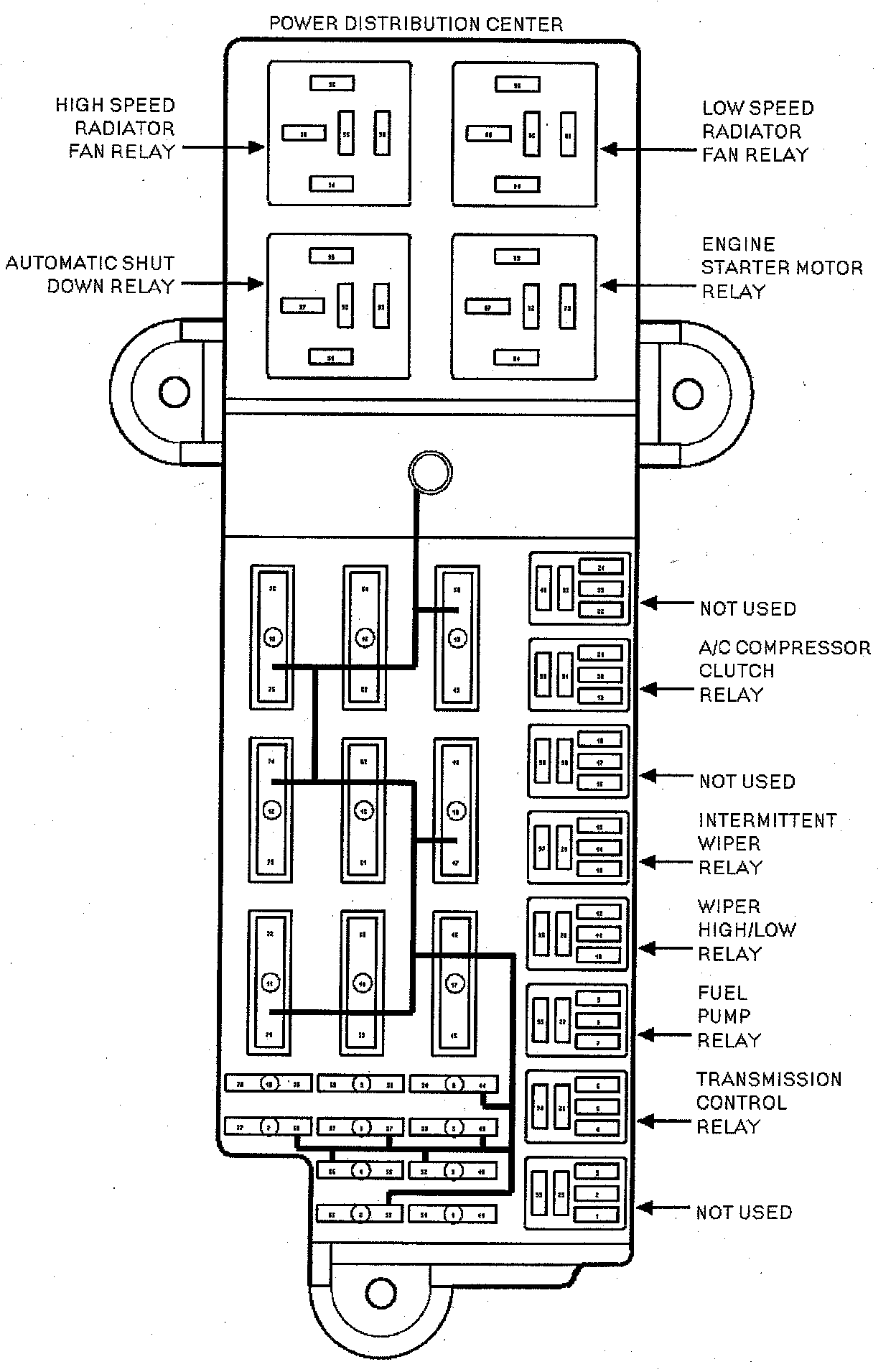

Power Distribution Center
