Air Bag Control Module: Locations

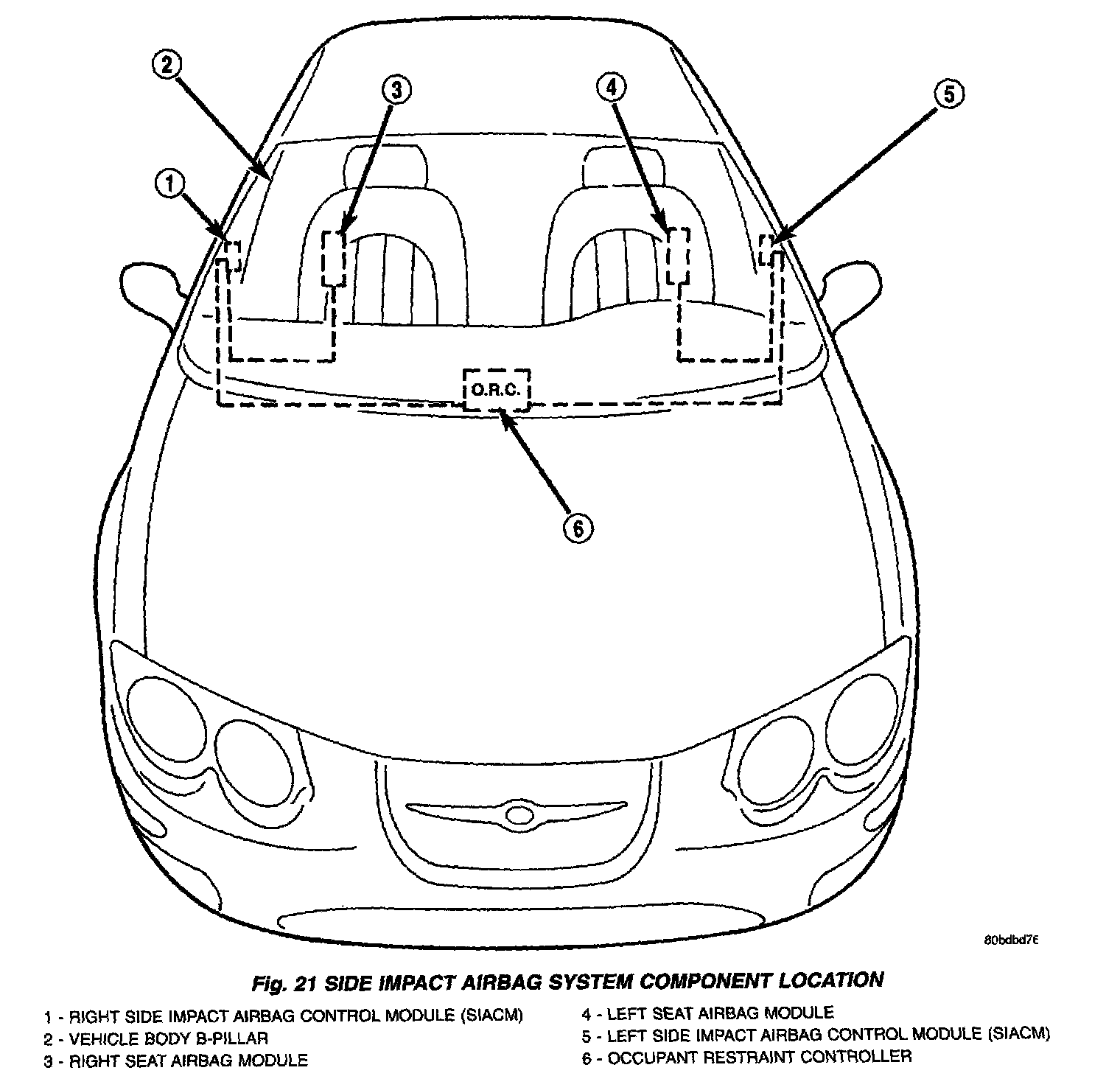

Fig.21 Side Impact Airbag System Component Location:

Fig.20 SIACM Position/Orientation:

SIDE IMPACT AIRBAG CONTROL MODULES (SIACM)
The 2001 LH uses two identical side impact airbag control modules (SIACM) that share the same part number. They are located on the left and right B-post with the connector pointed forward.

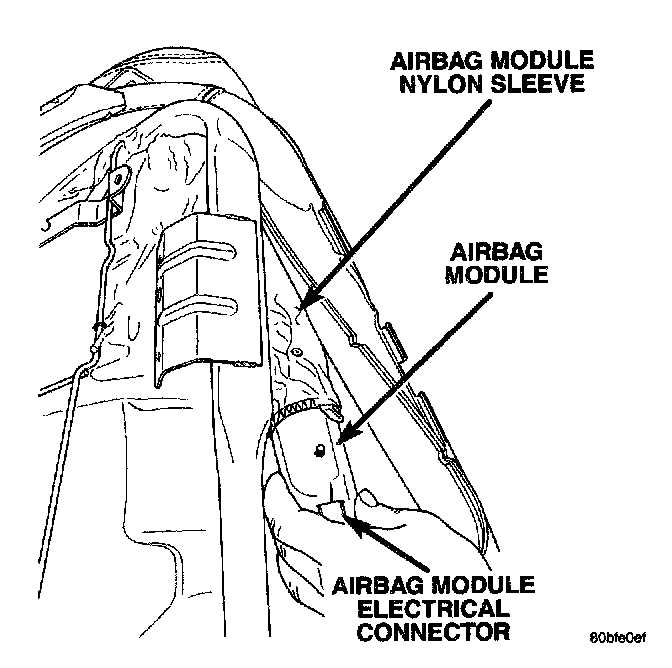

SEAT AIRBAG MODULE
The Left and Right seat airbag modules are located in the outboard end of the front seat backs.
