Battery Testing

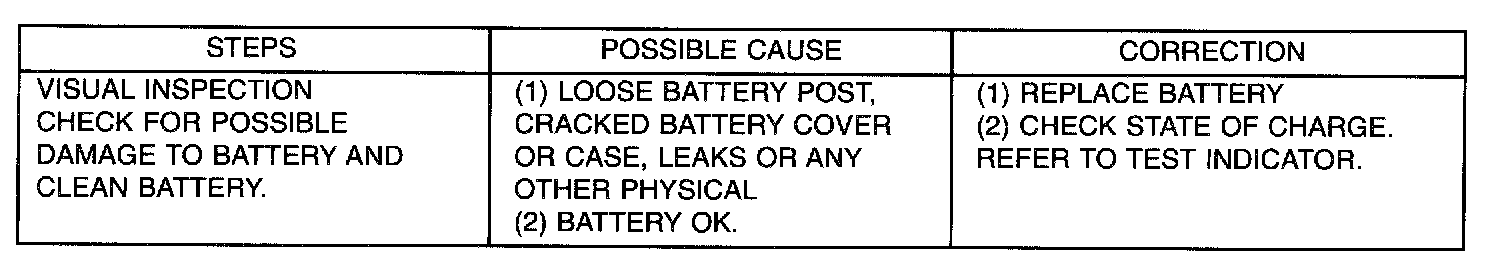

Battery Diagnostic Chart (Part 1 Of 2):

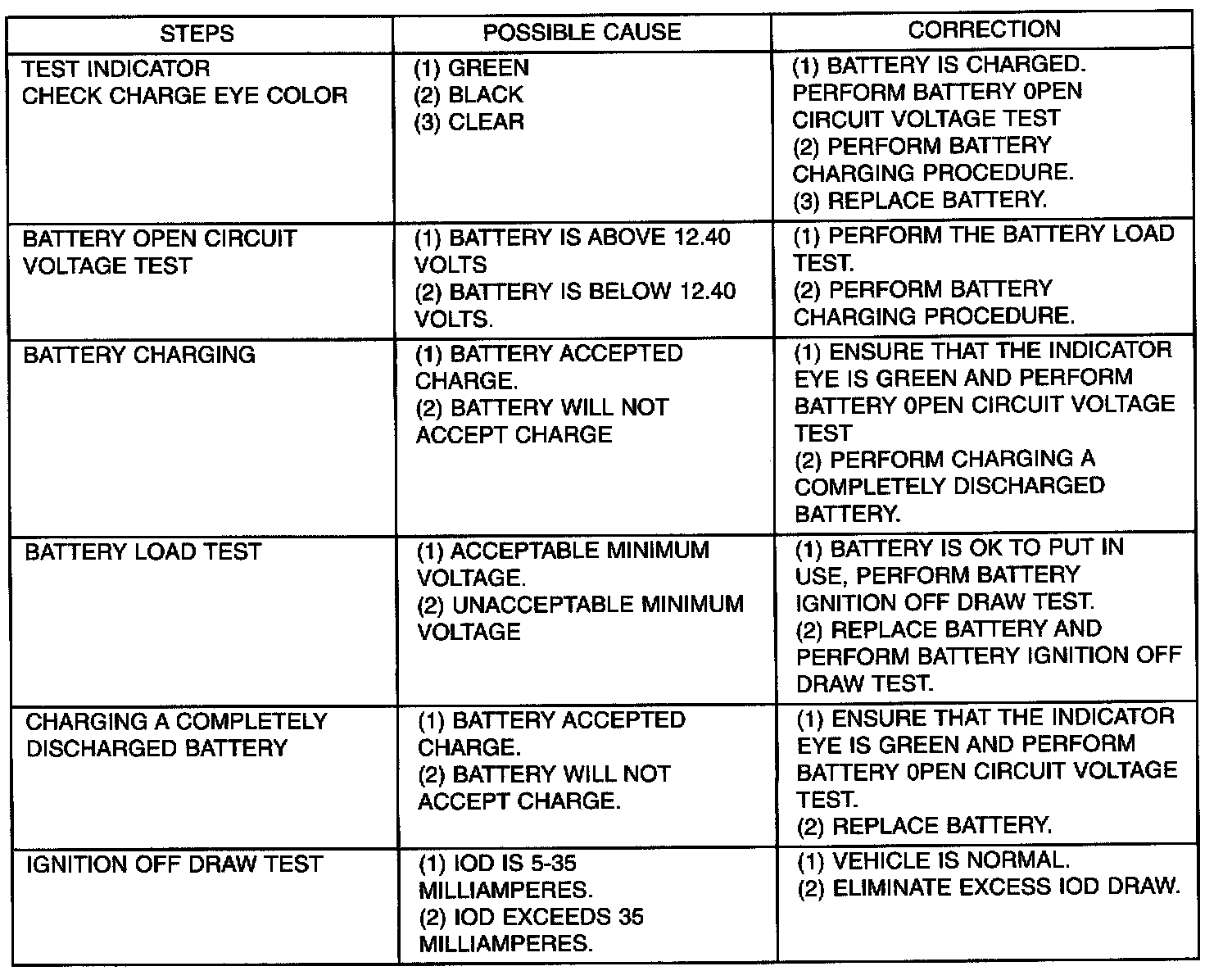

Battery Diagnostic Chart (Part 2 Of 2):

To test battery, refer to the Battery Diagnosis and Testing table and to the proper procedures.
