Removal & Installation

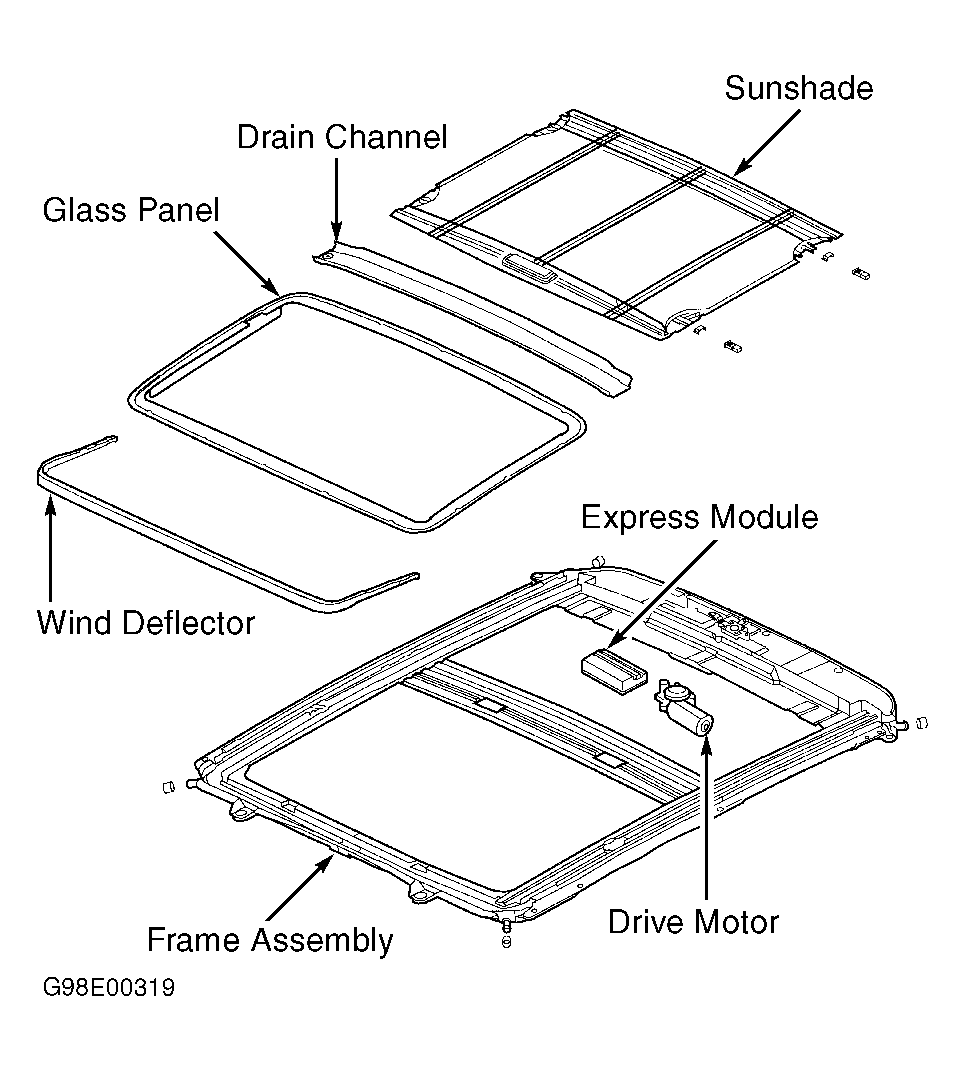

Close glass panel. Lower headliner as necessary to access module. See HEADLINER  . See Figure . Disconnect wiring harness connector from sun roof express module. Remove module screw. Slide sun roof express module toward center of car to remove. To install, reverse removal procedure.
