Steering Column Cover Reinforcement: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Place steering column cover reinforcement in position.
- Connect diagnostic connector to the steering column cover reinforcement.

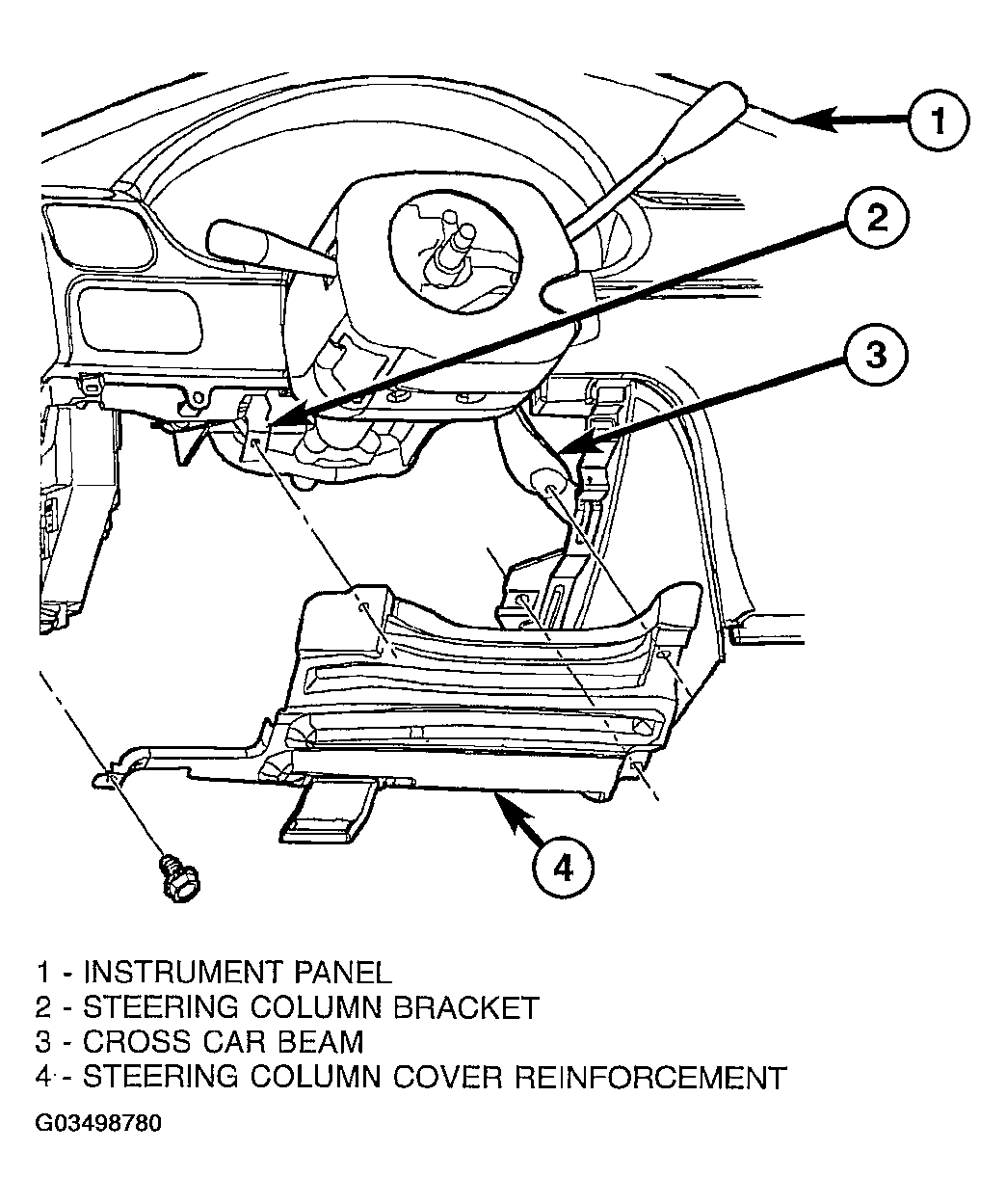

- Install the four bolts attaching steering column cover reinforcement (Figure ).
- Install steering column cover (Refer to STEERING COLUMN COVER ).
