Engine 2.7L: Description

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, and 2003 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

The 2.7 Liter (167 Cubic Inches) 60 degree V-6 engine is a double overhead camshaft design with hydraulic lifters and four valves per cylinder (Fig 1). The engine does not have provisions for a free wheeling valve train.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered (Fig 2). The firing order is 1-2-3-4-5-6.

The engine identification number is located on the rear of the cylinder block just below the left cylinder head (Fig 3)

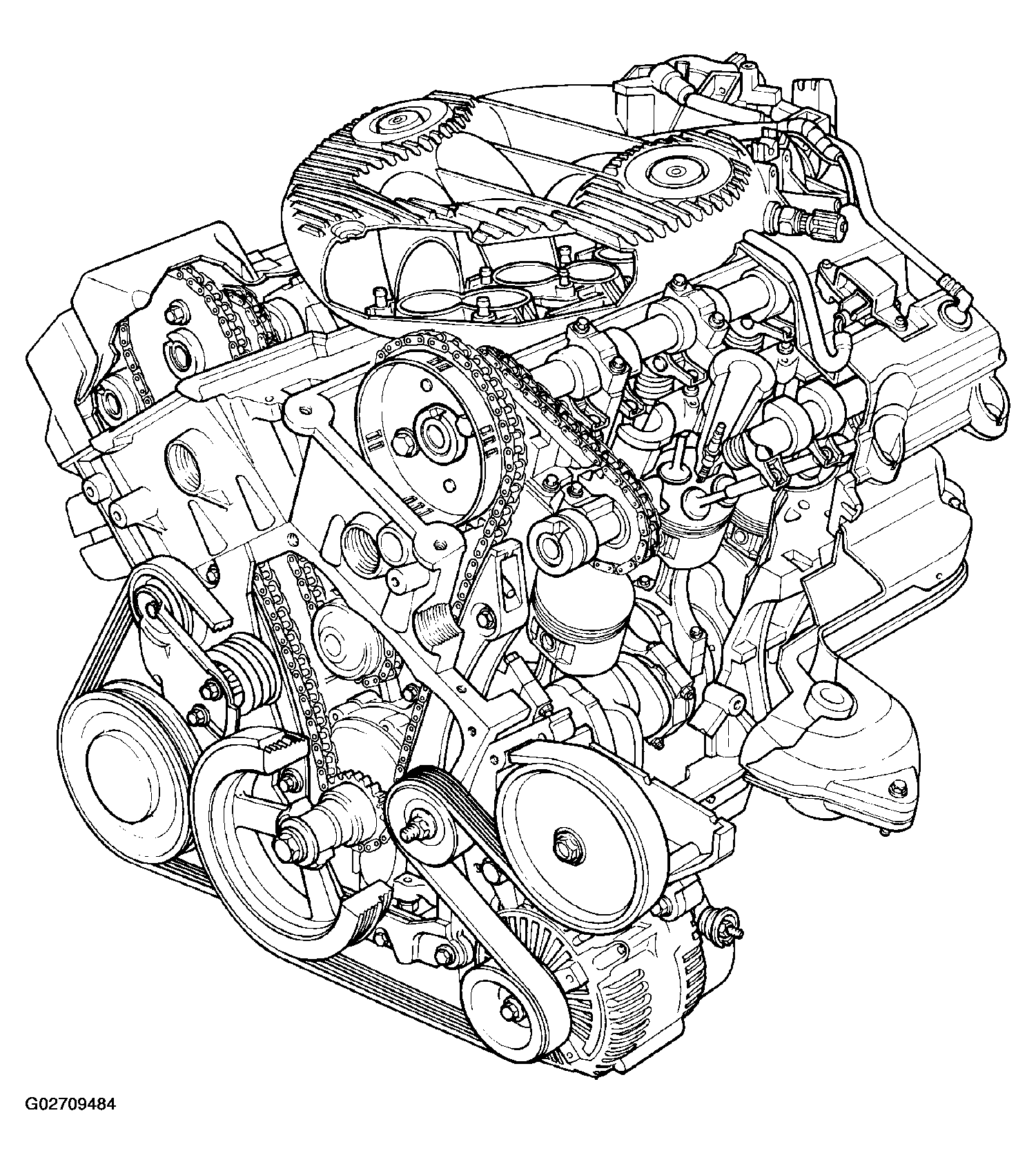

Fig 1: Identifying 2.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.

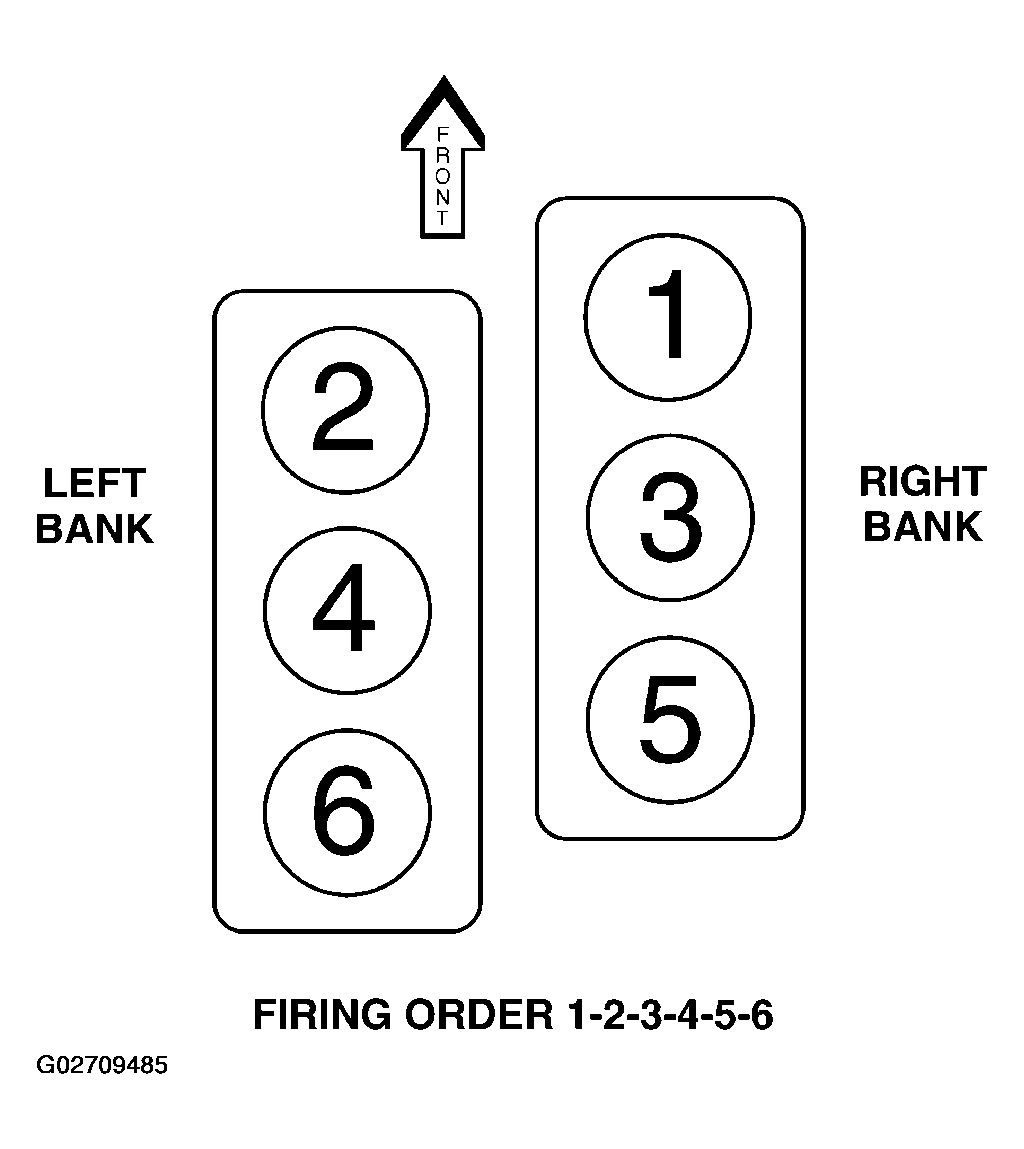

Fig 2: Identifying Engine Firing Order

Courtesy of DAIMLERCHRYSLER CORP.

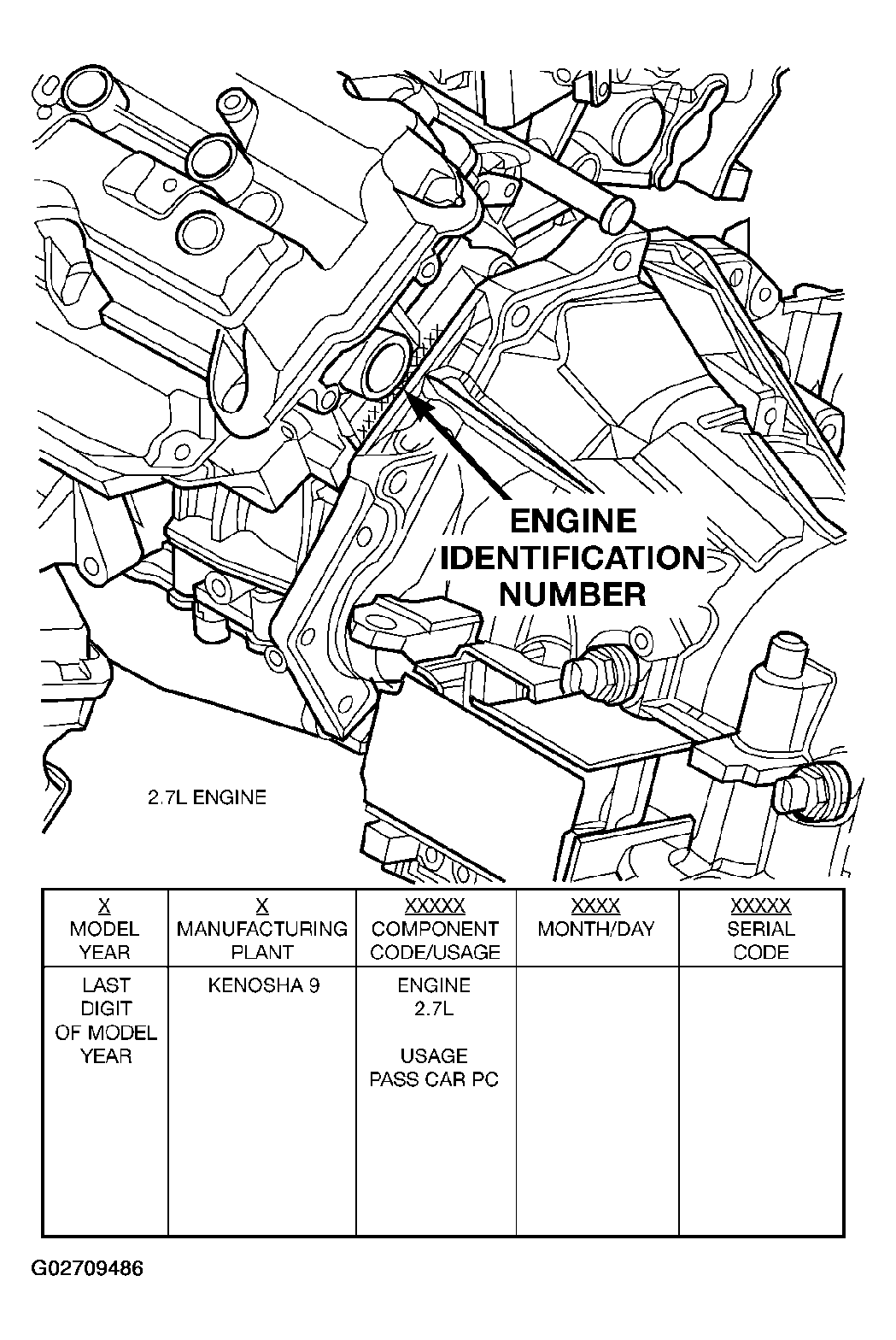

Fig 3: Identifying Engine Identification Number

Courtesy of DAIMLERCHRYSLER CORP.
