Engine Block: Description
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

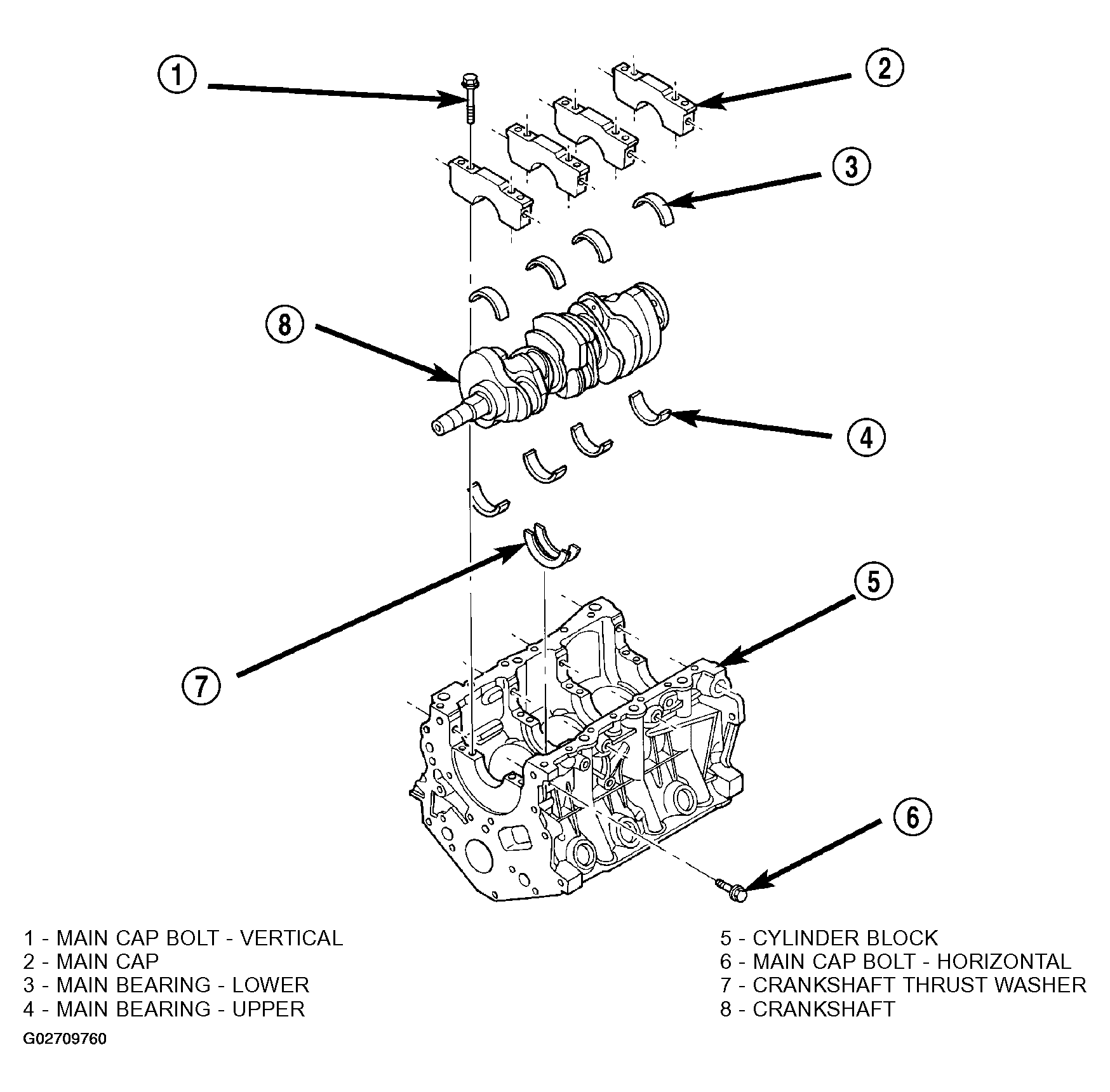

The cylinder block (Fig 1) is made of heat treated aluminum with cast-in-place iron liners. The block is a closed deck design with the right bank forward. To provide high rigidity and improved NVH, the block has cast-in contours and ribs, along with powdered metal 6 bolt main caps (4 vertical, 2 horizontal), with a die cast aluminum structural beam windage tray mounted to the main caps.
