Oil Pan: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a 1/8 inch bead of Mopar® Engine RTV GEN II at the parting line of the oil pump housing and the rear seal retainer (Fig 1).

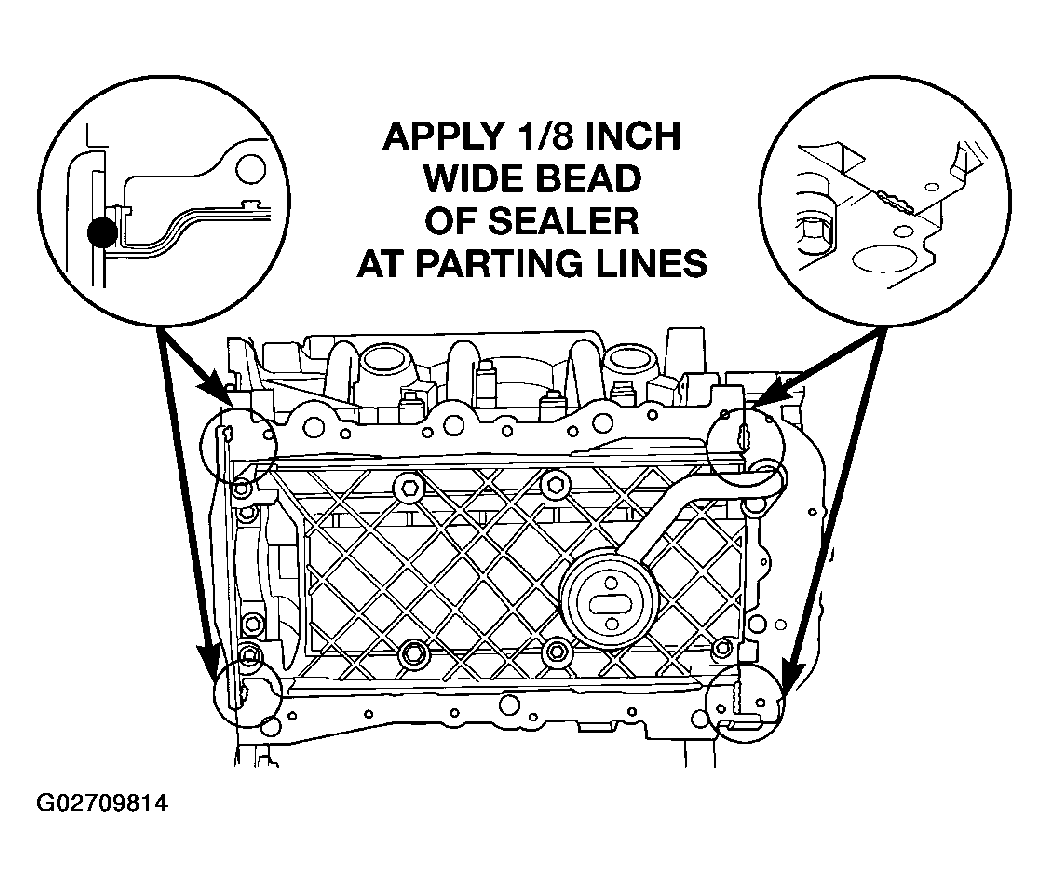

    Fig 1: Identifying Oil Pan Sealing
    G02709814Courtesy of DAIMLERCHRYSLER CORP.
  2. Install oil pan gasket to the engine block.

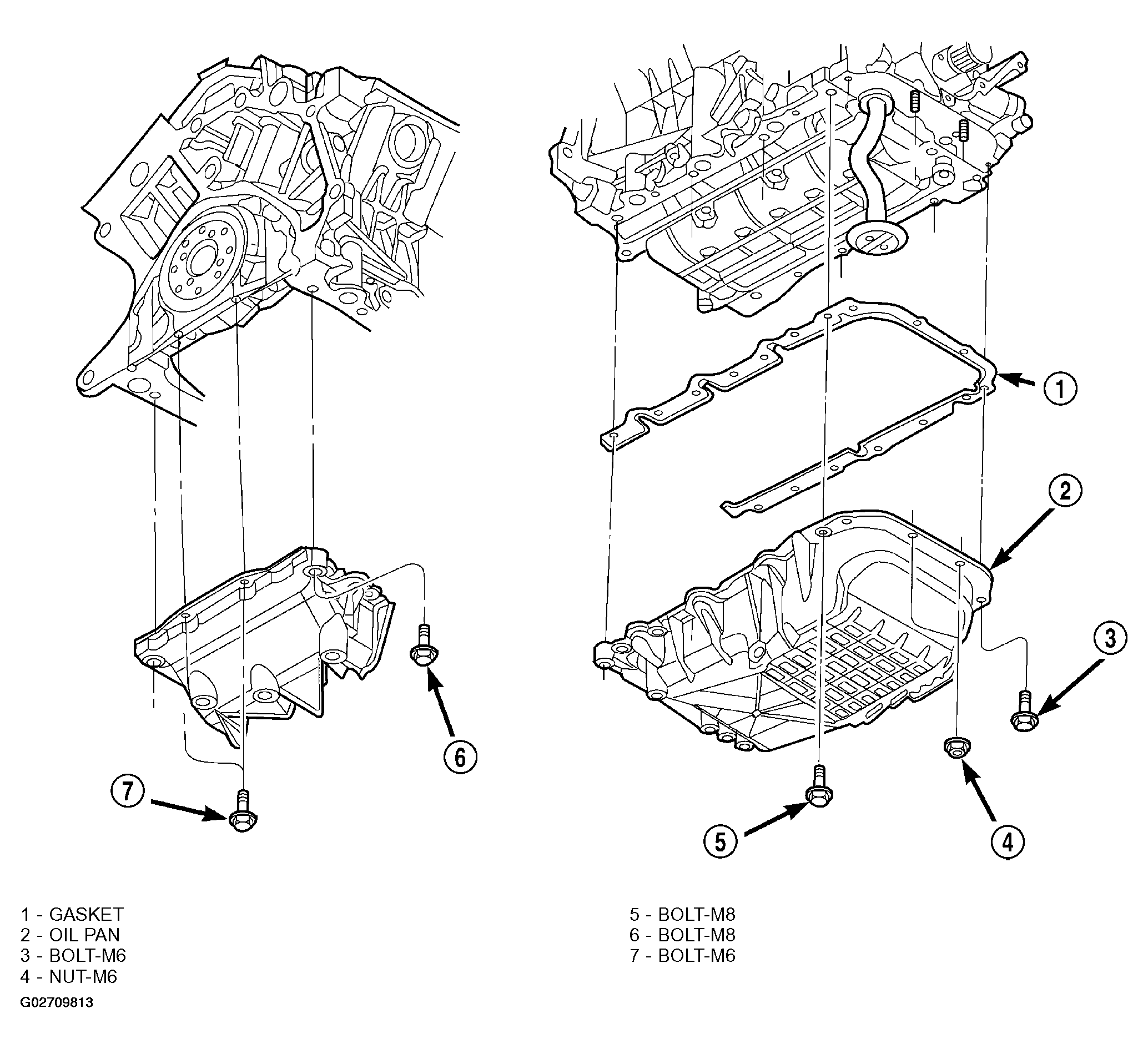

  3. Install pan and attaching fasteners (Figure).

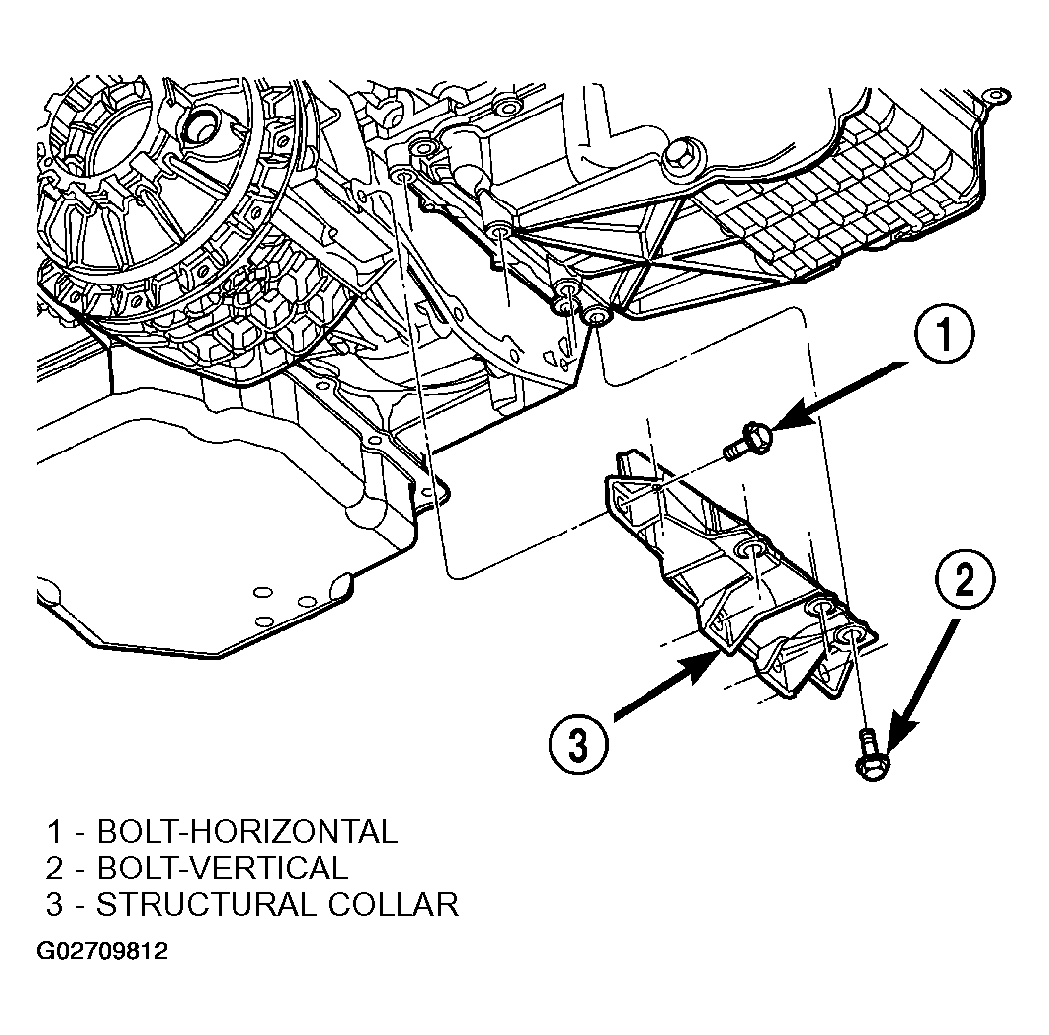

  4. Install the structural collar (Figure), using the follow procedure:
    1. Install the vertical  collar to oil pan bolts. Pretorque bolts to 1.1 N.m (10 in. lbs.).
    2. Install the horizontal  collar to transmission bolts and tighten to 55 N.m (40 ft. lbs.).
    3. Starting with center vertical bolts and working outward, final torque all bolts to 55 N.m (40 ft. lbs.).
  5. Lower vehicle and install dipstick and tube.
  6. Fill engine crankcase with proper oil to correct level.
  7. Connect negative cable.
