Oil Pressure Switch: Installation
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Apply Mopar® Thread Sealant to the switch threads.

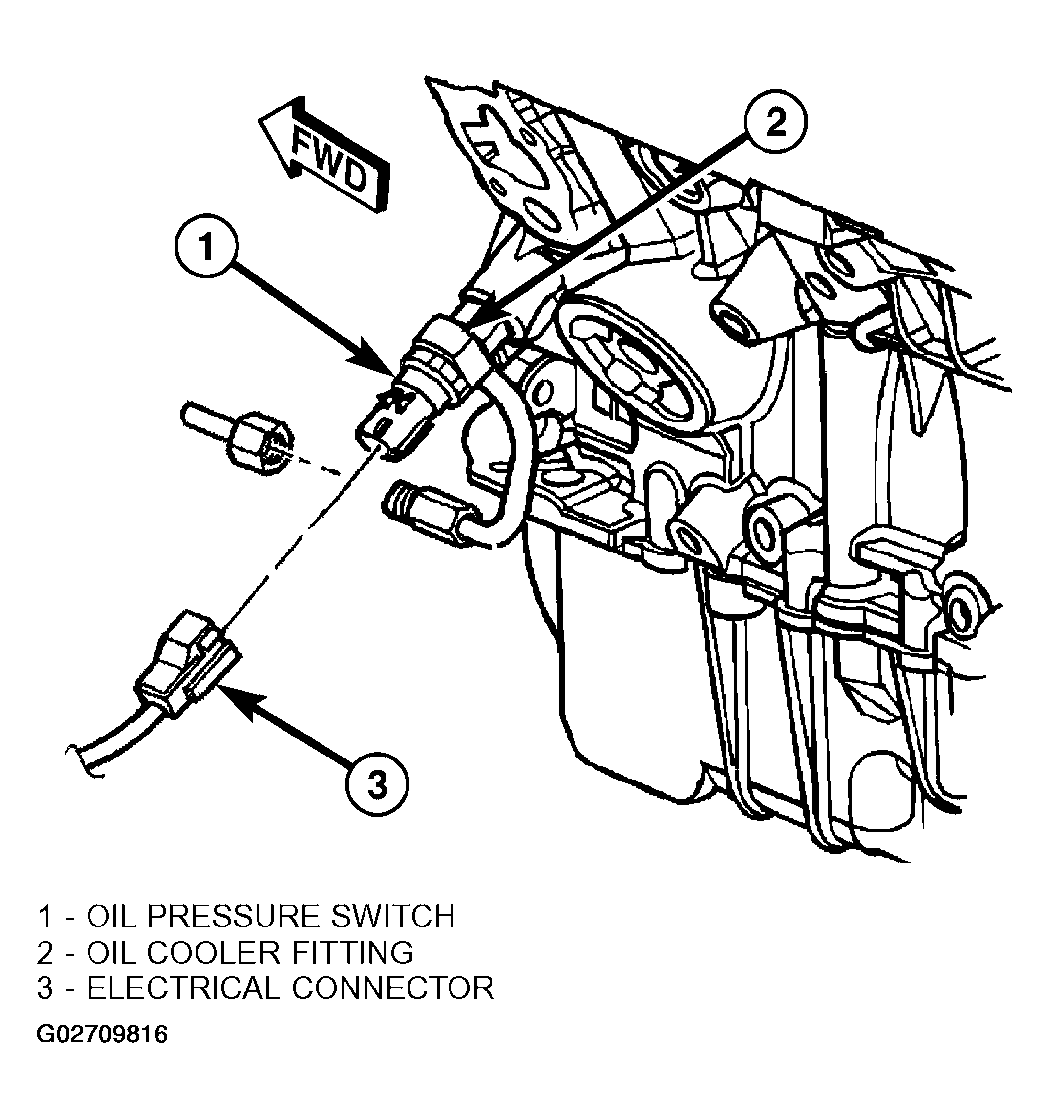

- Install oil pressure switch to fitting (Figure).
- Hold oil cooler fitting with a wrench and tighten oil pressure switch.
- Connect electrical connector (Figure).
- Lower vehicle.
- Start engine and check for leaks.
- Check engine oil level and adjust as necessary.
