Standard Procedure - Engine Oil Level Check

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The best time to check engine oil level is after it has sat overnight, or if the engine has been running, allow the engine to be shut off for at least 5 minutes before checking oil level.

Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level reading (Fig 1). Add only when the level is at or below the ADD mark.

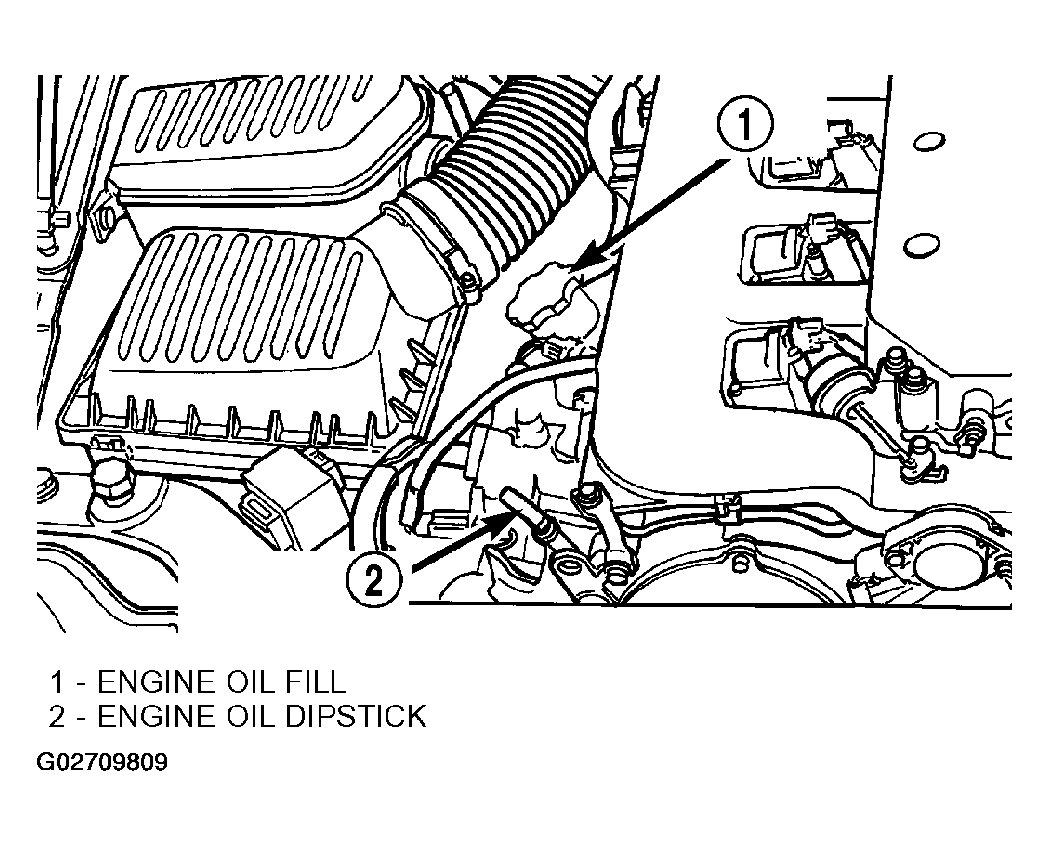

Fig 1: Identifying Engine Oil Fill And Dipstick
G02709809Courtesy of DAIMLERCHRYSLER CORP.
