Valve Timing: Description
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

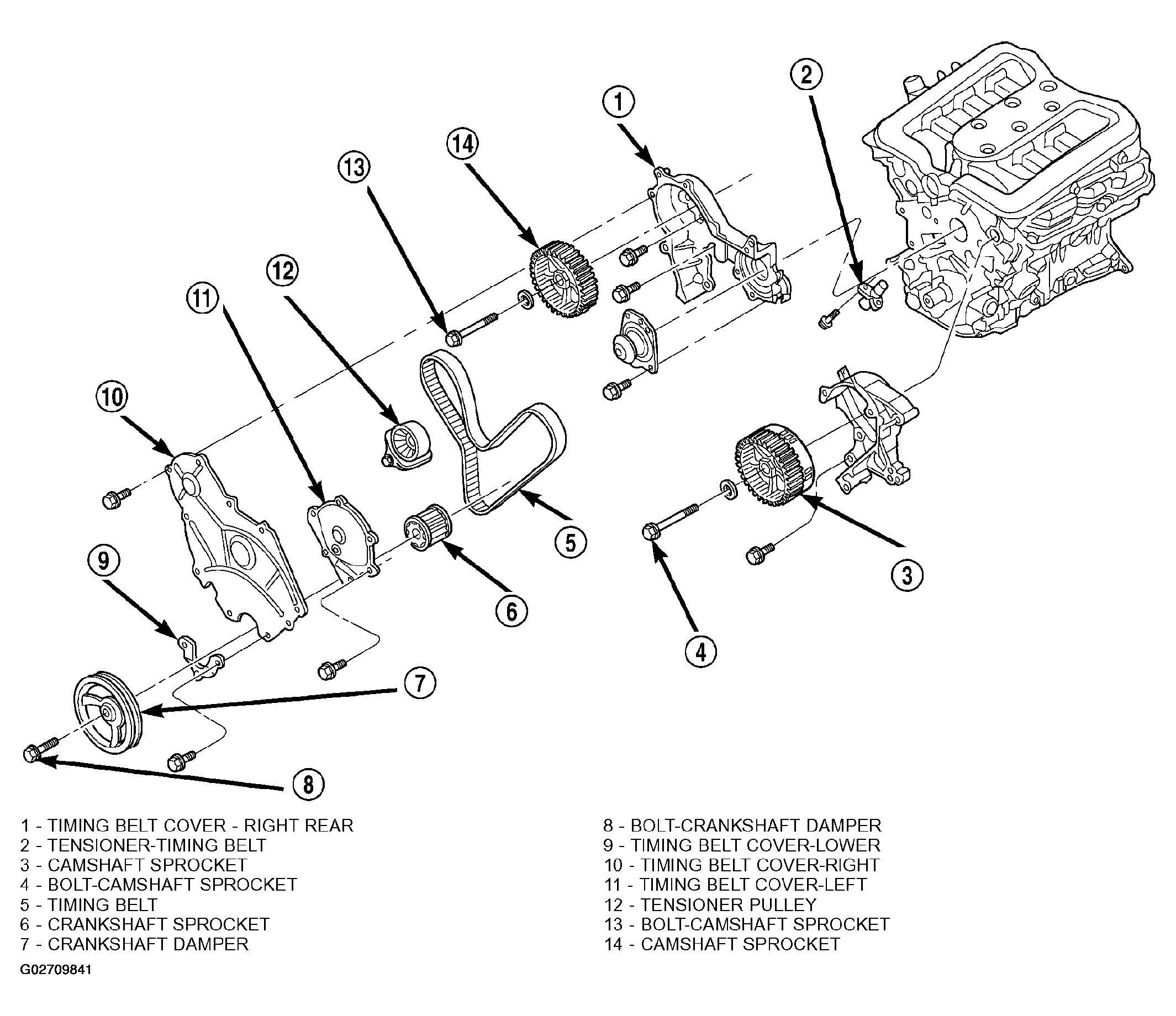

The timing drive system (Fig 1) has been designed to provide quiet performance and reliability to support a NON free-wheeling engine.
The timing drive components include a crankshaft sprocket, camshaft sprockets, tensioner pulley, hydraulic tensioner and a timing belt. The water pump is driven by the back side of the timing belt. The right and left camshaft sprockets are not interchangeable because of the cam sensor pick-up wheel on the left sprocket.
