Cruise Control Servo: Service and Repair

REMOVAL

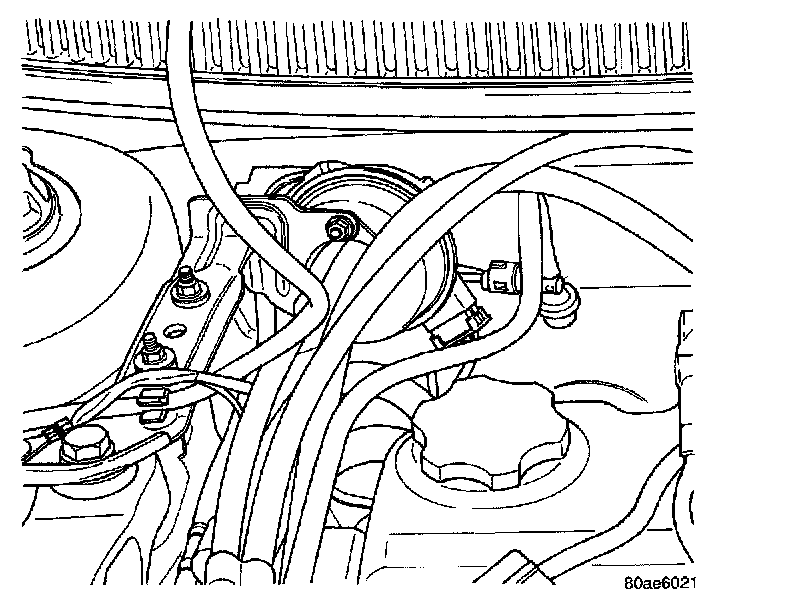

Speed Control Servo:

1. Disconnect electrical connector from servo.
2. Disconnect vacuum hose from servo
3. Remove 2 nuts retaining cable to servo.
4. Remove retaining clip pin holding cable to servo.

INSTALLATION
1. Install retaining clip to cable at servo.
2. Install 2 nuts at cable to servo and servo bracket, tighten to 7 Nm (60 ins. lbs.).
3. Connect electrical connector to servo.
4. Connect vacuum hose to servo
