Cylinder Head

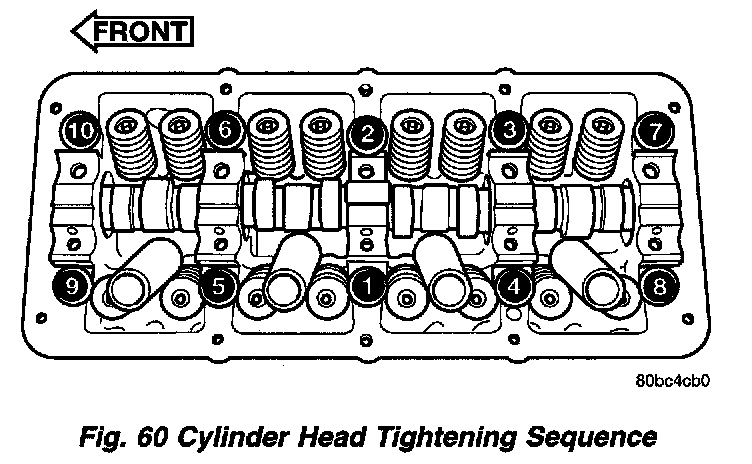

Tighten the cylinder head bolts in the sequence shown in image. Using the 4 step torque method, tighten according to the following values:
- First All to 34 Nm (25 ft. lbs.)
- Second All to 68 Nm (50 ft. lbs.)
- Third All to 68 Nm (50 ft. lbs.)
- Fourth Turn an additional 1/4 Turn. Do not use a torque wrench for this step.
