Power Distribution Module

Power Distribution Center:

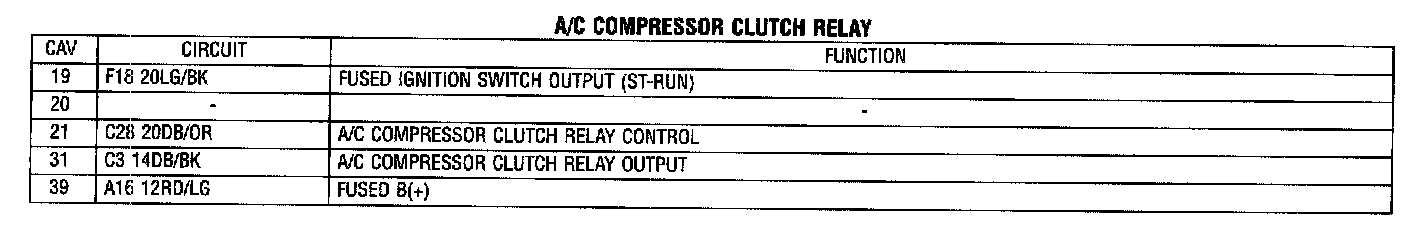

A/C Compressor Clutch Relay:

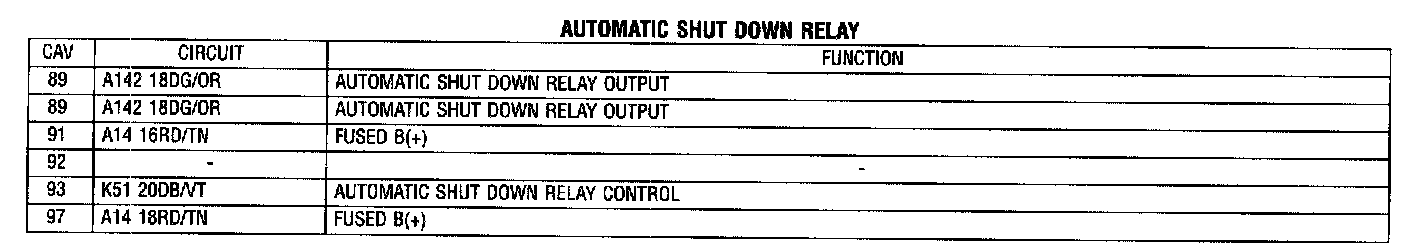

Automatic Shutdown Relay:

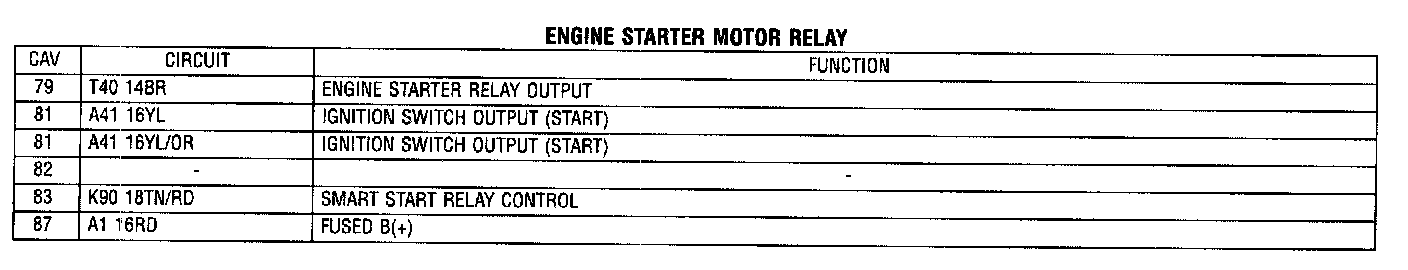

Engine Starter Motor Relay:

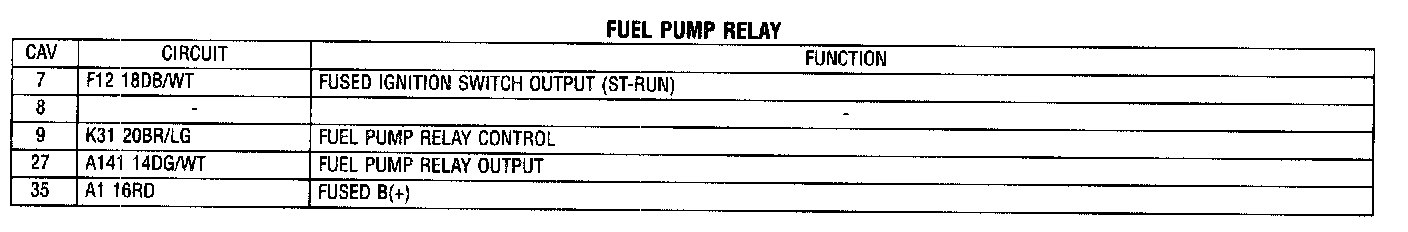

Fuel Pump Relay:

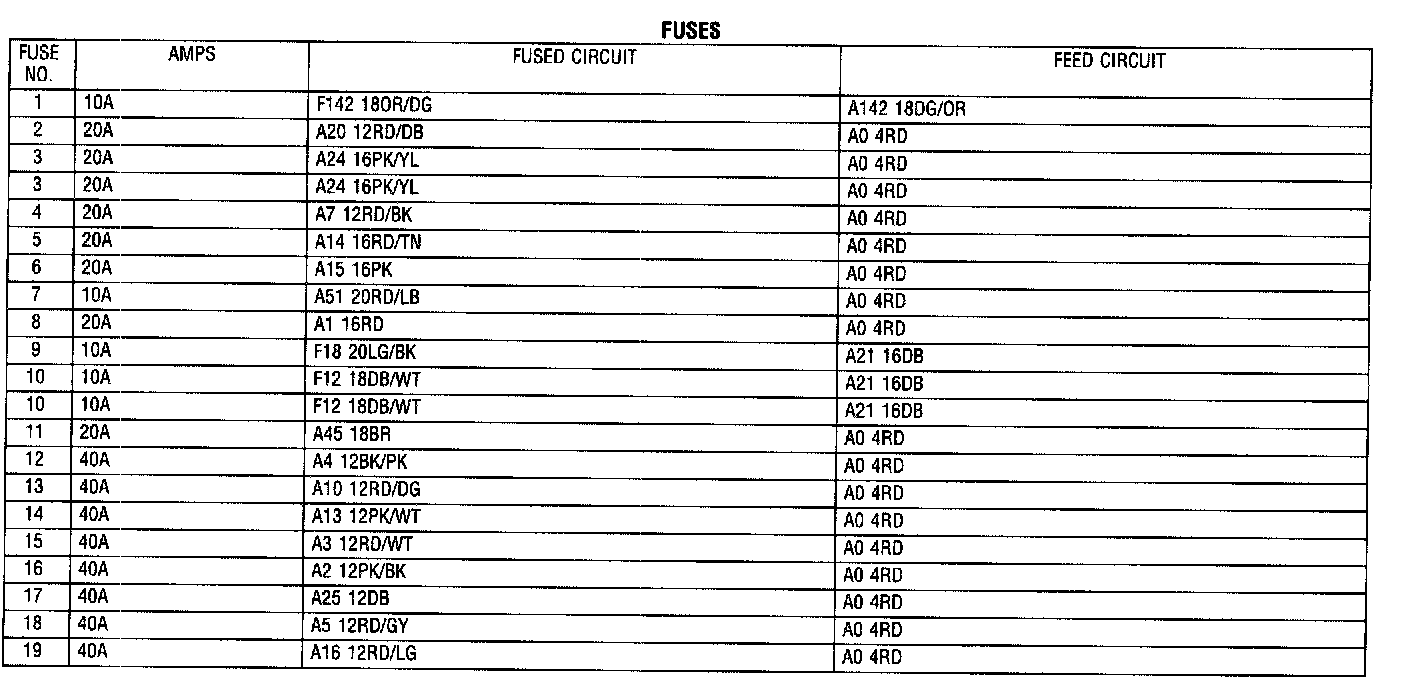

Fuses:

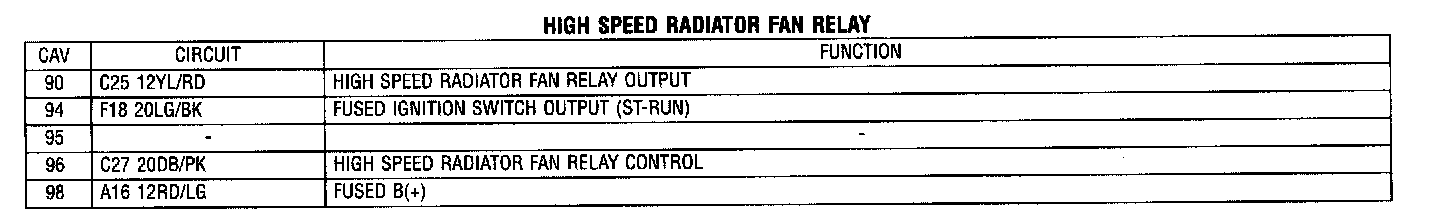

High Speed Radiator Fan Relay:

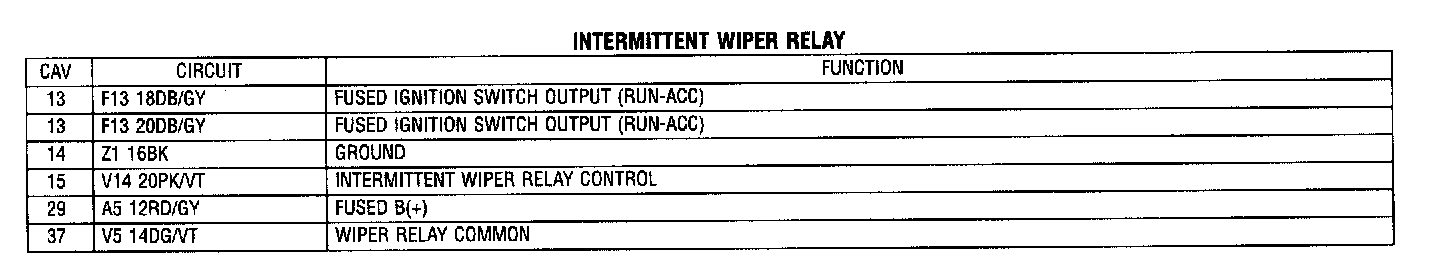

Intermittent Wiper Relay:

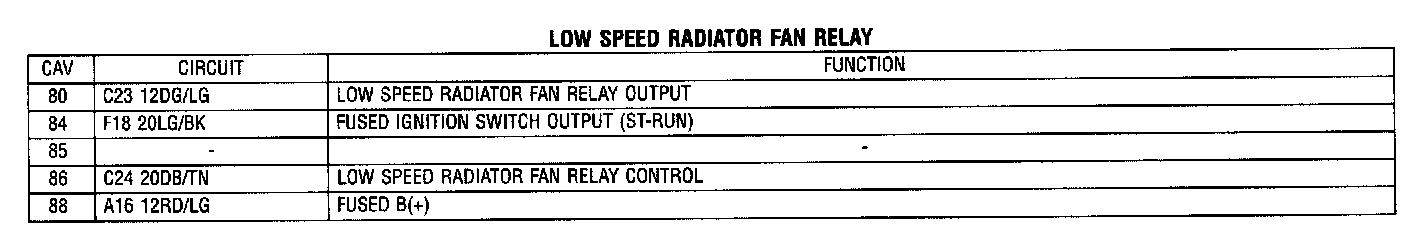

Low Speed Radiator Fan Relay:

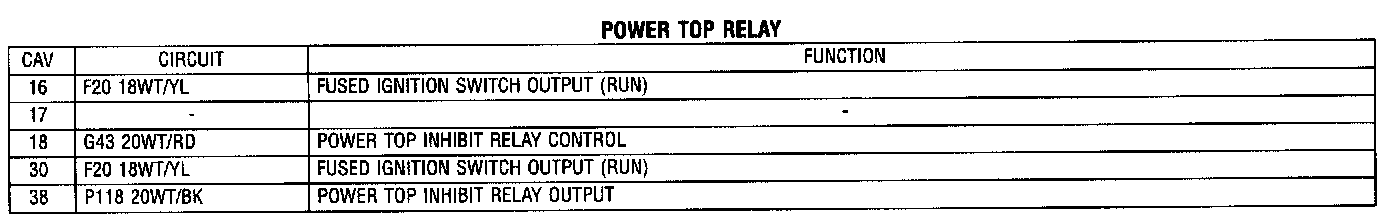

Power Top Relay:

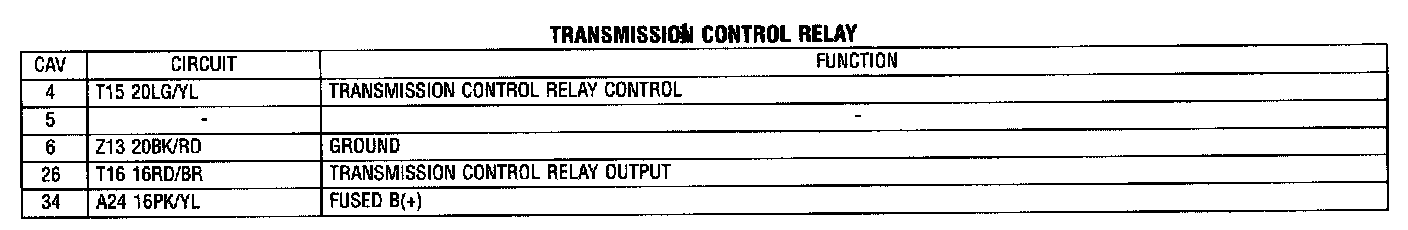

Transmission Control Relay:

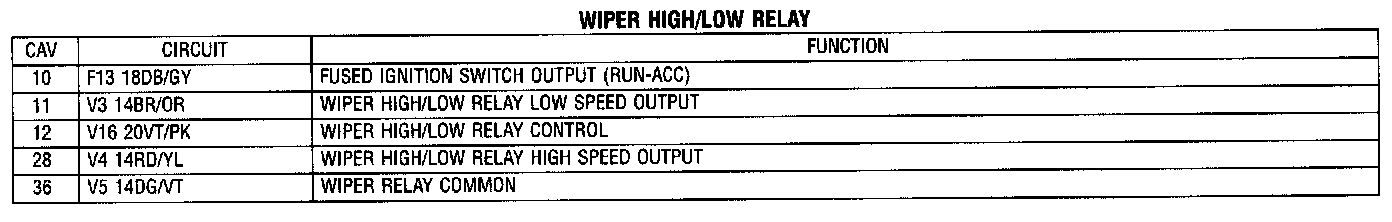

Wiper High/Low Relay:

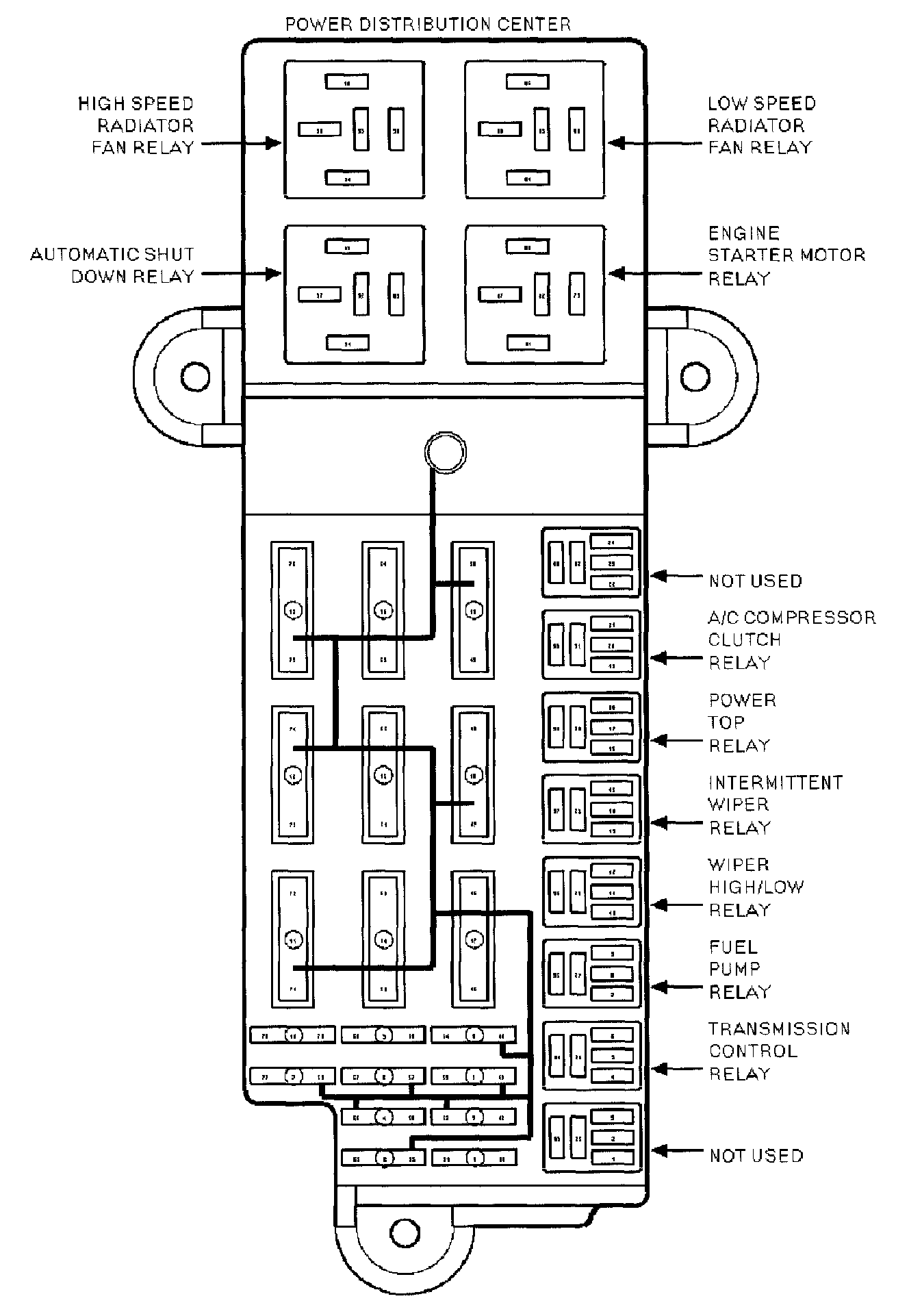

POWER DISTRIBUTION CENTER
