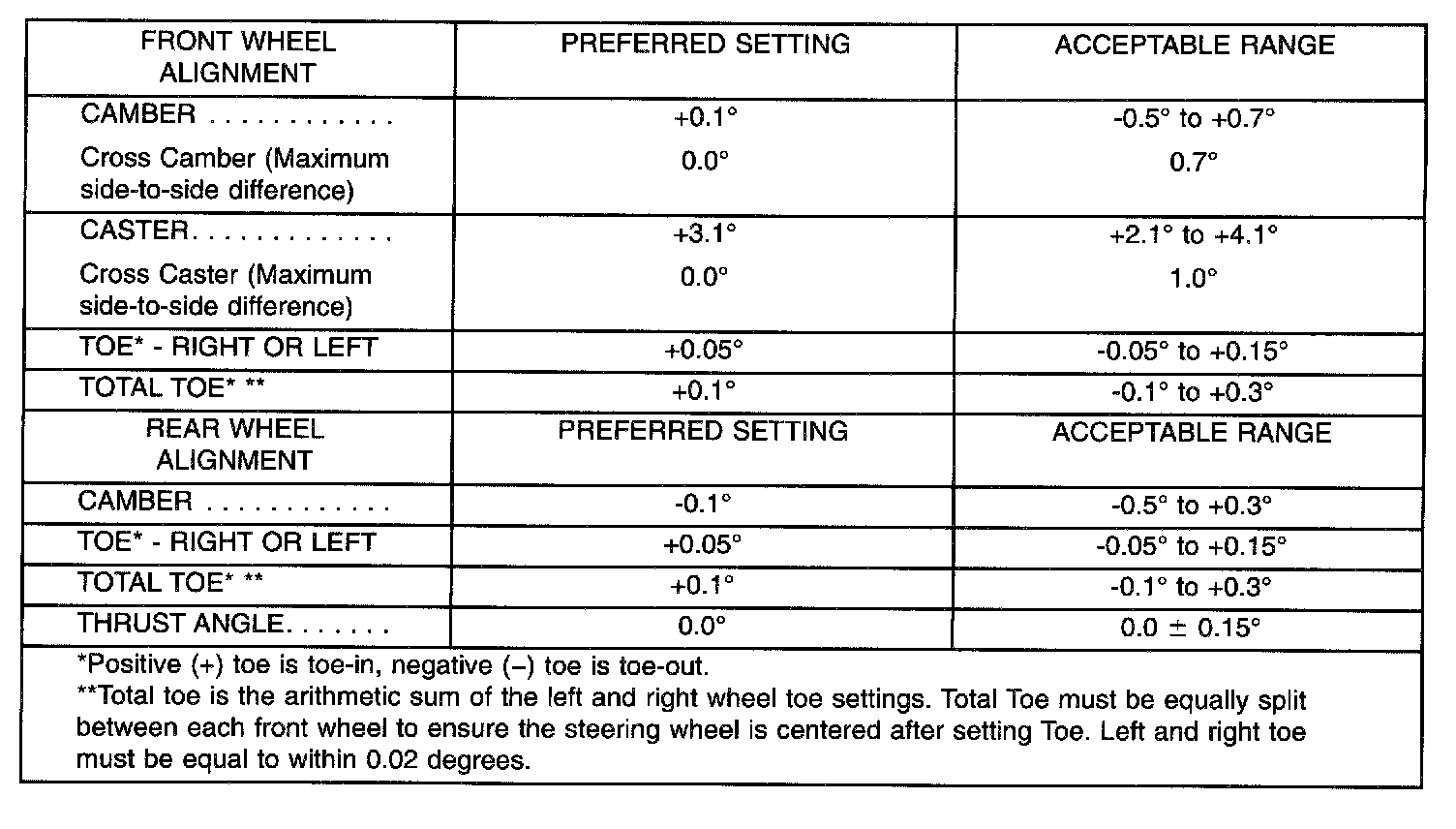

Wheel Alignment Specifications Chart

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at its proper curb height. Refer to Curb Height Measurement.
