Chime Inoperative With Exterior Lamps On

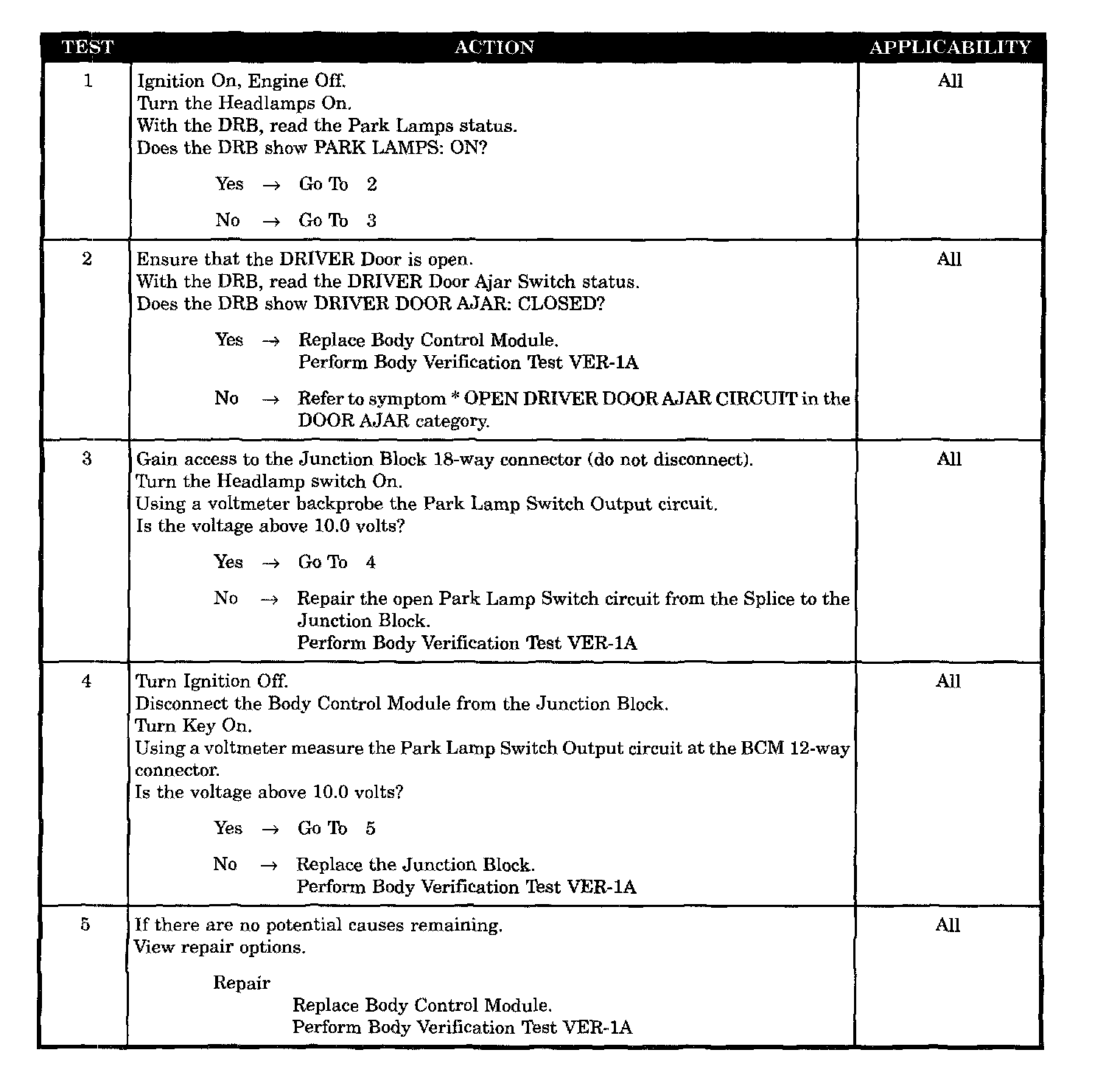

Test 1 - 5:




SYMPTOM
CHIME INOPERATIVE WITH EXTERIOR LAMPS ON

POSSIBLE CAUSES
- Park lamp switch CKT to BCM open
- Junction block - park lamp switch circuit open
- BCM not responding- driver door ajar
- BCM not responding- park lamp SW
