Circuit Protection Devices
WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

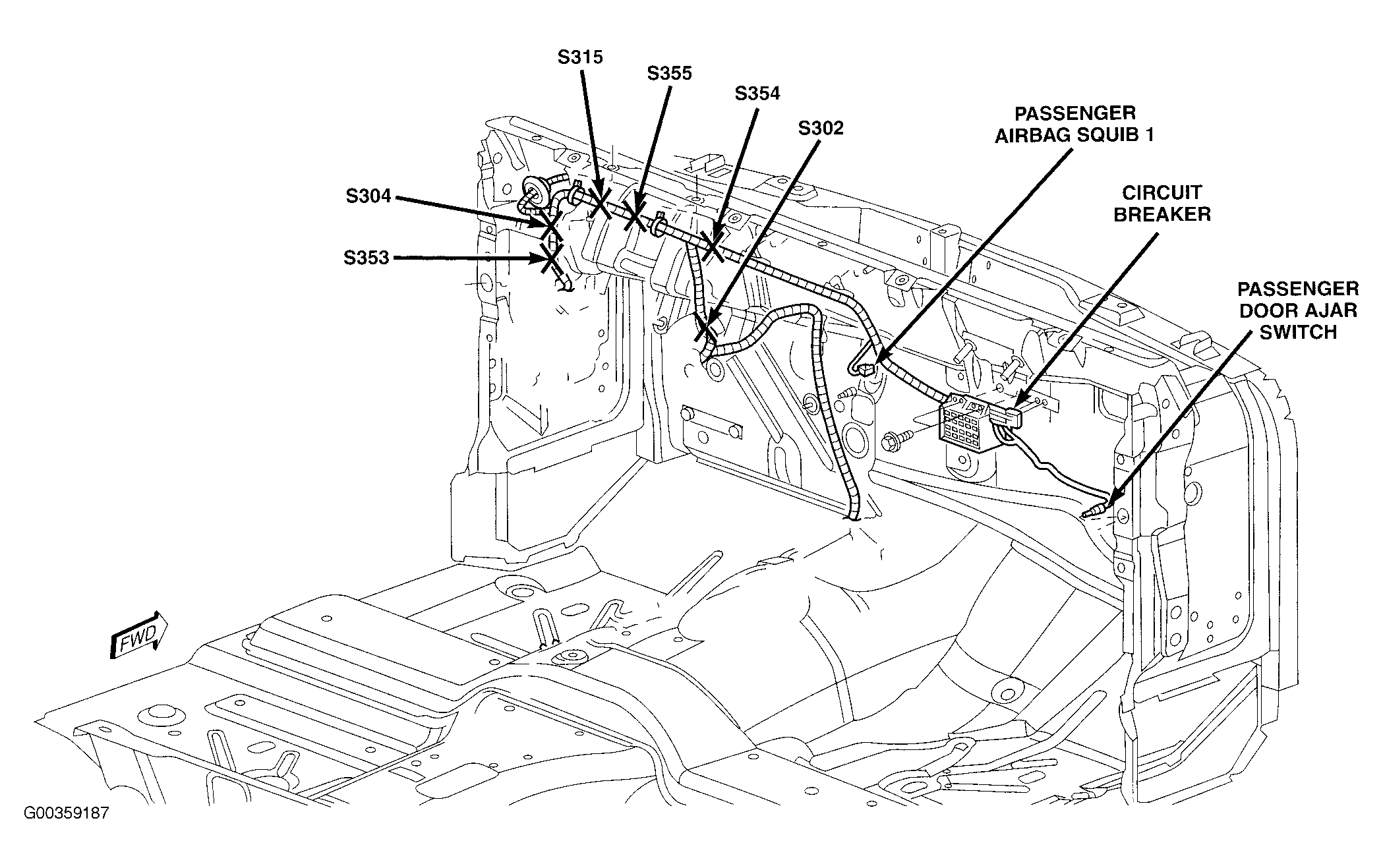

| Circuit Breaker | Near daytime running lamp module. See Figure. |
| Fuse Block | Under right center of dash. |
| Power Distribution Center | On right side of engine compartment. |

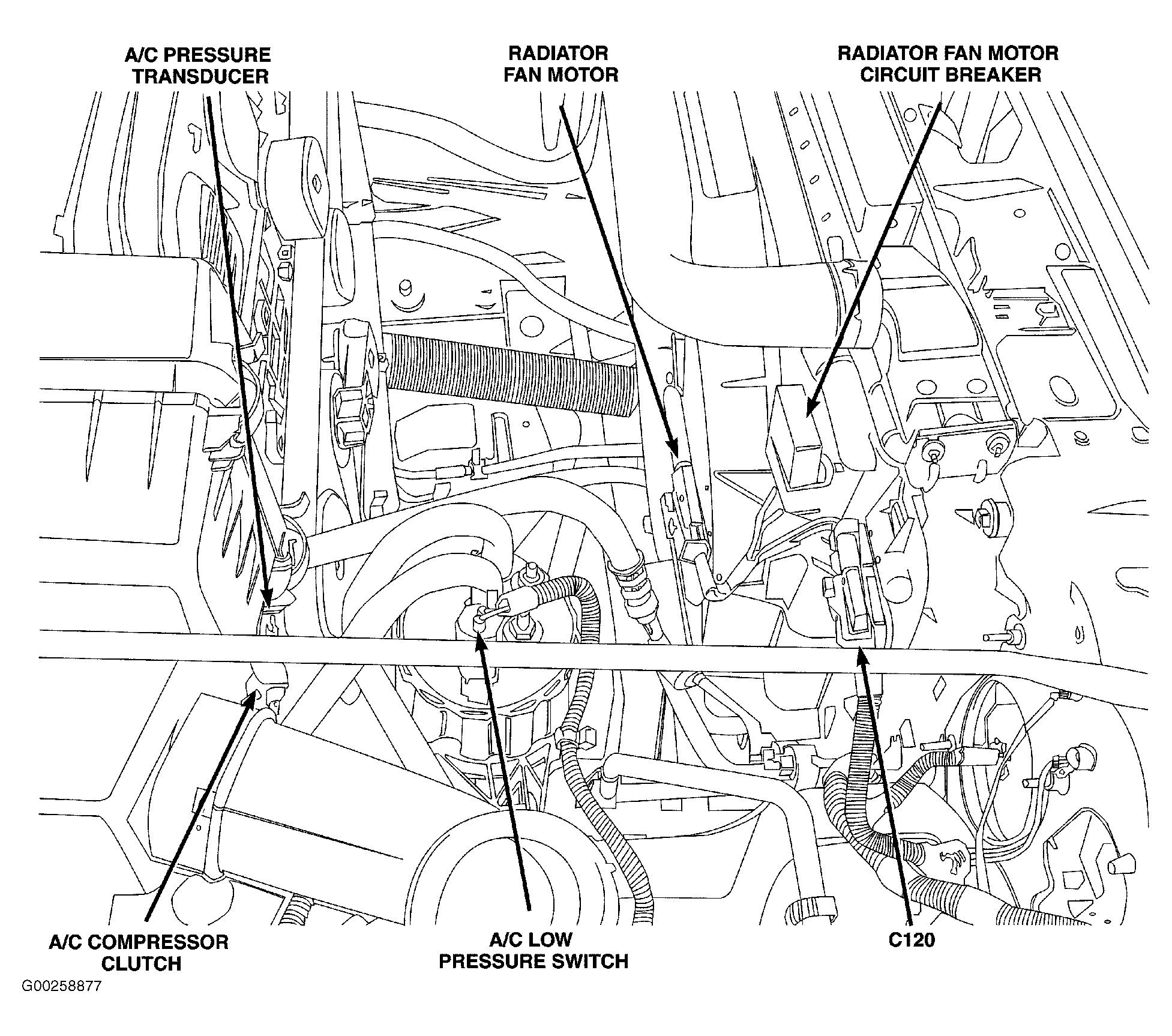

| Radiator Fan Motor Circuit Breaker (2.4L) | On right radiator fan shroud. See Figure. |
