Control Units
WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

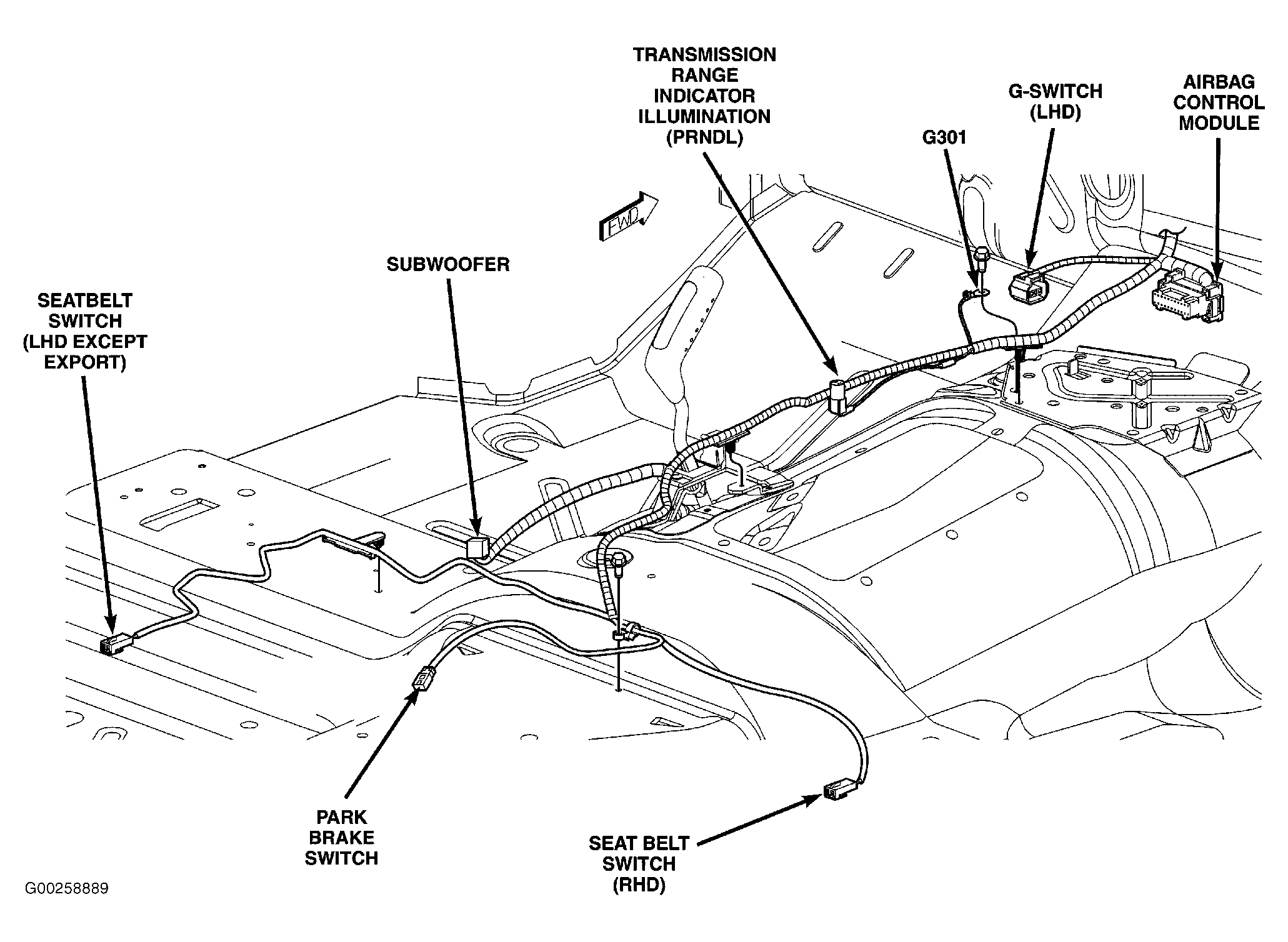

| Airbag Control Module | Front of floorpan tunnel. See Figure. |

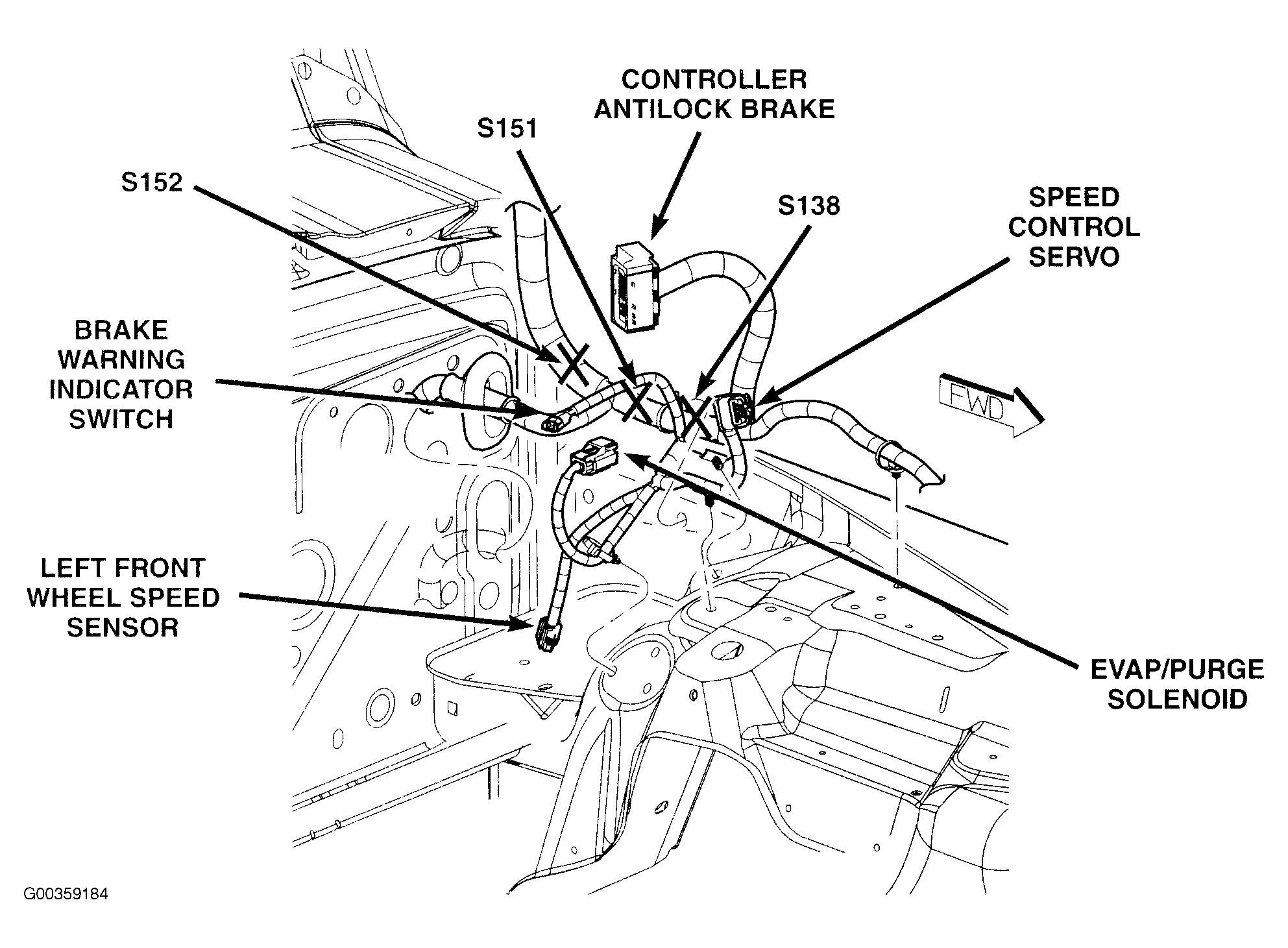

| Controller Anti-Lock Brake | At left rear corner of engine compartment. See Figure. |

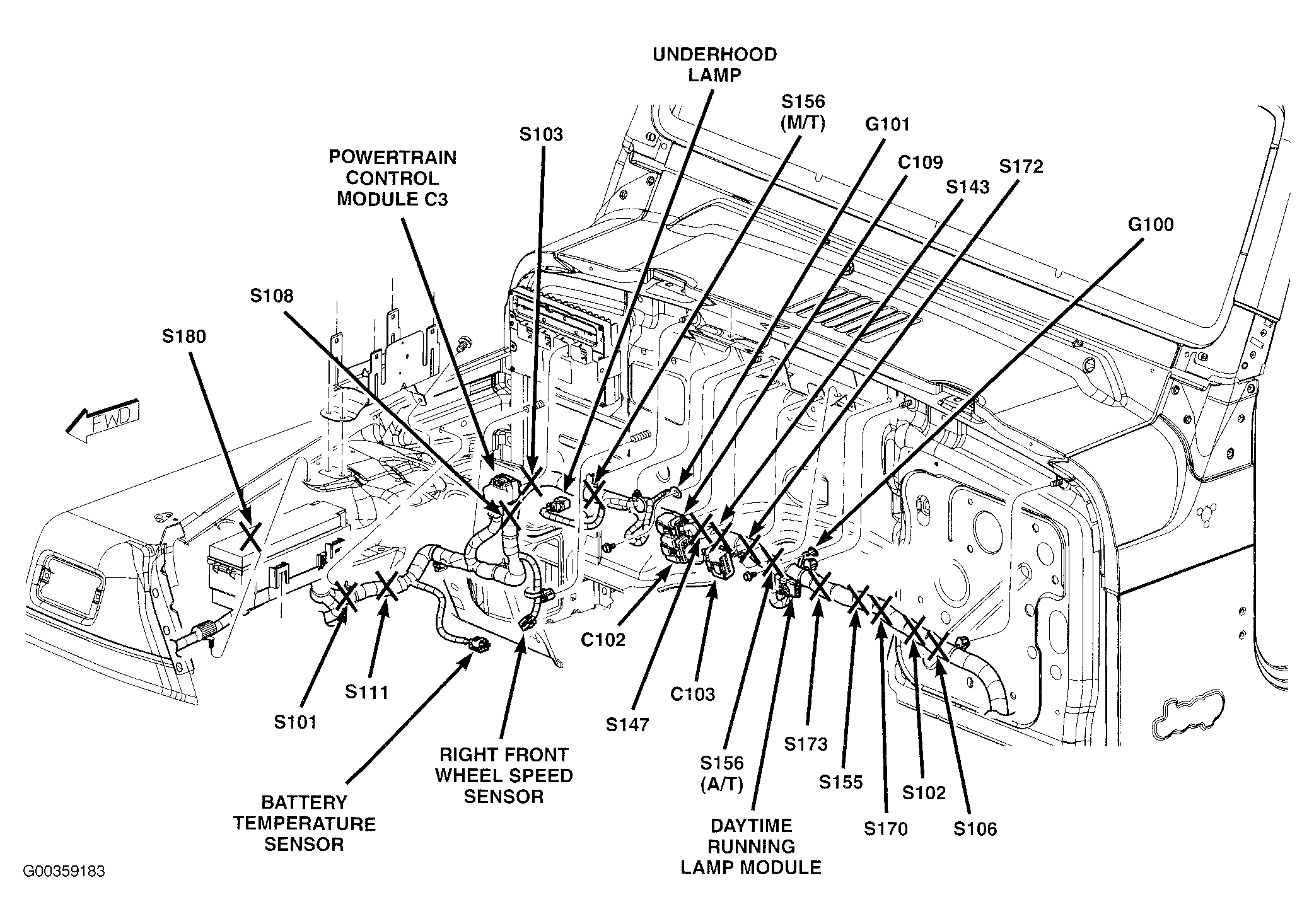

| Daytime Running Lamp Module | Left side of engine compartment. See Figure. |
| Powertrain Control Module | Right rear of engine compartment. See Figure. |

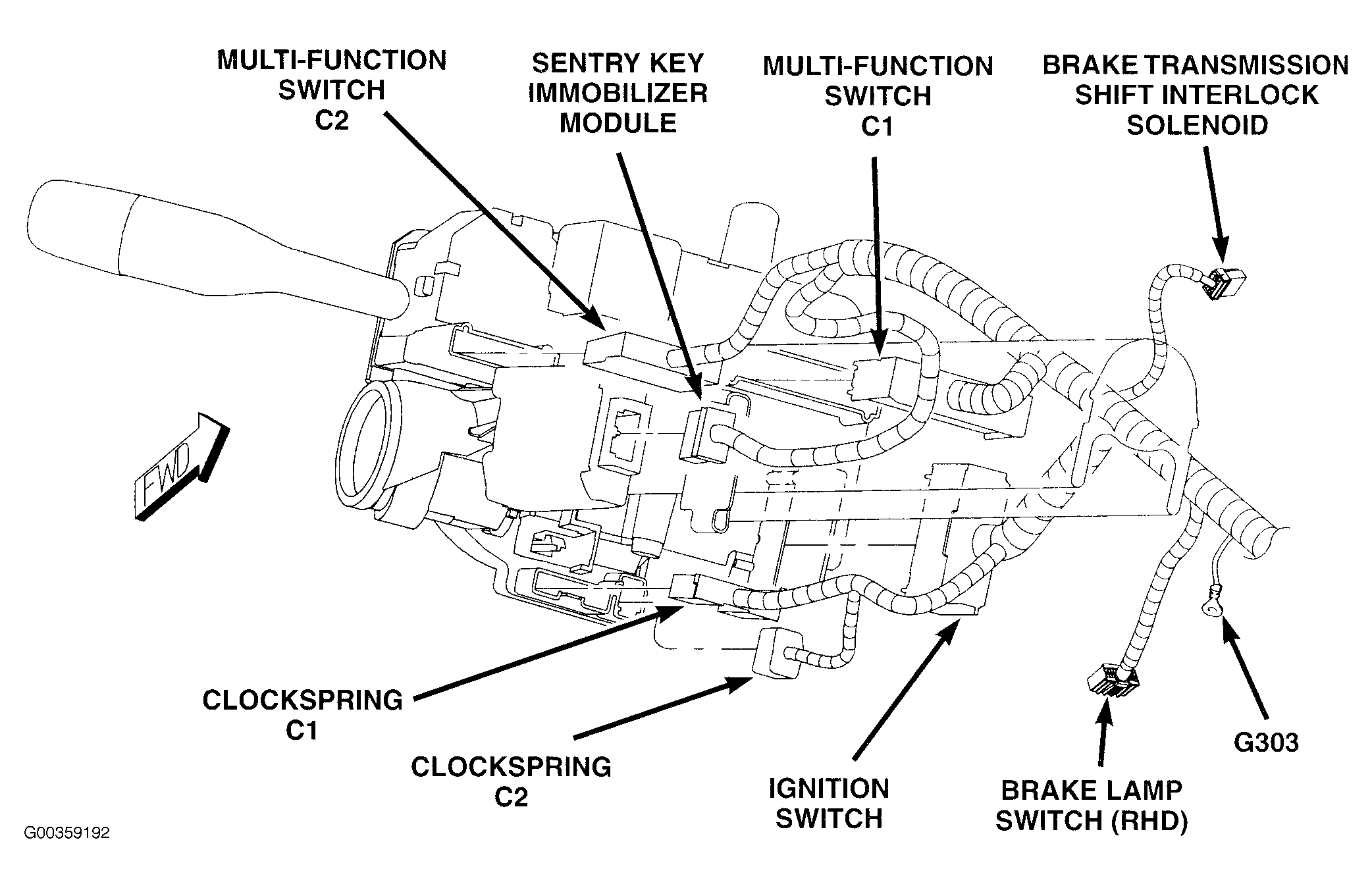

| Sentry Key Immobilizer Module | On steering column, near ignition lock cylinder. See Figure. |
