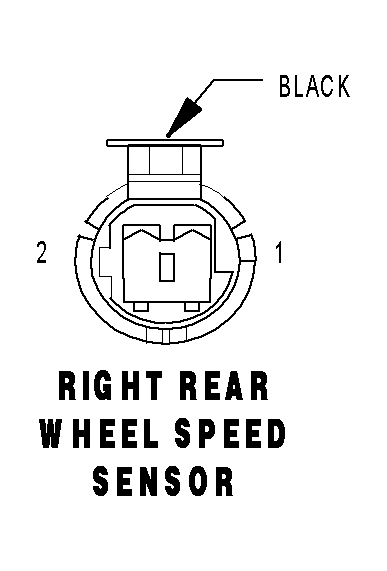

Right Rear Wheel Speed Sensor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B1 18DG/OR |
RIGHT REAR WHEEL SPEED SENSOR (-) |
| 2 |
B2 18DG/LB |
RIGHT REAR WHEEL SPEED SENSOR (+) |
