Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

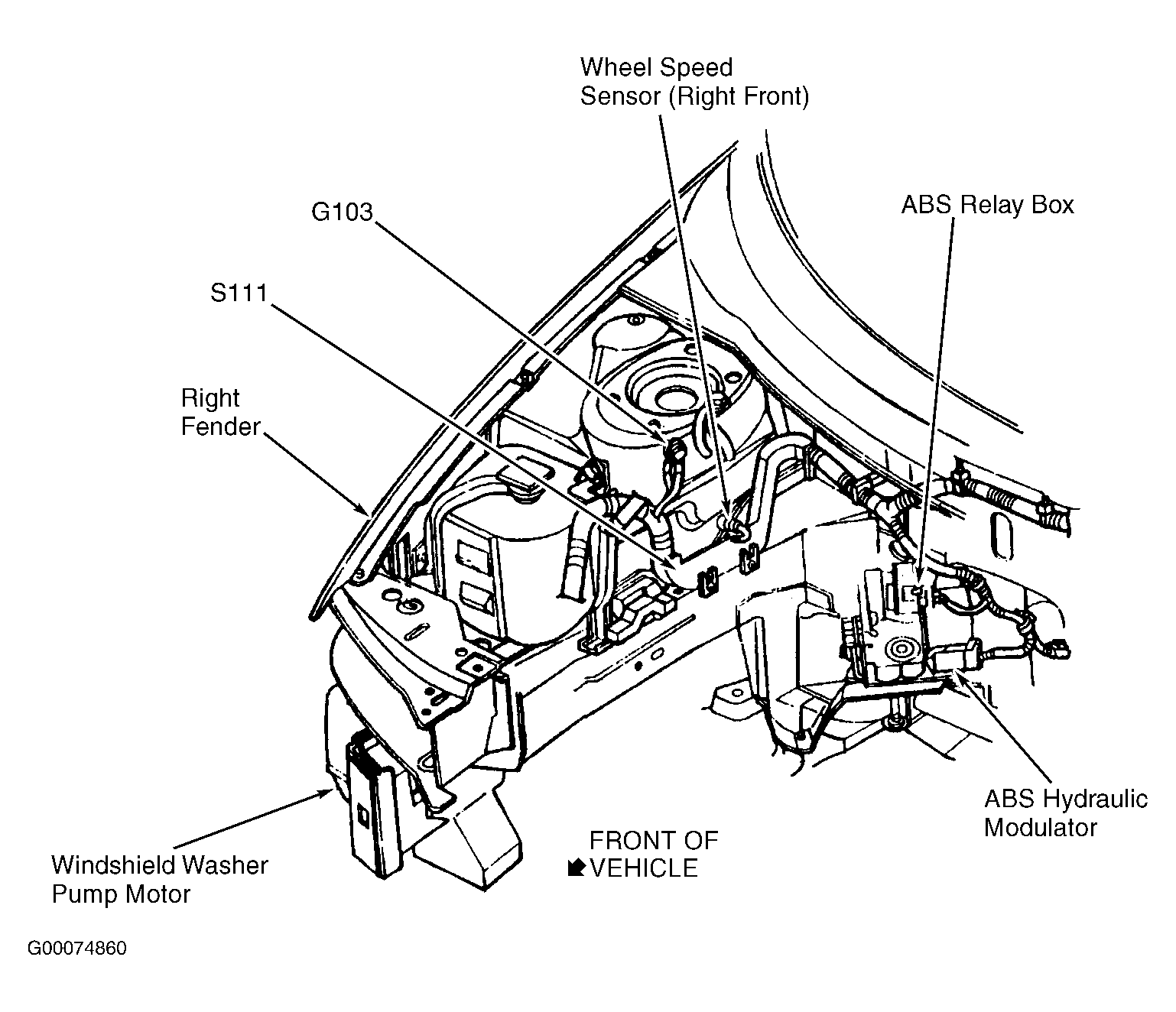

| ABS Relay Box | On ABS hydraulic modulator. See Figure . |
| Dedicated Fuses | In power distribution center. |
| Junction Block | Under left side of dash. |
| Multi-Purpose Fuses | On junction block, under left side of dash. |

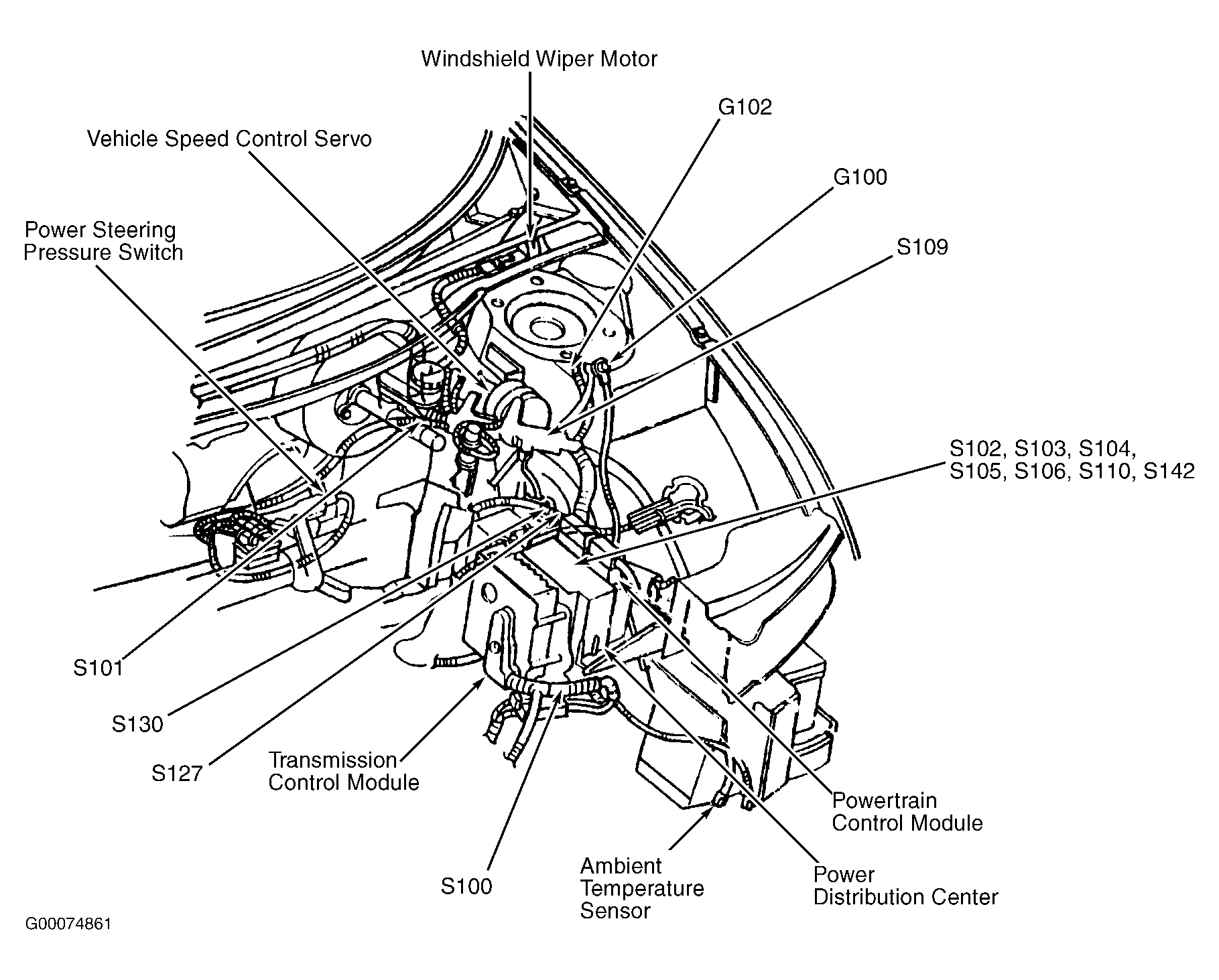

| Power Distribution Center | On left front inner fender. See Figure . |
