Connector/Grounding Indications

Connector/Grounding Indications:

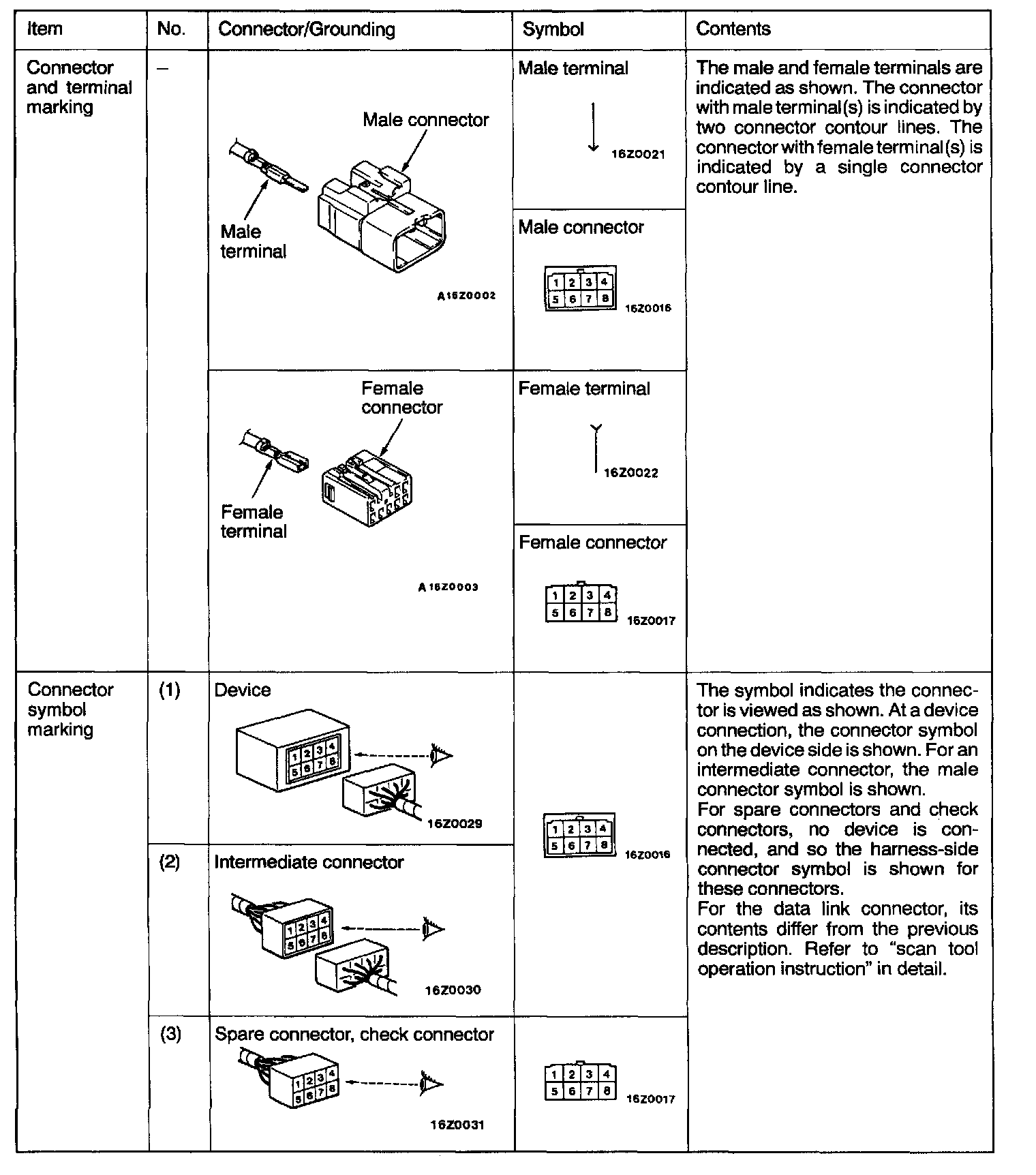

Connector And Terminal Marking:

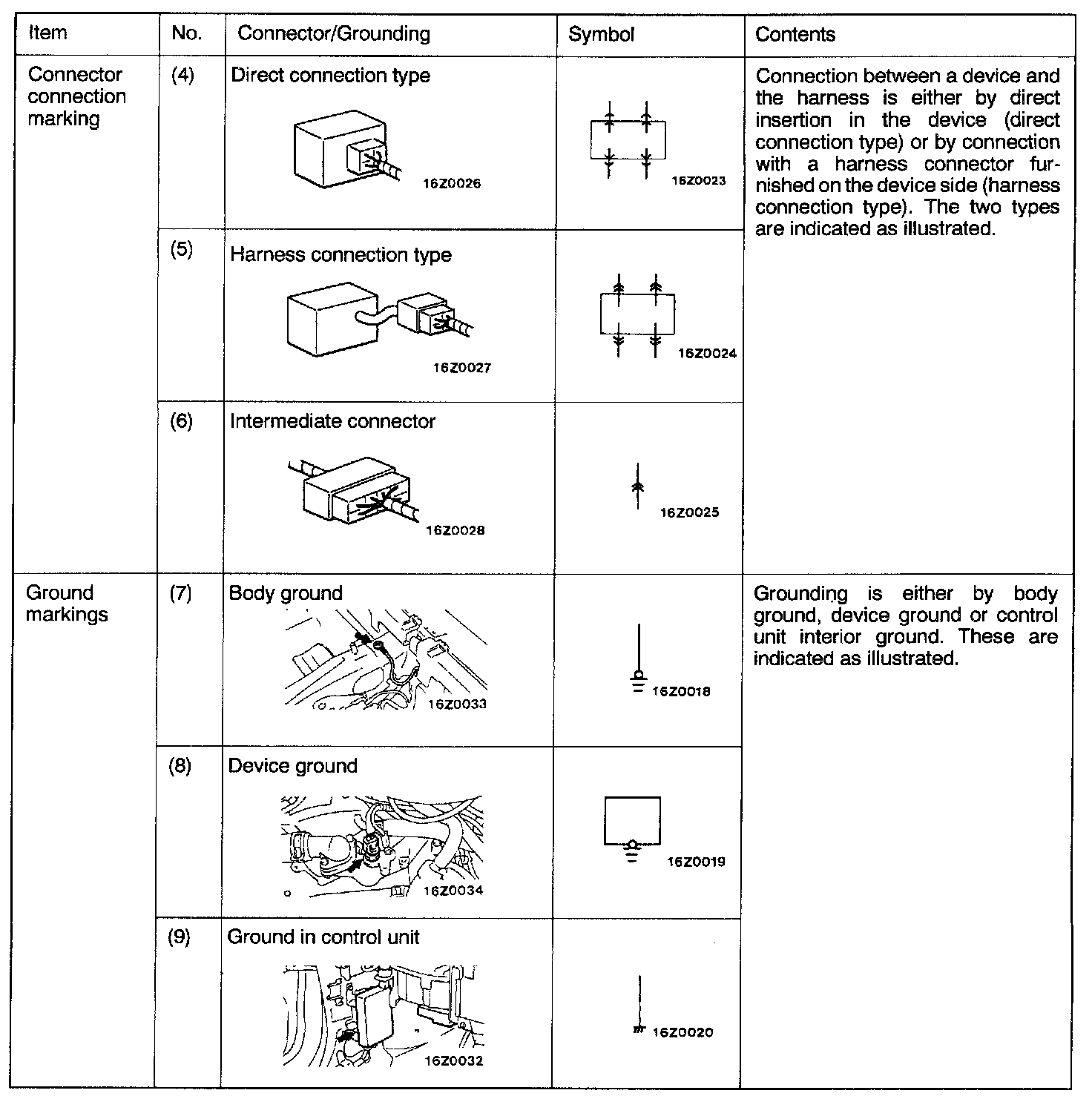

Connector Connection Marking, Grounding Markings:
