Body Control Module Interconnect Relay

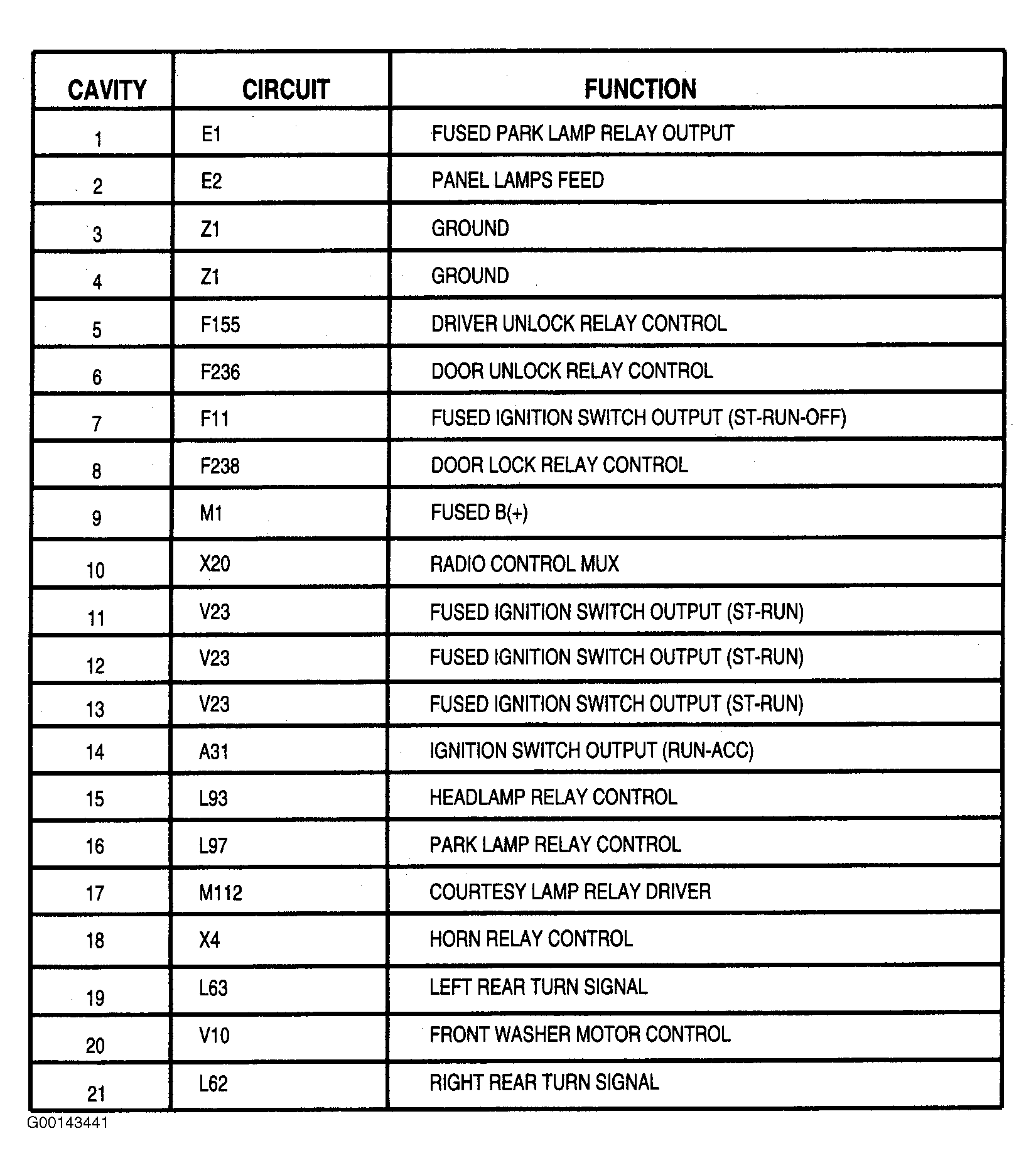

Fig 1: Identifying Body Control Interconnect Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
