Chime Inoperative With Key In Ignition and Driver's Door Open

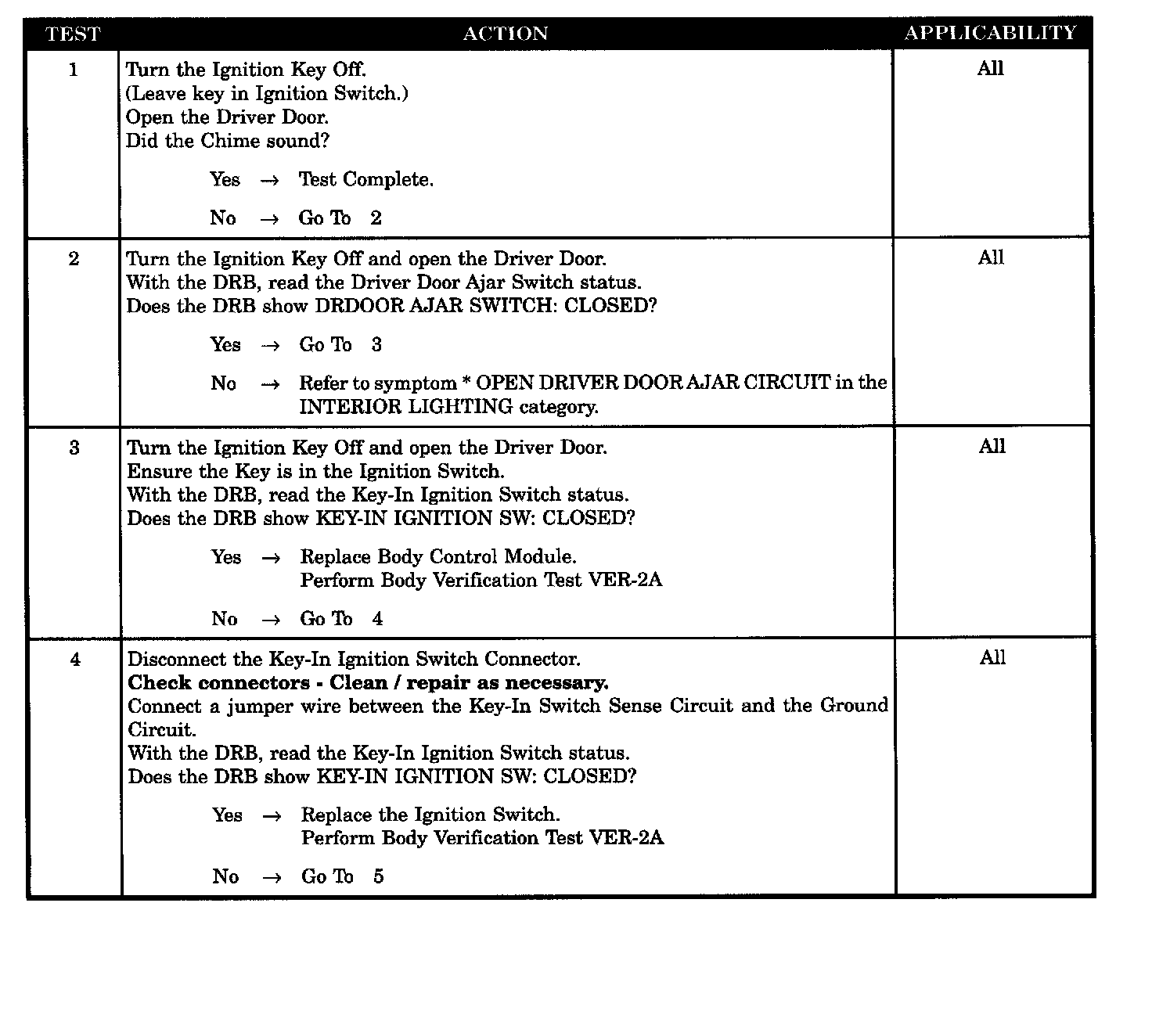

Tests 1 - 4:

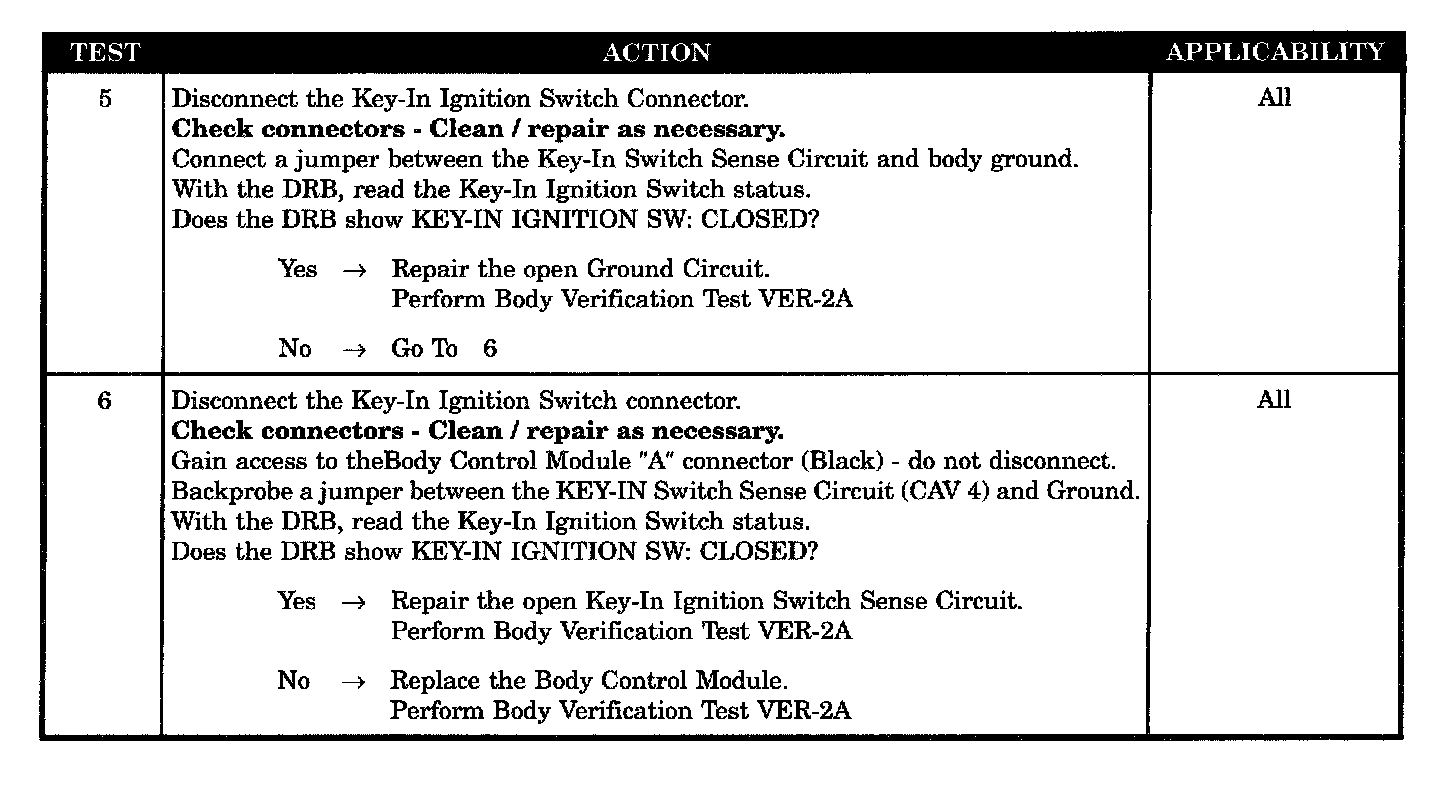

Tests 5 - 6:

SYMPTOM
CHIME INOPERATIVE- KEY IN ignition & DRIVER DOOR OPEN

POSSIBLE CAUSES
- Ignition switch ground circuit open
- Key in ignition switch sense circuit open
- Ignition switch - Key in switch open
- BCM no chime to key in ignition
- BCM not responding to key in switch
