Chime Inoperative With L or R Turn Signal On For 1 Mile

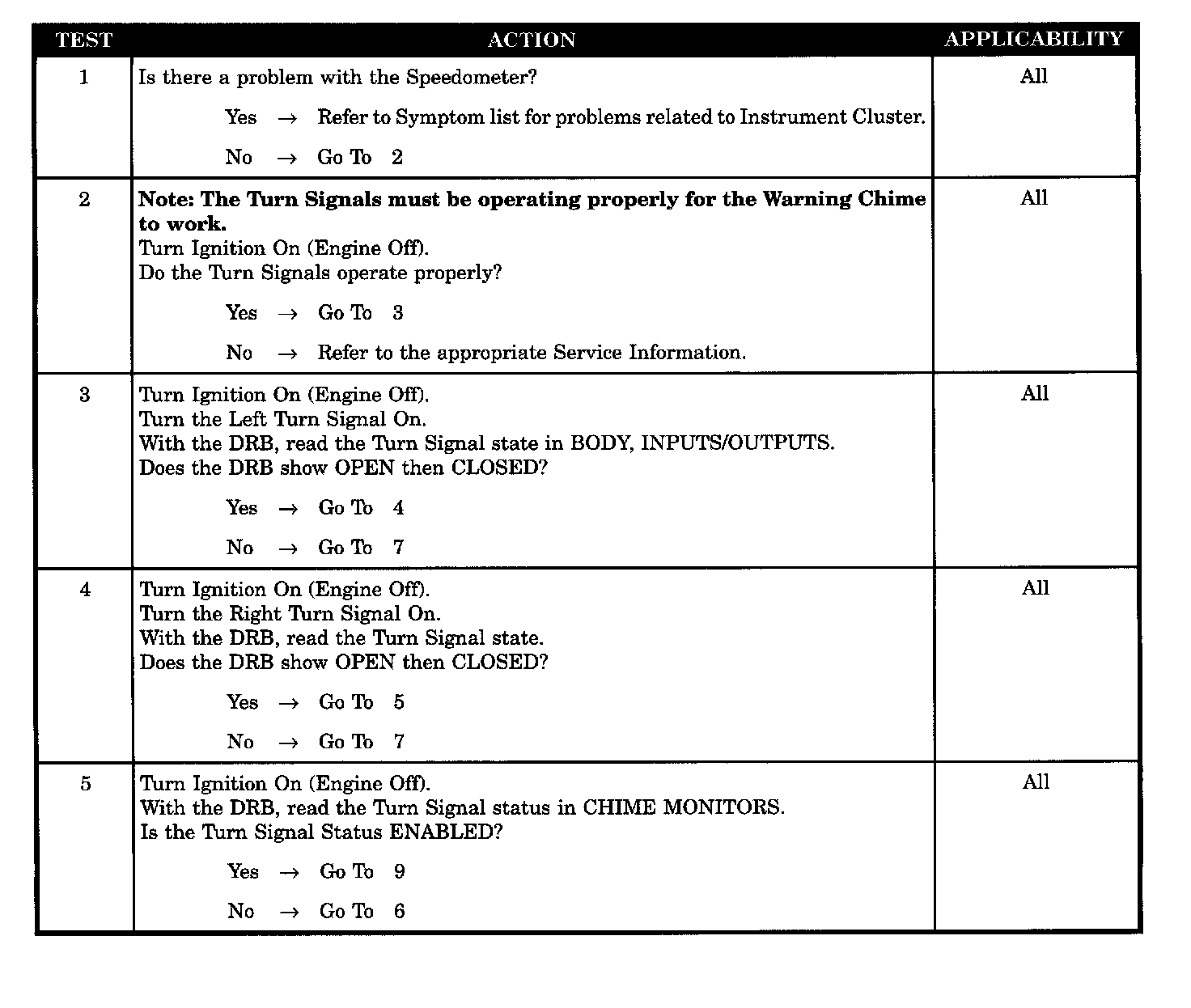

Tests 1 - 5:

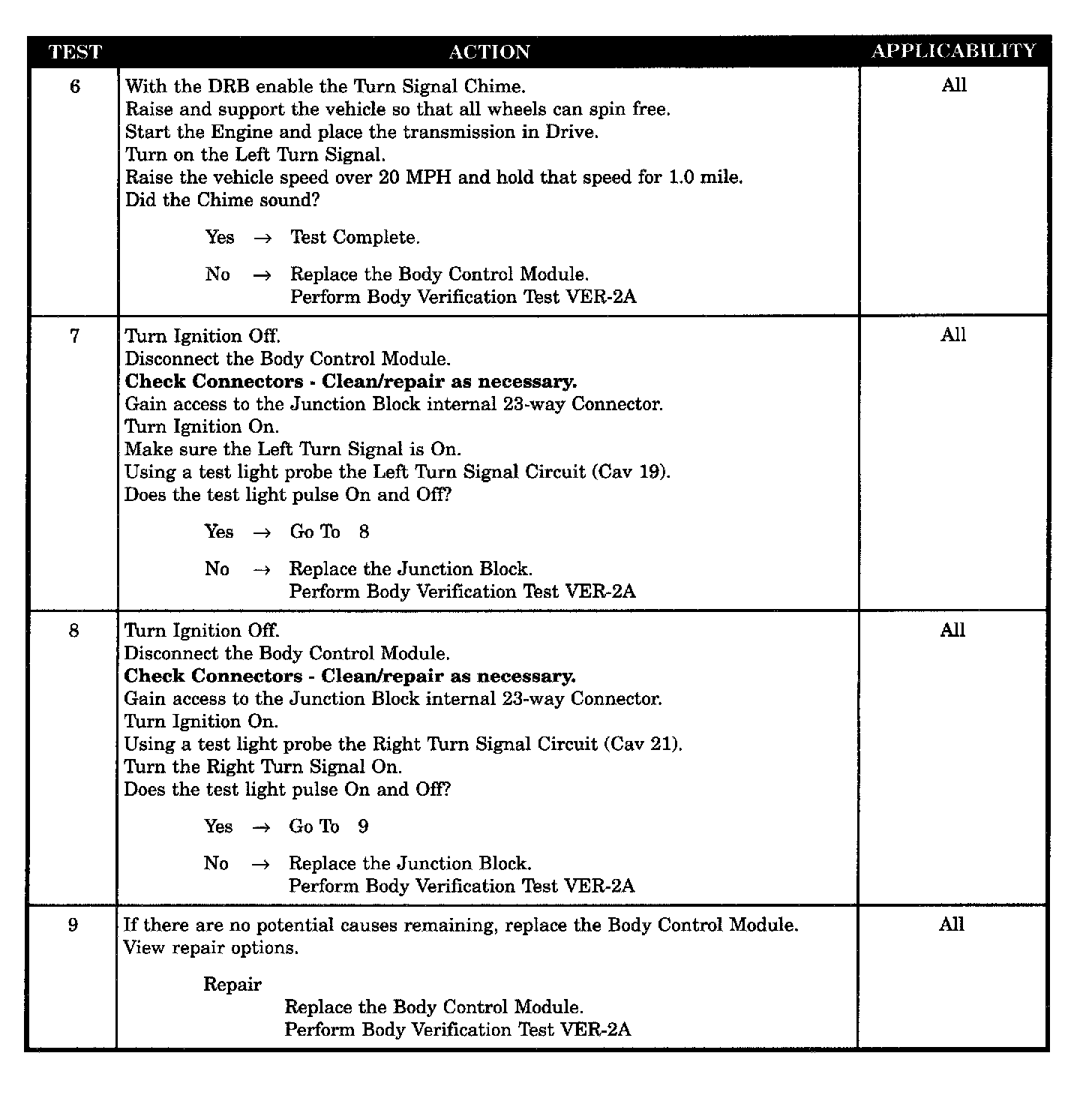

Tests 6 - 9:

SYMPTOM
CHIME INOPERATIVE WITH L OR R TURN SIGNAL ON FOR 1 MILE

POSSIBLE CAUSES
- Junction Block - Left turn signal open
- Junction Block - Right turn signal open
- BCM - No response to turn signal
- BCM Fails speed test
- Chime - Speedometer problem
- Chime Inoperative - Turn signal on for 1 mile
