Crankshaft Position Sensor: Locations

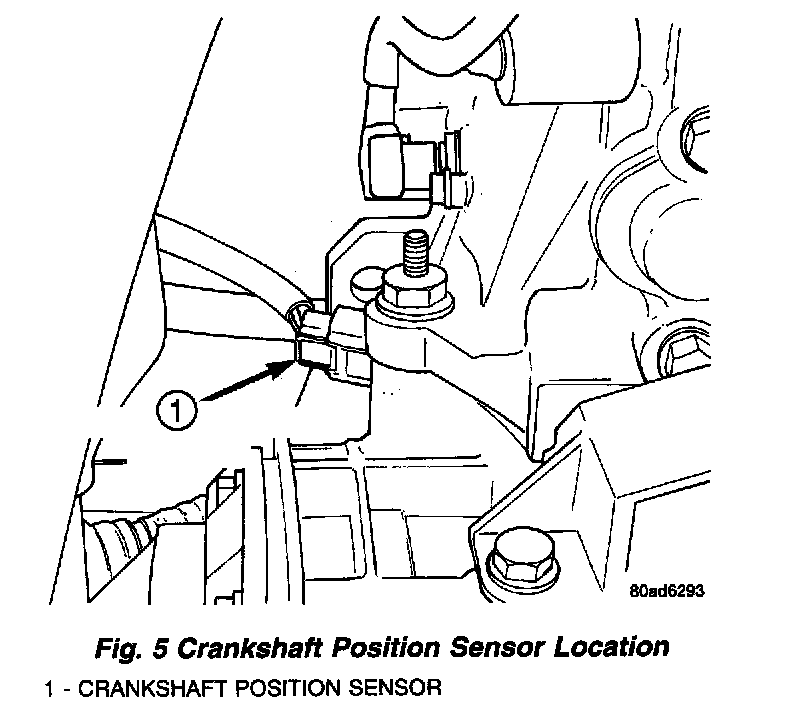

Fig. 5 Crankshaft Position Sensor Location:




The crankshaft sensor is located on the passengers side of the transmission housing, above the differential housing.
