Home >> Chrysler >> 2001 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

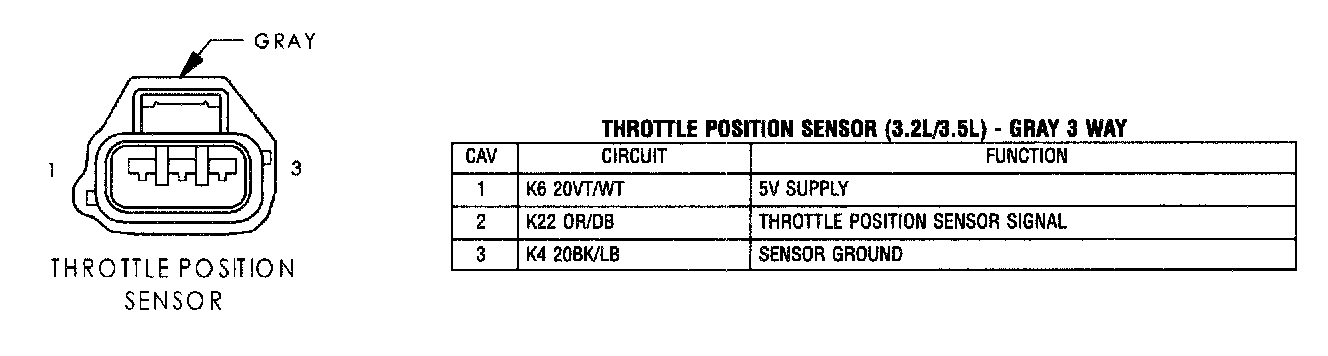

Throttle Position Sensor: Diagrams

Throttle Position Sensor:
