Air Bag Control Module
Left Side Impact Airbag Control Module (JR-41):

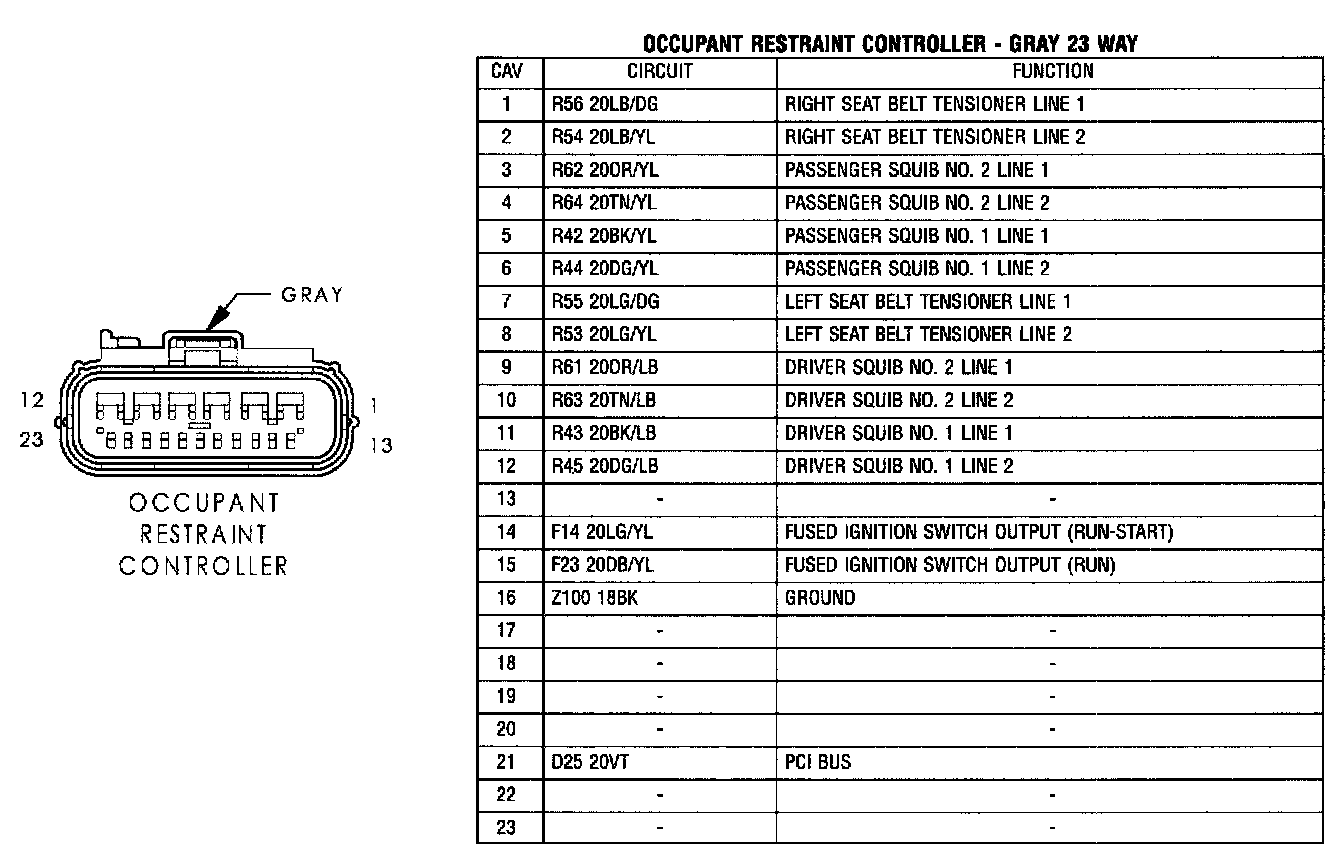

Occupant Restraint Controller:
Right Side Impact Airbag Control Module (JR-41):
