Control Module HVAC: Service and Repair

BLOWER MOTOR POWER MODULE REPLACEMENT

REMOVAL
1. Remove the HVAC housing.

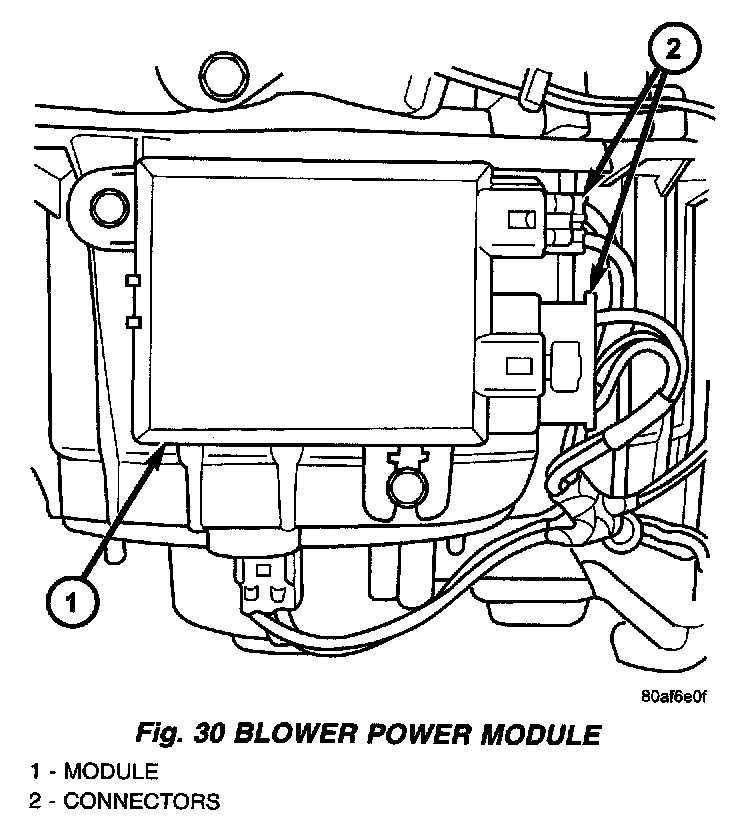

Fig. 30 Blower Power Module:

2. Disconnect blower motor power module wiring connectors.
3. Remove the module mounting screws and remove module.

INSTALLATION
1. Install module onto the housing and install mounting screws.
2. Plug in wiring connectors.
3. Install HVAC housing.
