Chime Inoperative With Drivers Seat Belt Unfastened

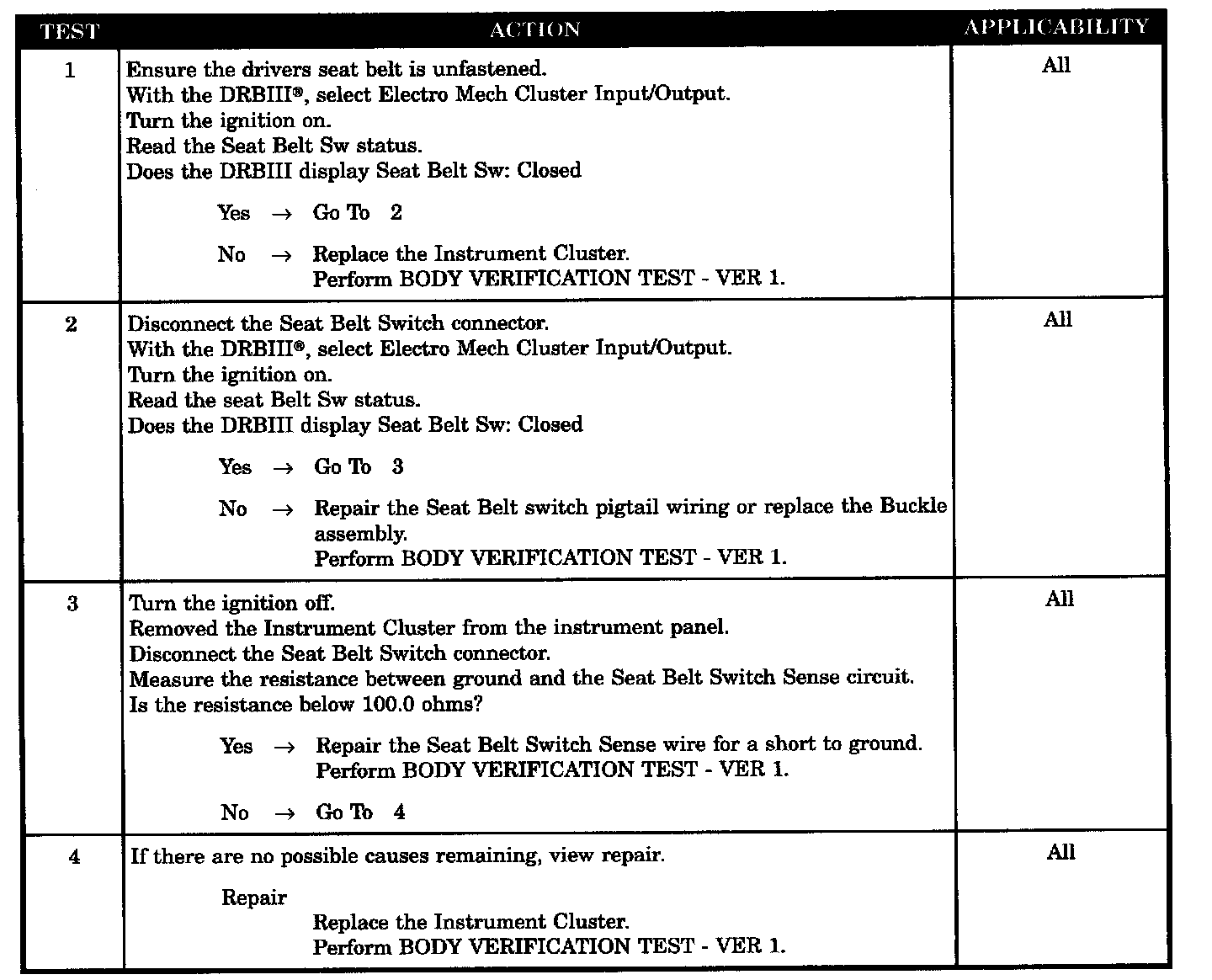

Tests 1 - 4:




SYMPTOM
CHIME INOPERATIVE WITH DRIVER SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Seat belt switch status on DRB III
- Seat belt switch shorted
- Seat belt switch sense short to ground
- Instrument cluster - seat belt switch shorted
