Transmission Range Sensor: Installation

To install, reverse removal procedure using NEW manual shaft seal. Apply 1/8" bead of RTV sealant on oil pan sealing surfaces before installing oil pan.
Tighten transmission range sensor retaining screw, valve body-to-transaxle case bolts and oil pan bolts to 14 ft. lbs. (19 N.m). Fill transaxle to proper level with Mopar(R) ATF Plus Type 7176 fluid.

Fig 1: Locating Manual Valve Lever, Connector For Transmission Range Sensor, Input Speed Sensor & Output Speed Sensor (4-Speed A/T)

Courtesy of CHRYSLER CORP.

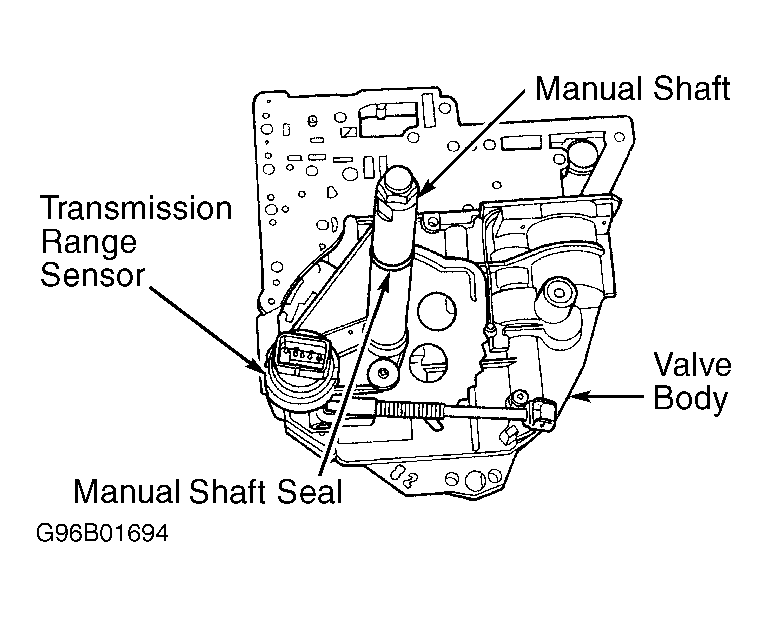

Fig 2: Locating Transmission Range Sensor (4-Speed A/T)

Courtesy of CHRYSLER CORP.
