Start and Stall Condition

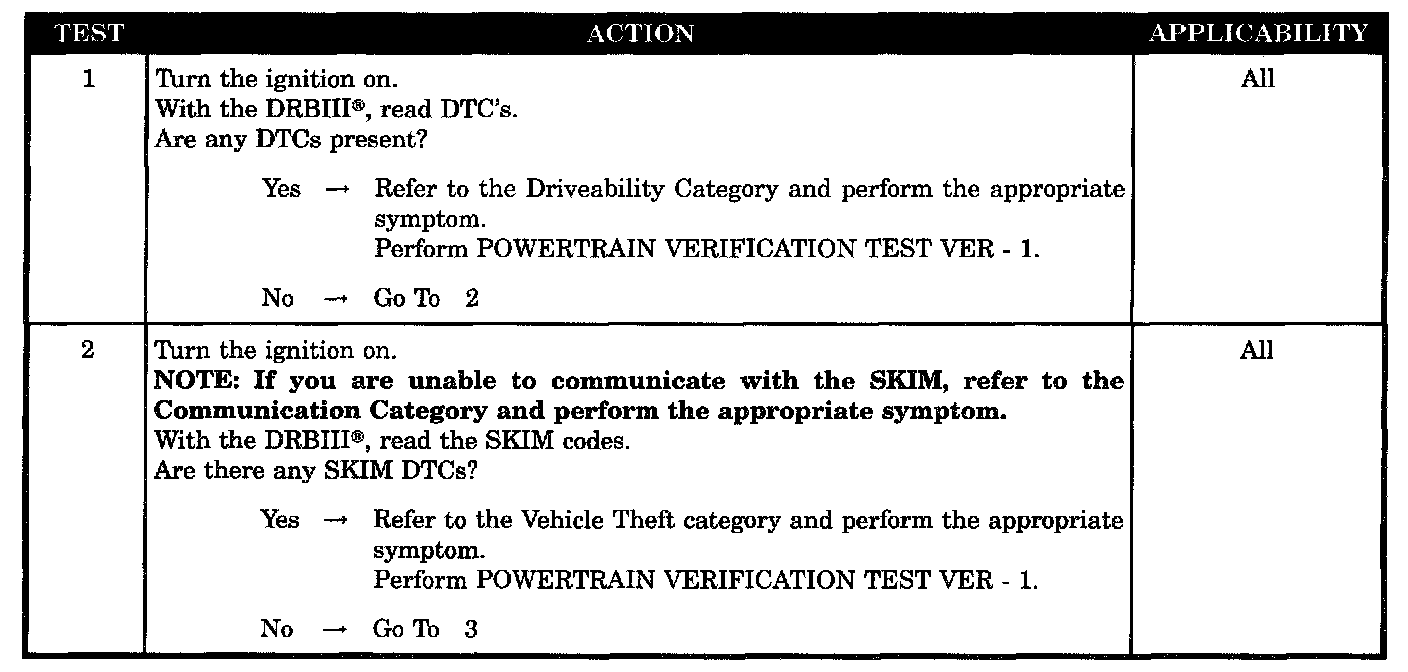

Tests 1 - 2:

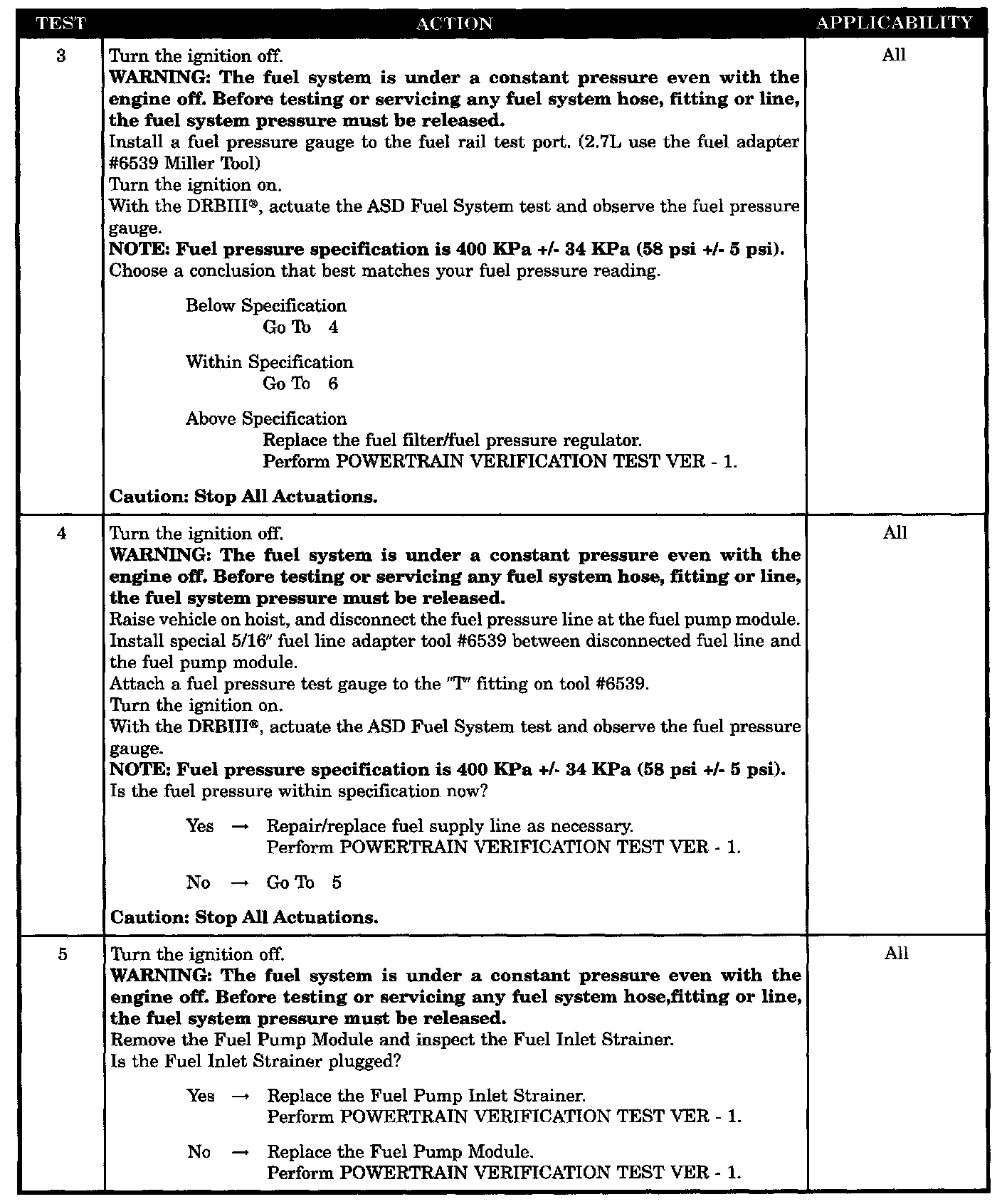

Tests 3 - 5:

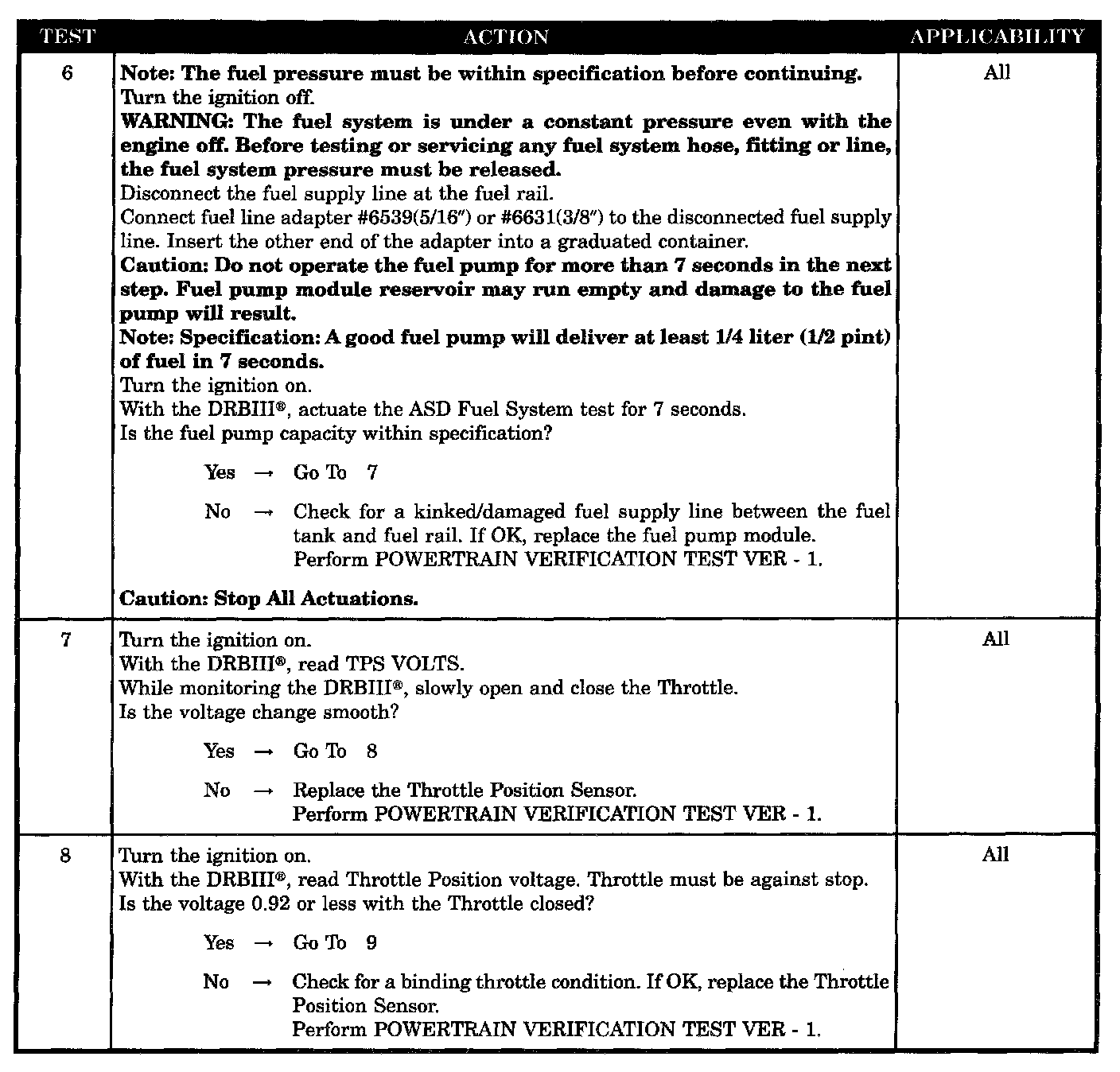

Tests 6 - 8:

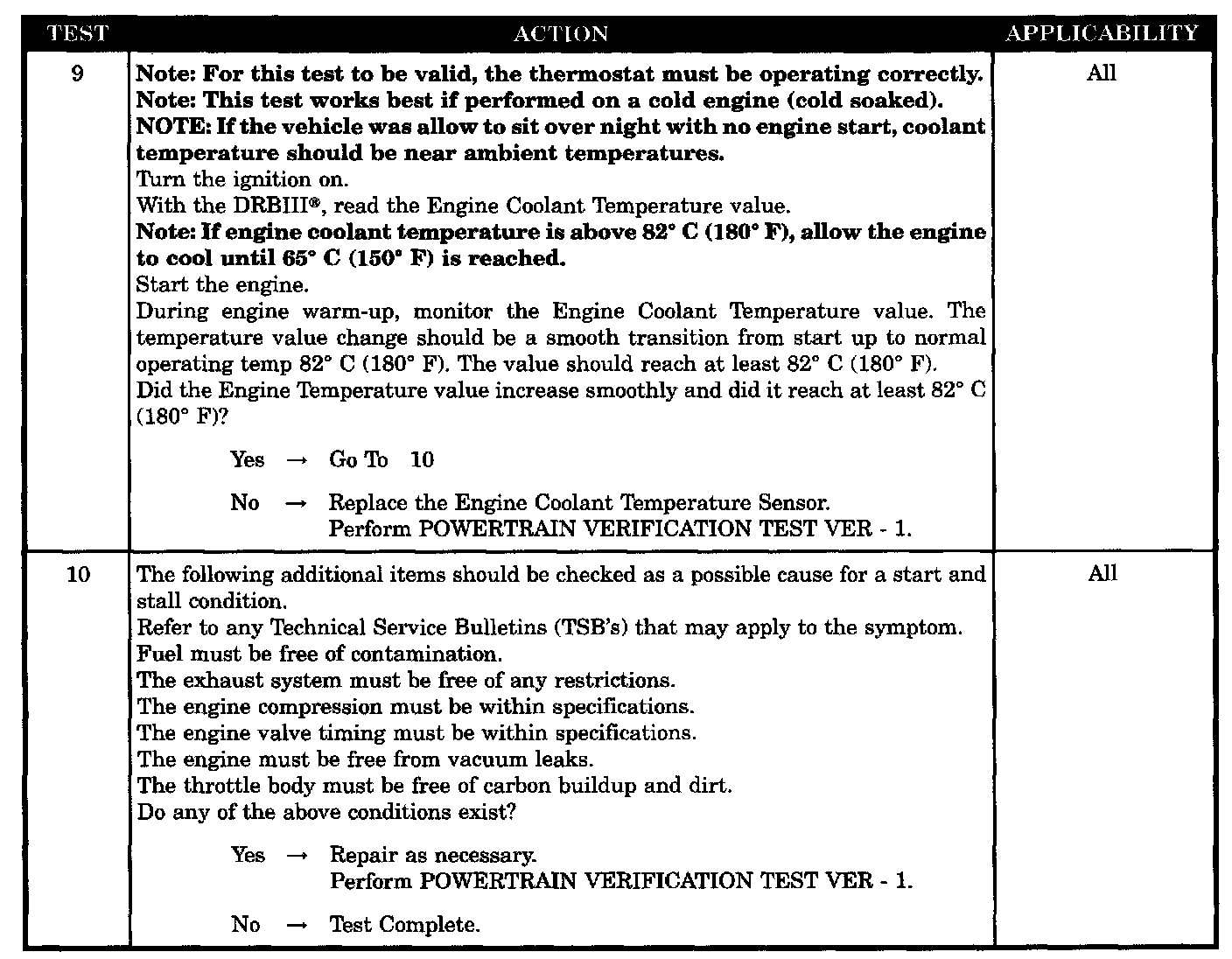

Tests 9 - 10:

SYMPTOM
START AND STALL CONDITION

POSSIBLE CAUSES
- Checking DTCS
- Checking SKIM DTCS
- Fuel pressure out of SPECS
- Fuel pump capacity (volume) out of SPECS
- TP sensor sweep
- TP sensor voltage greater than 0.92 volts with throttle closed
- ECT sensor operation
- Other possible causes for start & stall
- Restricted fuel supply line
- Fuel pump inlet strainer plugged
- Fuel pump module
