Wiper Blade Replacement

REMOVAL
1. Lift wiper arm to raise blade off glass.

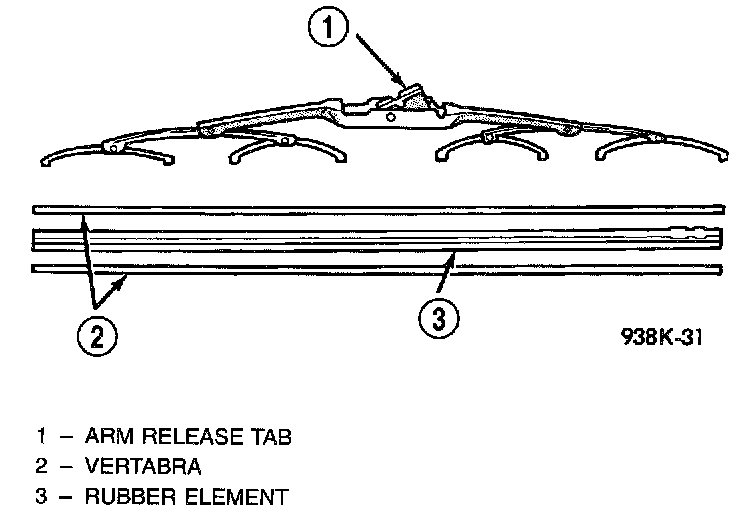

Wiper Blade And Element:

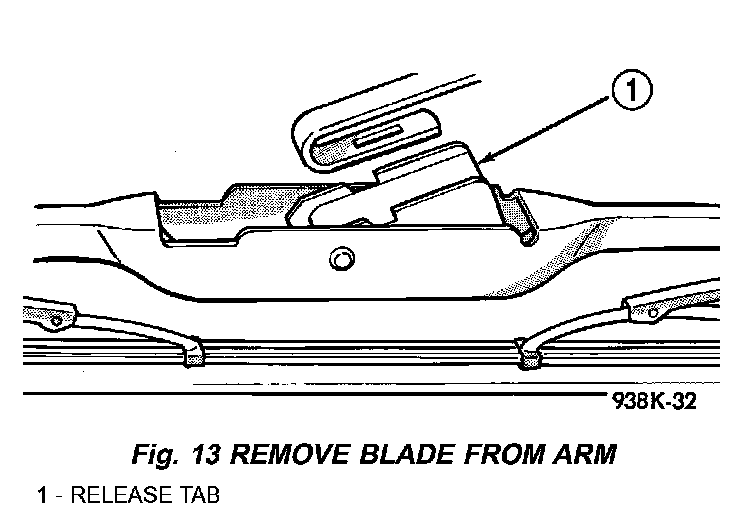

Fig. 13 Remove Blade From Arm:

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip. The vertebra is curved on the right blade only Install with the curve matching the shape of the windshield.
3. Gently place wiper arm tip on glass surface.

INSTALLATION
1. Lift wiper arm tip off glass and snap blade and element onto wiper arm. The vertebra is curved on the right blade only Install with the curve matching the shape of the windshield.
2. Lower wiper arm to glass.
