Removal & Installation

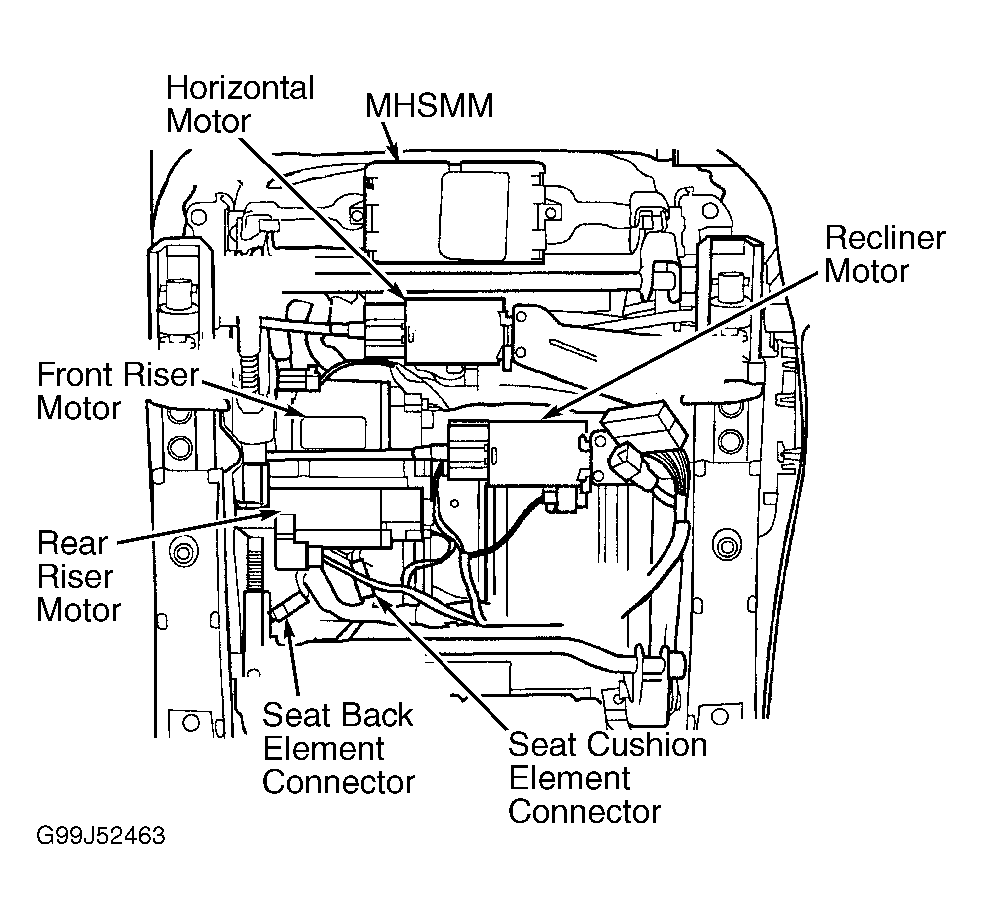

Memory Heat Seat/Mirror Module (MHSMM) is located under front of driver seat. See Fig 1 . Disconnect negative battery cable. If necessary, remove seat from vehicle. See SEAT ASSEMBLY . Remove 2 screws attaching MHSMM to seat frame. Disconnect electrical connectors from MHSMM and remove from seat. To install, reverse removal procedure.
