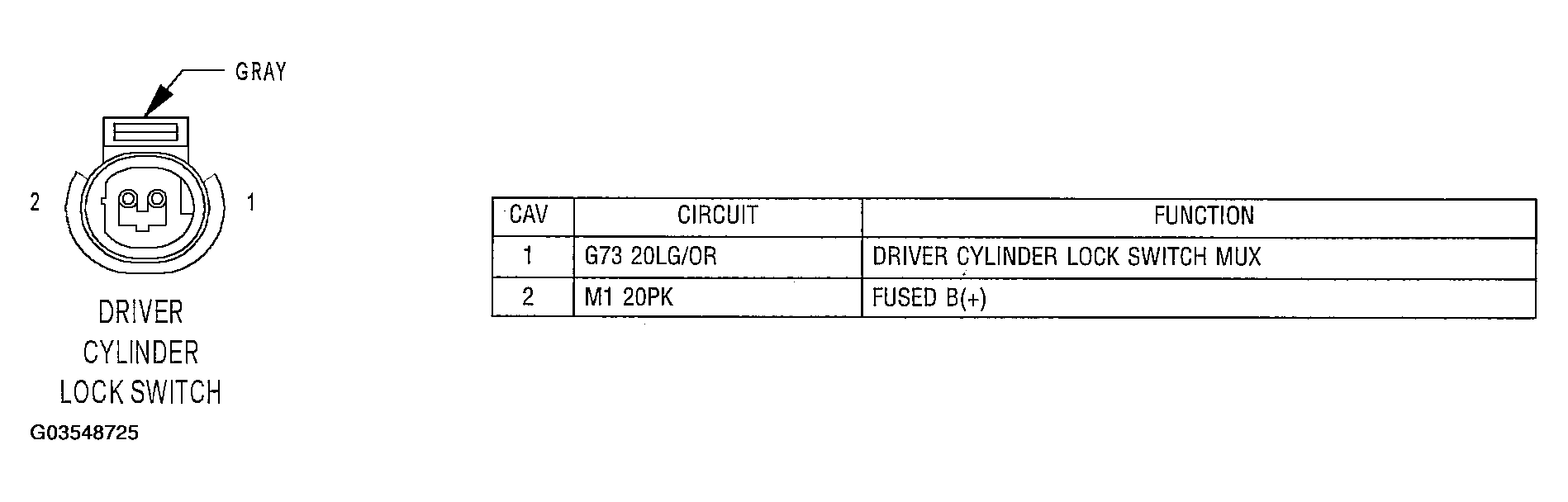

Driver Cylinder Lock Switch Connector End View

Fig 1: Driver Cylinder Lock Switch

Courtesy of CHRYSLER GROUP, LLC
