Memory Set Switch Connector End View

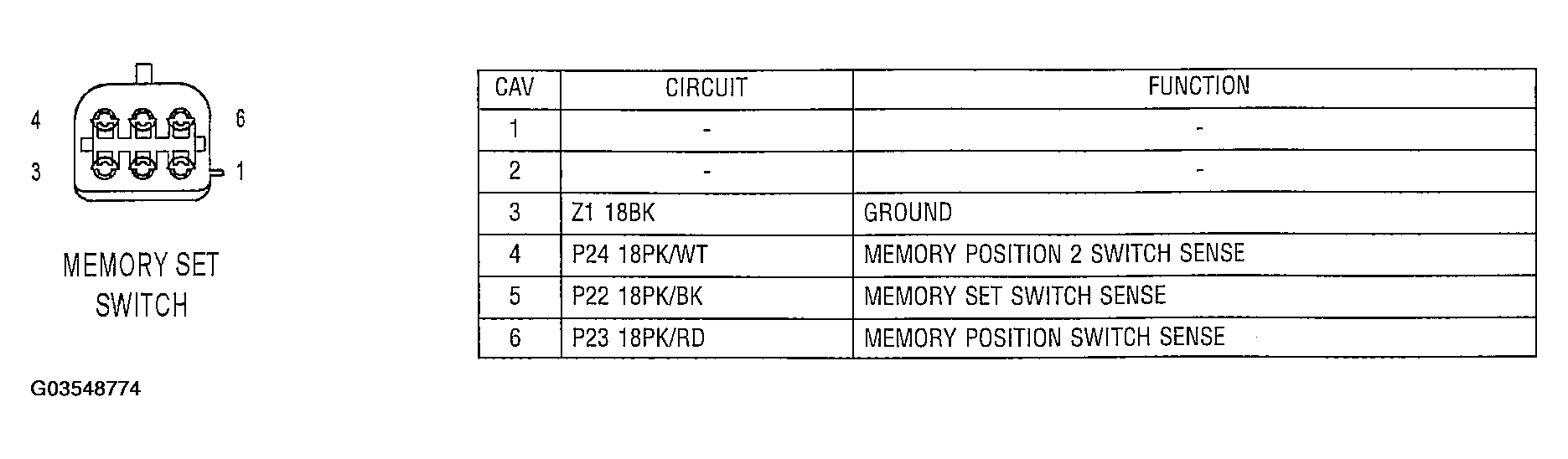

Fig 1: Memory Set Switch
G03548774Courtesy of CHRYSLER GROUP, LLC
