Removal - 2.7L

  1. Disconnect negative battery cable.
  2. Raise and support vehicle.
  3. Remove lower plastic splash shield (Fig 1).

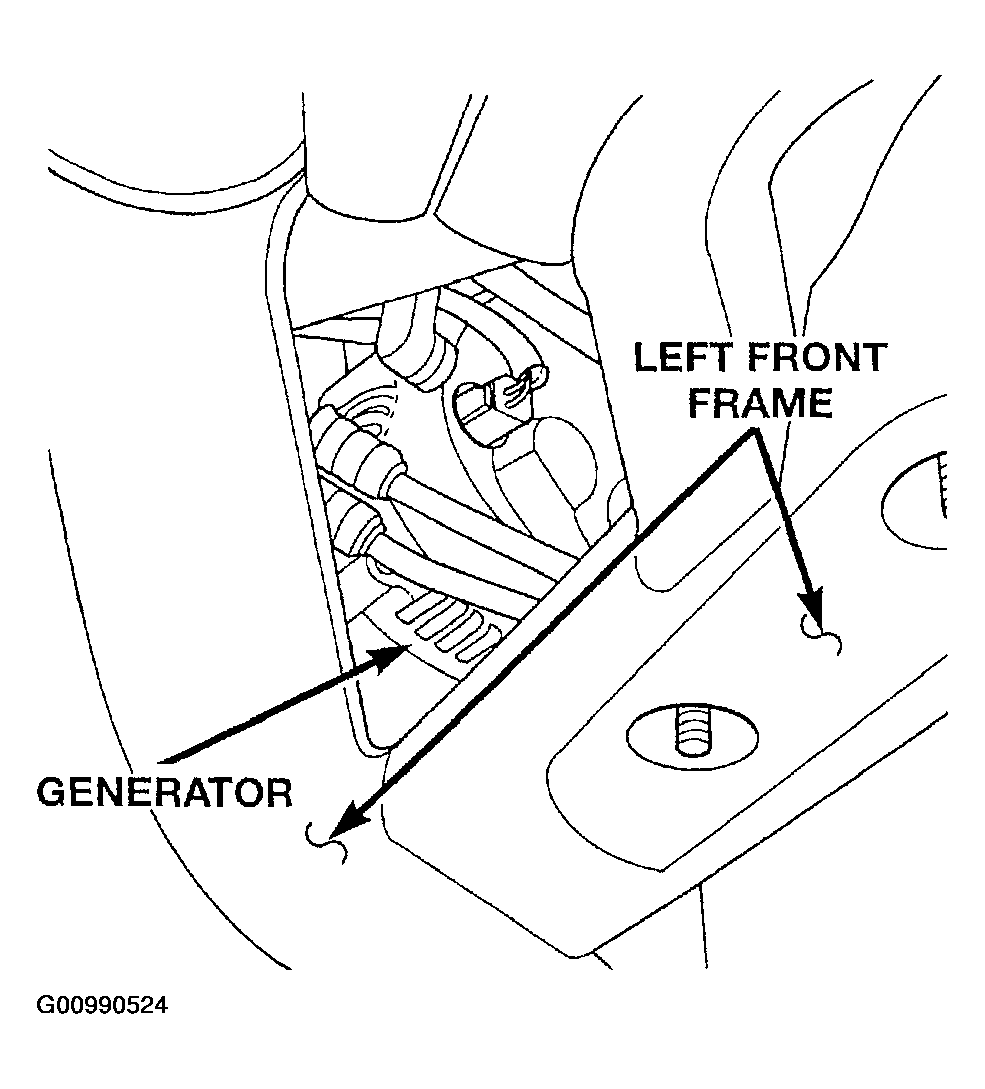

    Fig 1: Removing Generator (2.7L)
    G00990524Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove transmission cooler and reposition cooler out of the way.
  5. Remove lower radiator crossmember support and position a jackstand under radiator for support.
  6. Loosen adjusting T-bolt, but do not remove.
  7. Loosen pivot bolt, but do not remove.
  8. Remove the generator drive belt. (Refer to GENERATOR/POWER STEERING BELT .)
  9. Disconnect the generator field circuit plug.
  10. Remove the B+ terminal nut and wire.
  11. Remove pivot bolt, being careful not to lose spacer.
  12. Remove generator.
