Diagnosis And Testing: Notes

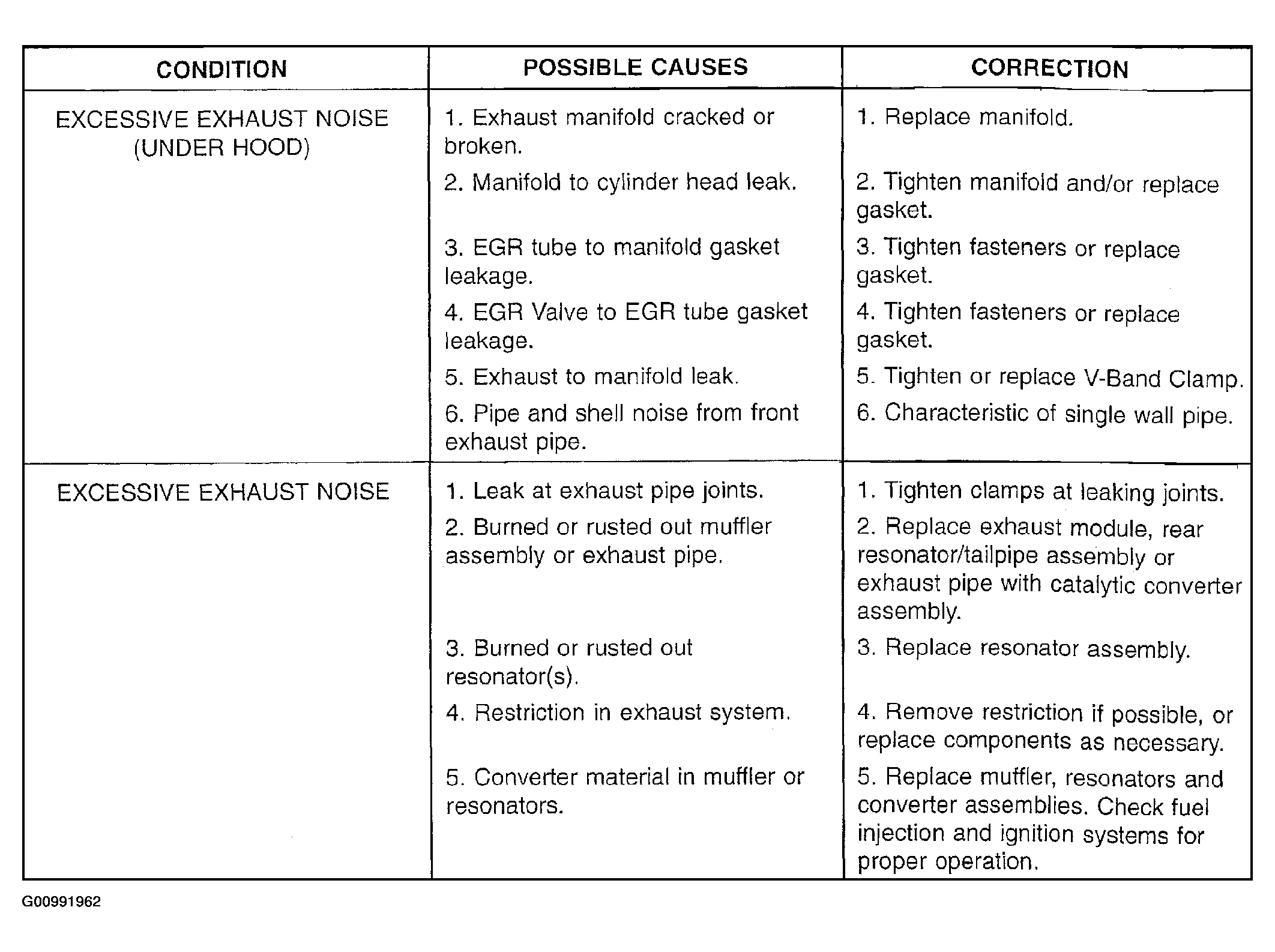

Fig 1: Identifying Exhaust System Diagnosis & Testing Chart
G00991962Courtesy of DAIMLERCHRYSLER CORP.
