Flex Plate: Removal

  1. Remove the transaxle. (Refer to 42LE AUTOMATIC TRANSAXLE )
  2. Remove flex plate attaching bolts.
  3. Remove the flex plate (Fig 1).

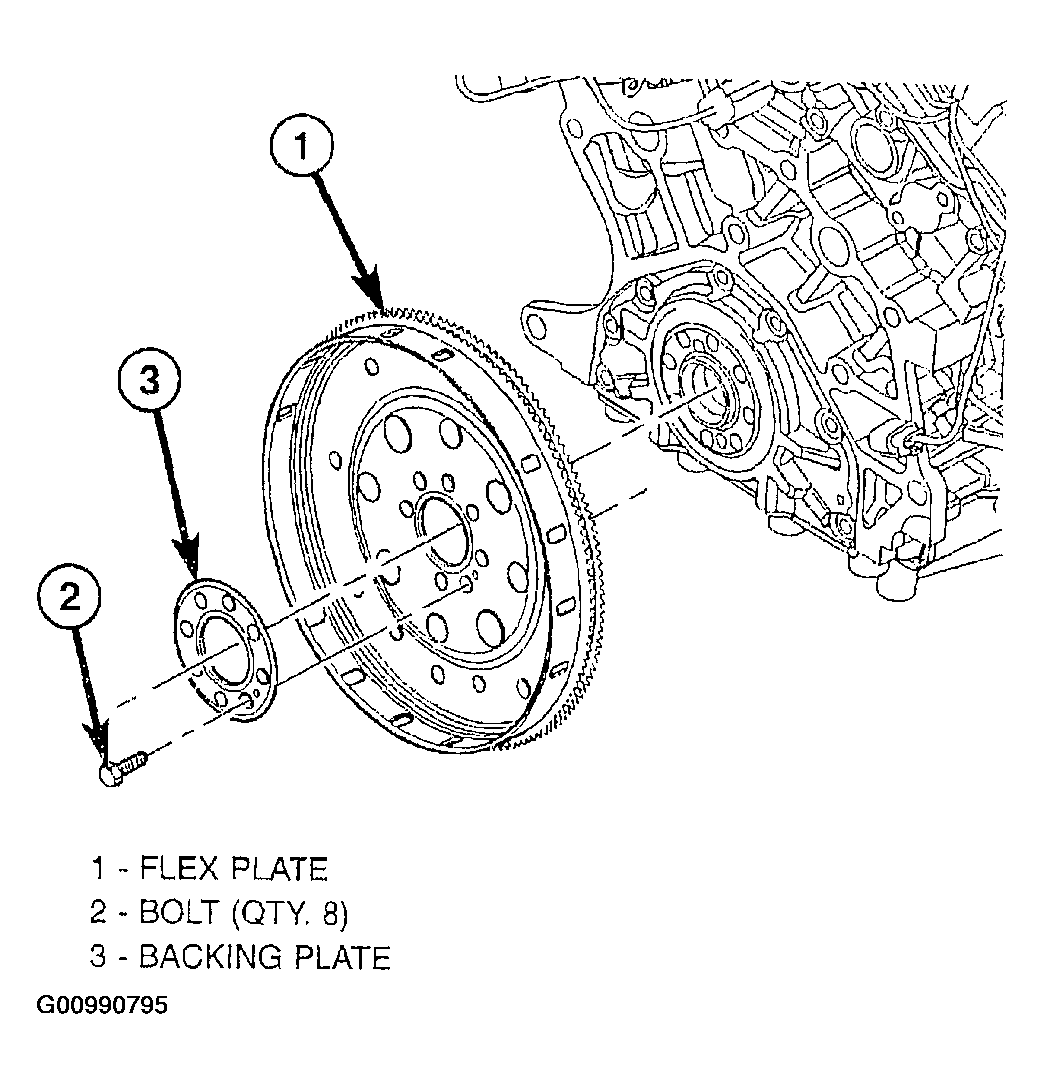

    Fig 1: Removing Flex Plate
    G00990795Courtesy of DAIMLERCHRYSLER CORP.
