Rocker Arms: Installation

  1. Lubricate rocker arms with clean engine oil before installation.
  2. Rotate engine until cam lobe is on its base circle (heel) of rocker arm being installed.

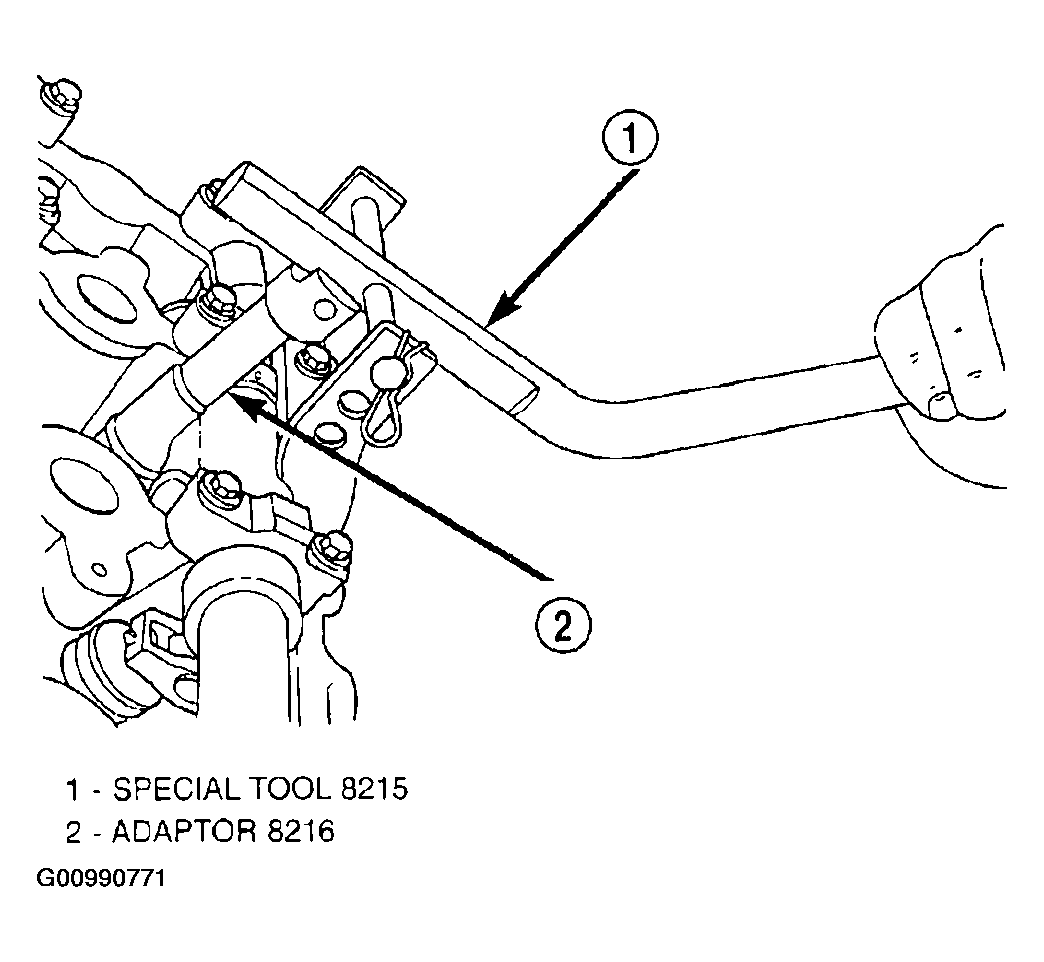

  3. Using Special Tools 8215 and 8216 Adaptor, depress valve spring only enough to install rocker arm (Figure).
  4. Install rocker arm in original position (if reused) over valve and lash adjuster. Release tension on valve spring.
    NOTE: Inspect rocker arm for proper engagement into lash adjuster and valve tip.
  5. Repeat procedure for each rocker arm installed.
  6. Install cylinder head cover(s). (Refer to CYLINDER HEAD COVER(S) )
