Vibration Damper: Installation

  1. Install damper using Special Tools 8179 Screw, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig 1).

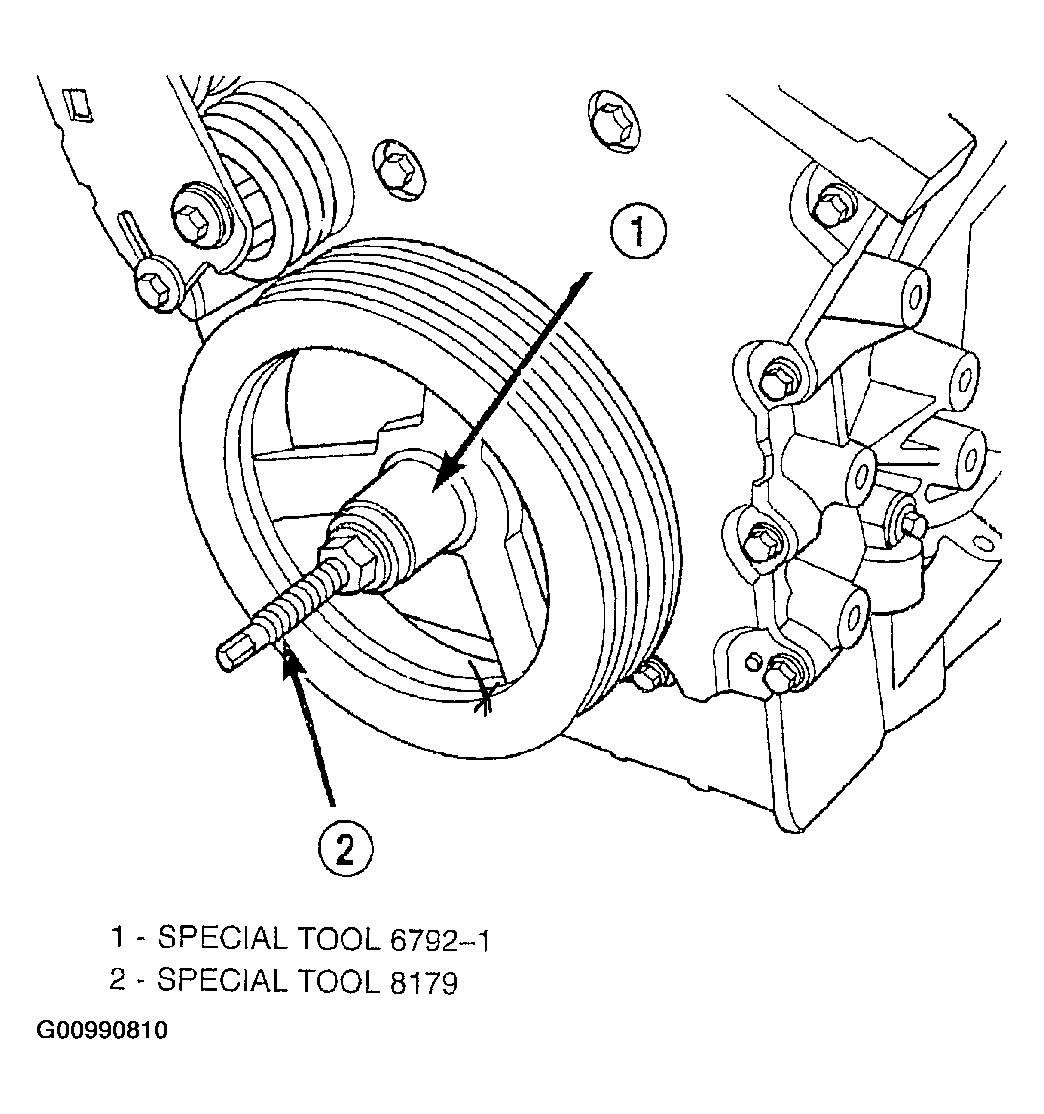

    Fig 1: Installing Vibration Damper
    G00990810Courtesy of DAIMLERCHRYSLER CORP.

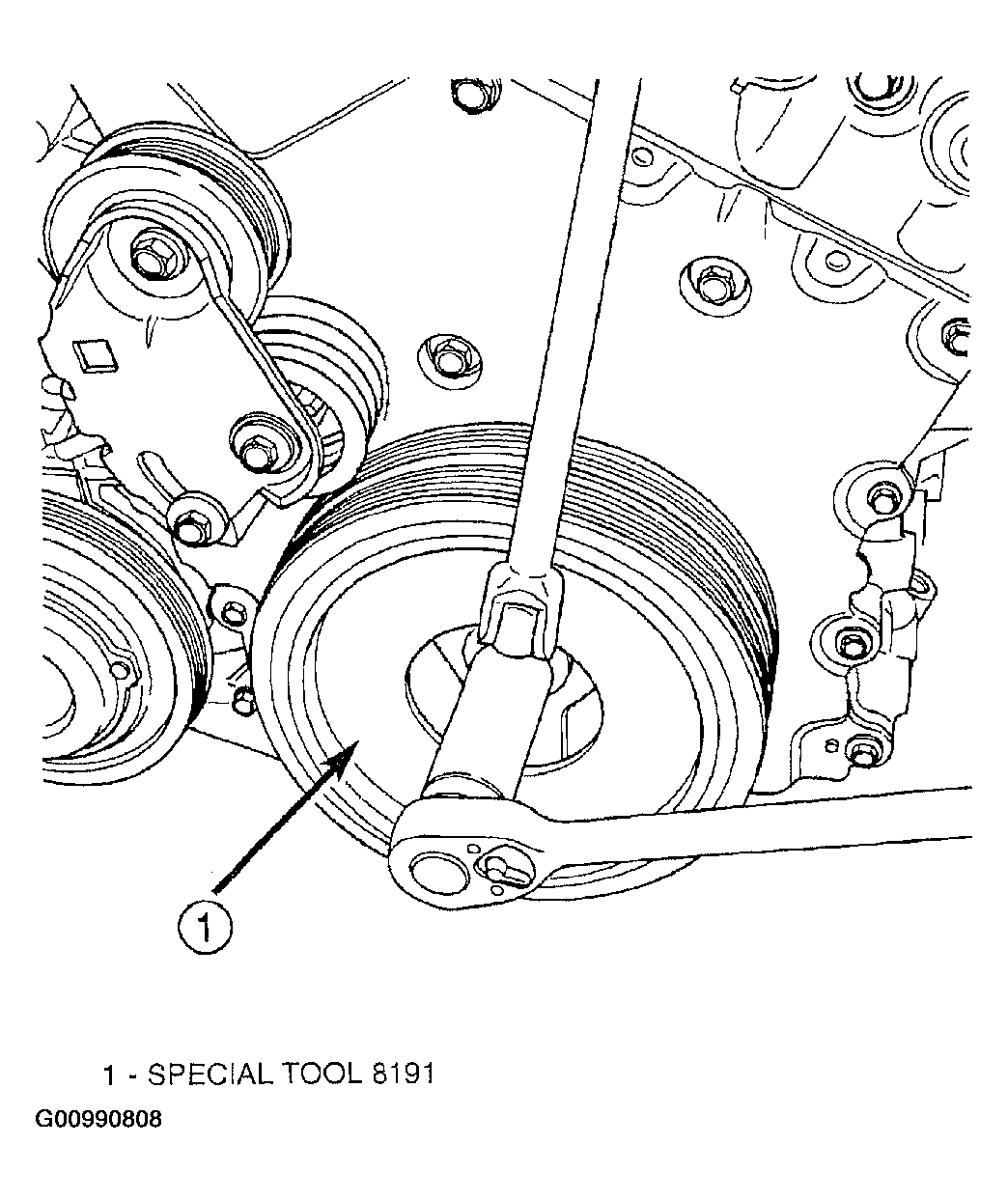

  2. Install damper center bolt. Tighten center bolt while holding the damper with Special Tool 8191 to 170 N.m (125 ft. lbs.) (Figure).
  3. Install accessory drive belts (Refer to DRIVE BELTS - 2.7L ) and radiator fan (Refer to RADIATOR FAN ASSEMBLY ).
  4. Install radiator upper crossmember. (Figure)
    1. Place in position the radiator upper crossmember.
    2. Connect hood latch cable to hood latch.
    3. Install bolts attaching upper radiator closure panel. Check bolt alignment marks.
    4. Install bolts attaching the forward edge of upper radiator closure panel.
    5. Install fasteners attaching the forward edge of radiator upper crossmember.
    6. Install fasteners attaching upper bumper fascia.
    7. Install fasteners attaching upper bumper fascia.
    8. Install headlamp jackscrews both sides.
    9. Check hood operation.
