Section 49 (Engine Cooling System): Radiator: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

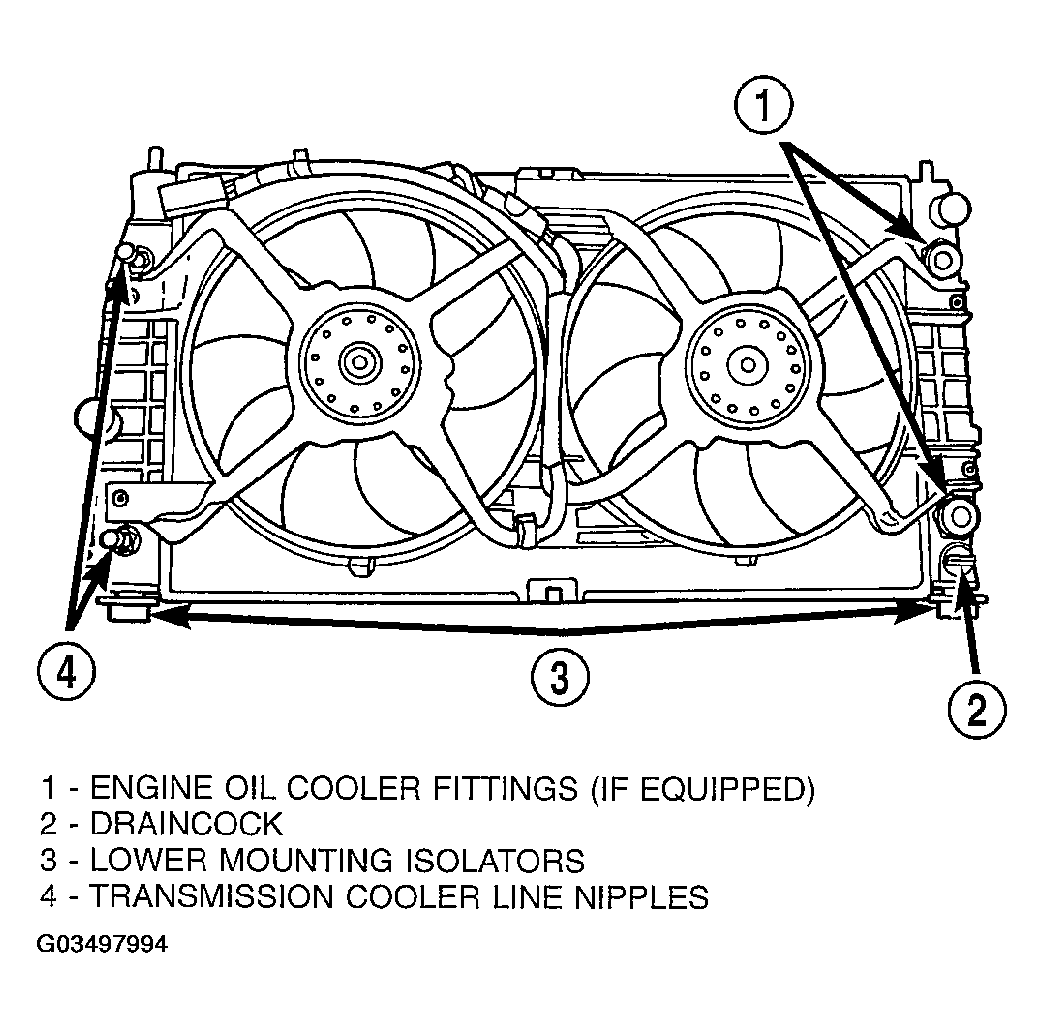

  1. Position radiator into engine compartment. Seat the radiator assembly lower rubber isolators into the mounting holes in radiator lower support (Figure).

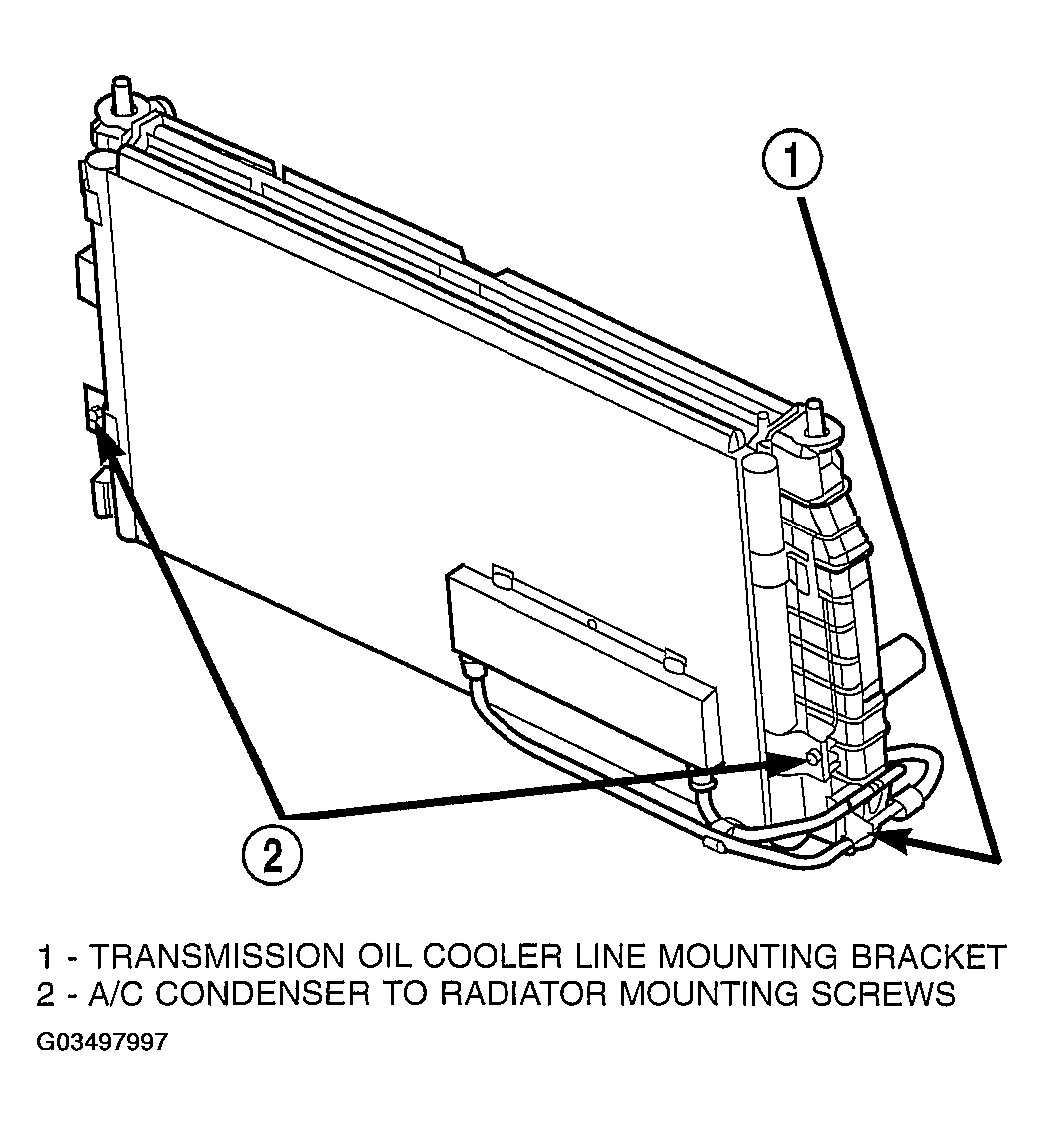

  2. Attach air conditioning condenser to, mounting clips on radiator. Install mounting screws and tighten to 5 N.m (45 in.lbs.) (Figure) or (Figure).
  3. Install the radiator lower hose and clamp.

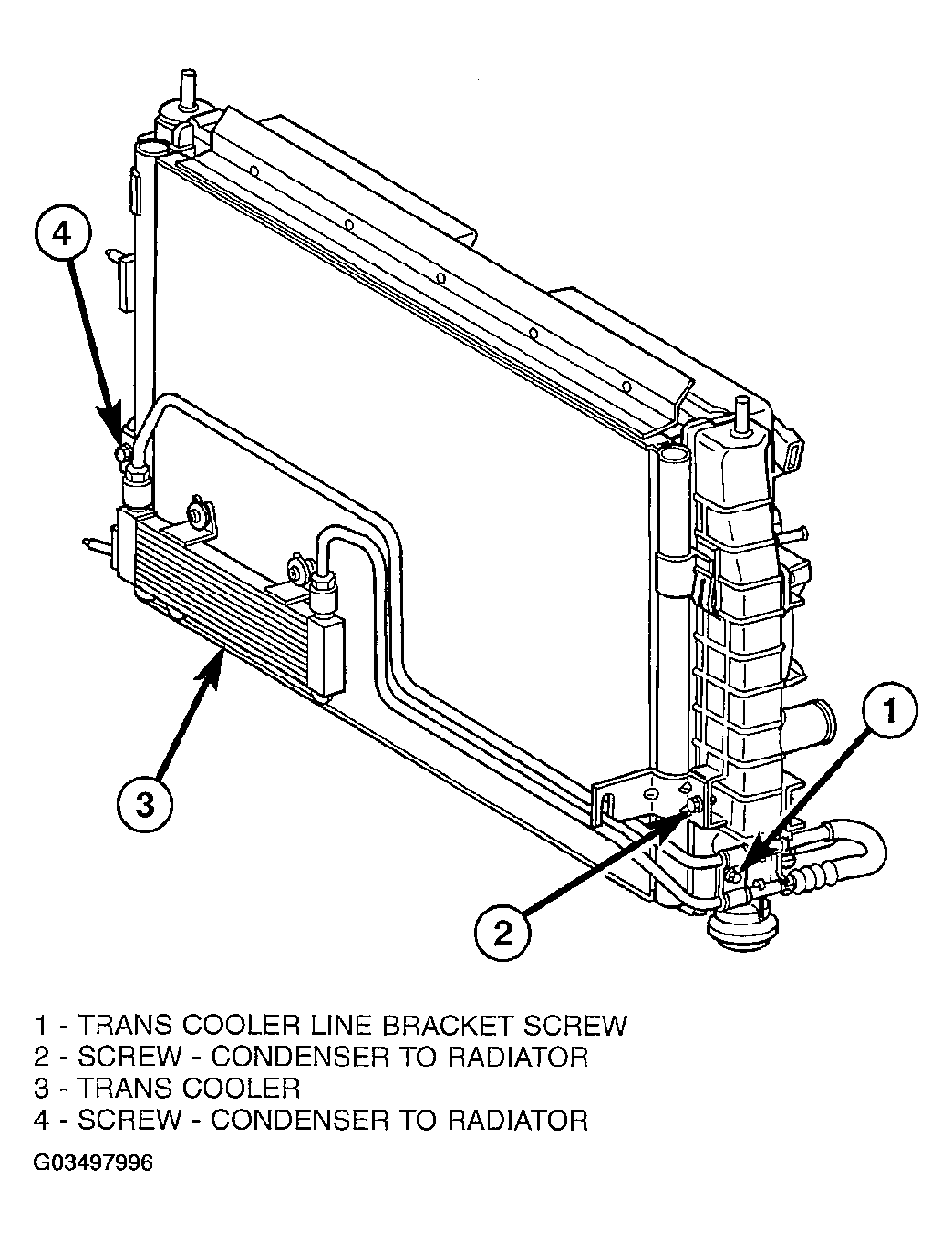

  4. Install the transmission cooler line bracket and attaching fastener (Figure) or (Figure). Connect automatic transmission hoses and torque hose clamps to 3 N.m (28 in.lbs.).
  5. Install the radiator fan. (Refer to RADIATOR FAN )
  6. Connect radiator fan motor electrical connector.
  7. Connect engine oil cooler lines (if equipped). Torque lines to 18 N.m (160 in.lbs.).
  8. Install the radiator upper hose. Align hose so it does not interfere with the accessory drive belt or engine. Position hose clamp so it will not interfere with the hood.
  9. Install the radiator upper support crossmember. (Refer to GRILLE OPENING REINFORCEMENT )
  10. Connect negative cable to remote jumper terminal.
  11. Fill cooling system with coolant. (Refer to STANDARD PROCEDURE )
  12. Operate engine until it reaches normal operating temperature. Check cooling system and automatic transmission for correct fluid levels.
