Radiator Fan: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install radiator fan.

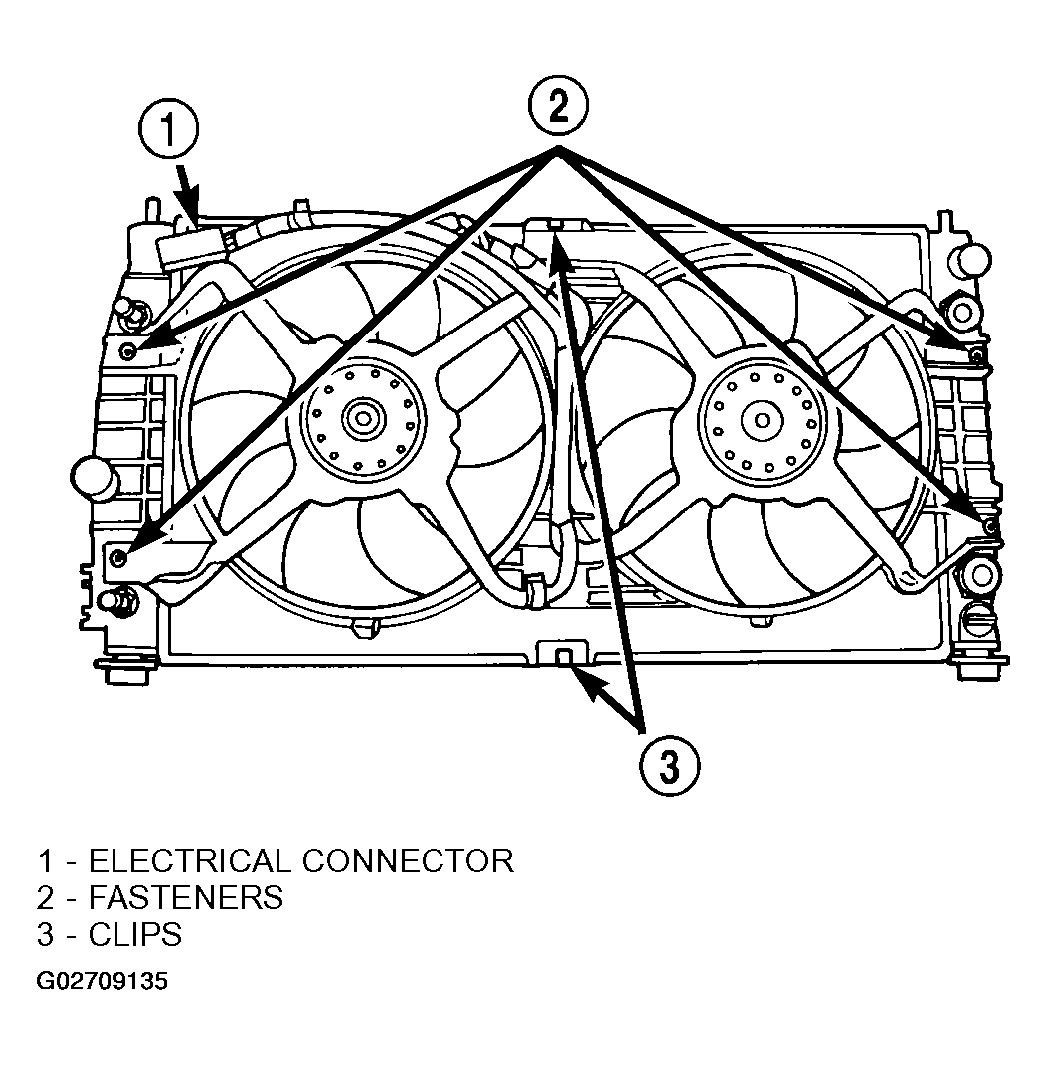

  2. Install upper clip and fasteners (Figure ).
  3. Connect upper radiator hose to radiator.
  4. Connect fan motor electrical connector (Figure ).
  5. Install radiator upper crossmember.
  6. Fill cooling system.
