Blower Motor Resistor Block Connector End View

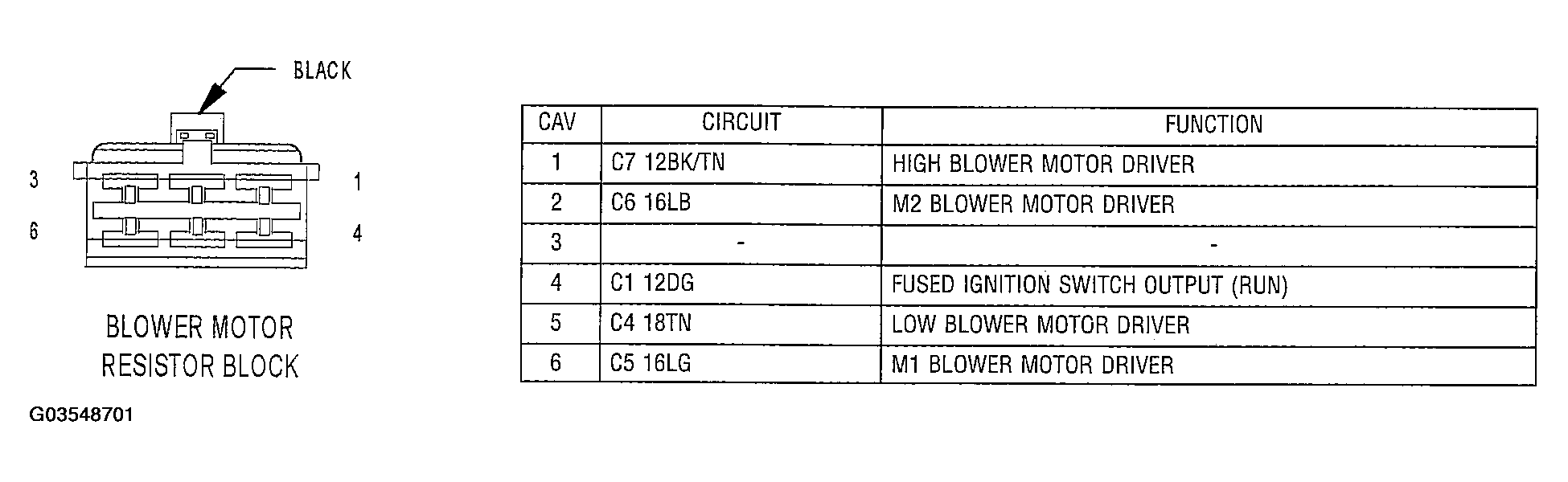

Fig 1: Blower Motor Resistor Block
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
