Brake Lamp Switch Connector End View

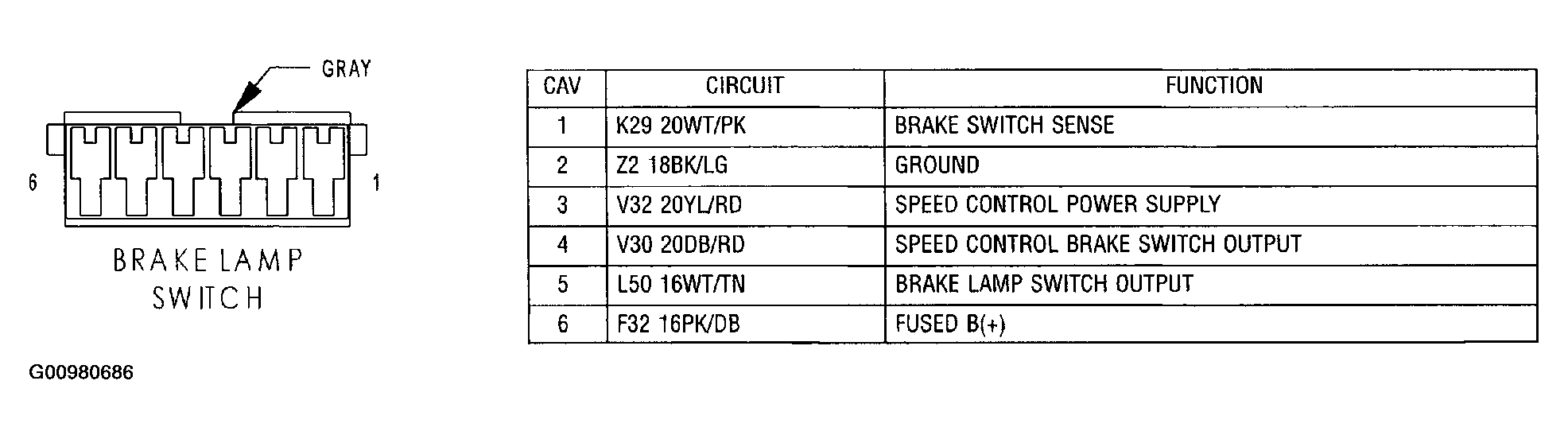

Fig 1: Brake Lamp Switch
G00980686Courtesy of CHRYSLER GROUP, LLC
