Driver Power Door Lock Switch Connector End View

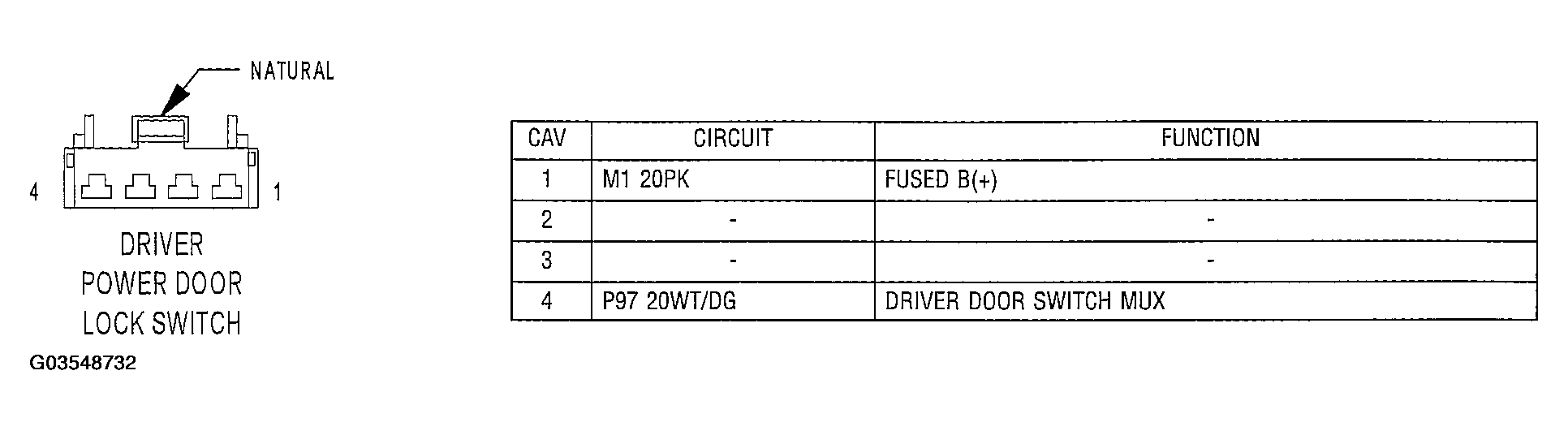

Fig 1: Driver Power Door Lock Switch
G03548732Courtesy of CHRYSLER GROUP, LLC


Fig 1: Driver Power Door Lock Switch Connector End View
G02705166Courtesy of CHRYSLER GROUP, LLC
