Right Remote Radio Switch Connector End View

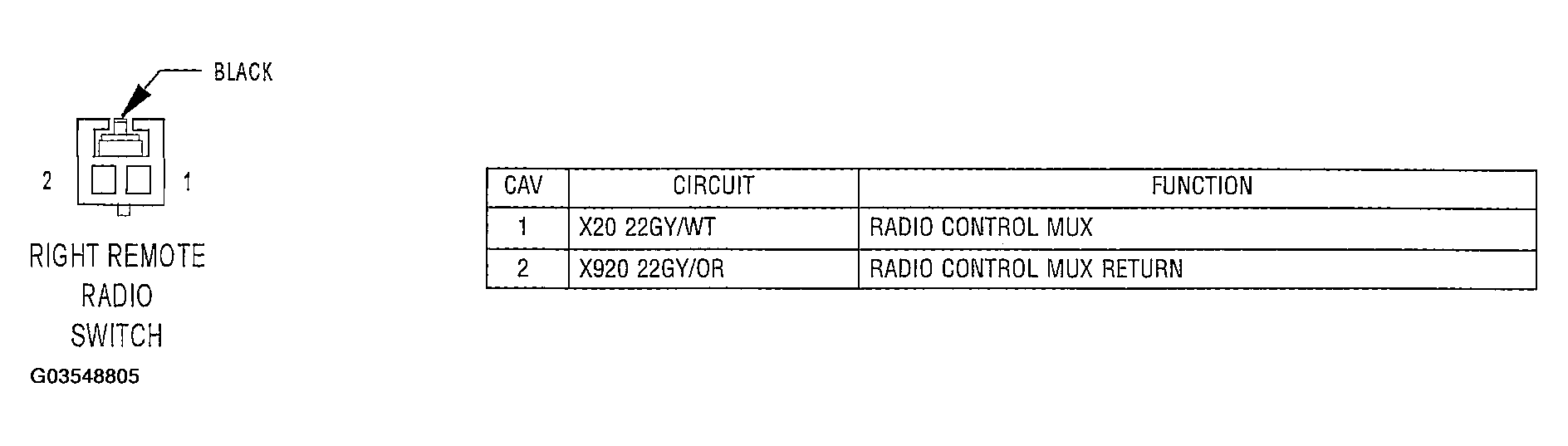

Fig 1: Right Remote Radio Switch
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
